Gigabyte R183-SF1 Server

The dual socket, 12-bay Gigabyte R183-SF1 server is powered by 4th or 5th generation Intel Xeon Scalable processors, including the Intel Xeon CPU Max Series. An 8-channel memory architecture on each CPU supports 32x DDR5 memory module slots with up to 8TB of memory when all slots are populated with 256GB 3DS RDIMMs. Using standard RDIMMs, the system will support a maximum of 3TB of RAM. Additionally, the 1U system supports 1x PCIe Gen5 x16 dual slot for an AMD, NVIDIA, XILINX, or Qualcomm GPU card.

Overview

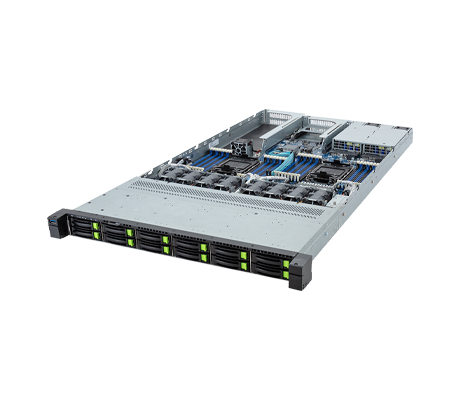

Gigabyte R183-SF1 Server - System Overview

This platform supports AI, AI Training, AI Inference, Visual Computing, and a number of other High-Performance Computing (HPC) applications. Supported processors deliver up to 64 cores each with a TDP of up to 225W at ambient 30°C, but a maximum TDP of 350W can also be supported under limited thermal conditions. In addition to the expansion slot for the single graphics card, the 1U Gigabyte R183-SF1 server offers 1 x FHFL PCIe Gen5 x16 slot and 1 x FHHL PCIe Gen5 x16 slot, plus 1 x OCP 3.0 Gen5 x16 slot. The back of the chassis also features 1x dedicated management port and a mini display port.

Dual 2000W 80 PLUS Titanium redundant power supplies can also be found on the back of the machine. On the front panel there are 12 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays, but a SAS card is required to support SAS devices. A single server or a small cluster can be managed and maintained using the GIGABYTE Management Console, which comes pre-installed on all servers.

Specifications

Gigabyte R183-SF1 Server - Specifications

Processor- 2 Sockets

5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
CPU TDP up to 225W at ambient 30°C
LGA 4677, Socket E

Motherboard

MSF3-GP0

Memory

32x DDR5 DIMM slots
8-Channel memory architecture

Memory Speed

5th Gen Intel® Xeon®: Up to *5600MHz (1DPC), 4400MHz (2DPC)
4th Gen Intel® Xeon®: Up to 4800MHz (1DPC), 4400MHz (2DPC)
Intel® Xeon® Max Series: Up to 4800MHz (1DPC), 4400MHz (2DPC)

DIMM Module Sizes

RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported

Drive Bays

12 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
(6 x NVMe from CPU_0, 6 x NVMe from CPU_1)

LAN

1 x 10/100/1000 management LAN

Video

Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

1 x TPM header
1 x VROC Connector

Front

1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x System status LED
1 x Bay status LED

Rear

2 x USB 3.2 Gen1
1 x Mini-DP
1 x MLAN
1 x ID LED

Backplane

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Expansion Slots

Riser Card CRS102B:

1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, for GPUs
1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, occupied when Dual slot GPU is installed

Riser Card CRS101U:

1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

Chassis

Height: 43.5 mm

Width: 438 mm

Depth: 815 mm

Power Supply

1+1 2000W 80 PLUS Titanium redundant power supplies

System Management

Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Documentation

Gigabyte R183-SF1 Server - Documentation

Gigabyte R183-SF1 Server Data Sheet Gigabyte R183-SF1 Server User Manual Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Easy BIOS Refresh User Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
