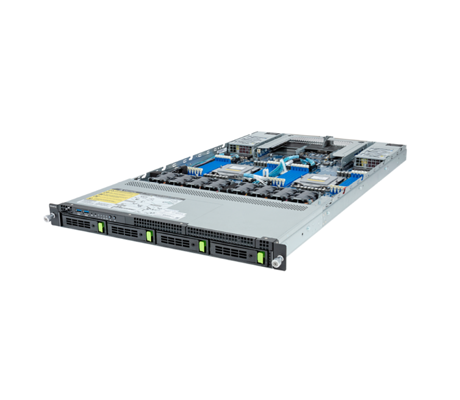

Gigabyte R183-Z90 Server - System Overview

Designed for networking and use as a hybrid/private cloud server, the system can support up to 6TB of DDR5 RDIMM memory modules. Memory speed is dependent on the installed CPUs with 4th gen CPUs providing speeds of up to 4800MHz. With 5th gen Intel Xeon Scalable CPUs, memory speeds of up to 6000MHz are possible. As a network appliance, the R183-Z90 system can ideally be used as a virtual server, an intranet host, or file storage server among other business critical workloads. There are a few SKUs on this platform with different storage options and different dual redundant power supplies.

Gigabyte R183-Z90 Server (rev. AAD1):

4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

Gigabyte R183-Z90 Server (rev. AAD2):

4 x 3.5/2.5" SATA/SAS hot-swappable bays

Specifications

Gigabyte R183-Z90 Server - Specifications

Processor - Dual-Sockets

AMD EPYC 9004 series processor- Rev. 1.x
AMD EPYC 9005 series processor- Rev. 3.x
Dual processor, cTDP up to 300W
12-channel memory architecture per processor
cTDP supported up to 400W under limited thermal conditions
2x LGA 6096
System on Chip
Motherboard: MZ93-FS0

Memory

24x DIMM slots
DDR5 memory supported only
12-Channel memory per processor architecture
3DS RDIMM modules up to 256GB supported

Rev. 1.x

AMD EPYC 9004:

Memory speed: Up to 4800 MHz

Rev. 3.x

AMD EPYC 9005:

Memory speed: Up to 6000 MT/s

Drive Bays

Front Hot-Swap:

Gigabyte R183-Z90 Server (AAD1):

4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

4 x 3.5/2.5" SATA/SAS hot-swappable bays

4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

4 x 3.5/2.5" SATA/SAS hot-swappable bays

4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

Internal M.2:

1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1

Power Supplies

1600W 80 PLUS Platinum

1600W 80 PLUS Platinum

1600W 80 PLUS Titanium

1600W 80 PLUS Titanium

1600W 80 PLUS Platinum

Fans

8 x 40x40x56mm (32,000rpm)

I/O

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LED
1 x Storage activity LED
1 x System status LED

Rear I/O

G-SCM board - CDCR114:

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

Backplane I/O

Backplane P/N: 9CBP1047NR-00
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

Riser Card CRS101T:

1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

Riser Card CRS101Q:

1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supported NCSI function

Dimensions

Documentation

Gigabyte R183-Z90 Server - Documentation

(Rev. 1.x - AAD1) Data Sheet (Rev. 3.x - AAD2) Data Sheet (Rev. 3.x - AAV1) Data Sheet (Rev. 3.x - LAD1) Data Sheet Gigabyte R183-Z90 Server User Manual Gigabyte R183-Z90 Server Qualified Vender List Gigabyte R183-Z90 Server OS Support List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide

Gigabyte R183-Z90 Server
