Gigabyte R183-Z91 Server

The Gigabyte R183-Z91 server has a dual-socket design supporting AMD EPYC 9004 series processors with up to 96 cores and 192 threads, each. In addition, the R183-Z91 server offers up to 24x memory module slots to accommodate up to 6TB of DDR5 memory when using 3DS RDIMM 256GB modules in all slots. This system also offers storage options including 4x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays and 4x 2.5" 9.5mm Gen4 NVMe/SATA/SAS hot-swappable bays.
Configure

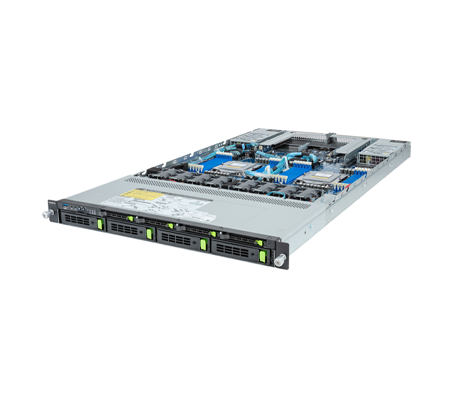

Gigabyte R183-Z91 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R183-Z91 Server - System Overview

The Gigabyte R183-Z91 is a strong and adaptable platform that provides exceptional performance and flexibility. It is a great option if you're performing mission-critical applications or require a server that can handle the demands of a rapidly expanding business. This platform enables administrators to manage the most complex workloads including use as a virtual server, an intranet host, and use for general file storage. There are two revisions of this chassis, with one supporting Gen4 NVMe. Both revisions offer 2x M.2 PCIe Gen3 x4 slots and one M.2 PCIe Gen3 x2 slot compatible with 2280 or 22110 form factors.



Gigabyte R183-Z91 Server (rev. AAD1):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm Gen4 NVMe/SATA/SAS hot-swappable bays

Gigabyte R183-Z91 Server (rev. AAD2):
  • 4 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm SATA/SAS hot-swappable bays

Gigabyte R183-Z91 server front Gigabyte R183-Z91 server front

Gigabyte R183-Z91 Server - Specifications

Processor - Dual-Sockets

  • AMD EPYC™ 9004 series processor family
  • Dual processors, 5nm technology
  • Up to 96-core, 192 threads per processor
  • cTDP up to 300W
  • Supports CPU 400W, OCP 3.0 ≦21W at ambient 30°C
  • 2x LGA 6096, Socket SP5
  • System on Chip

Memory

  • 24x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

    Gigabyte R183-Z91 (rev. AAD1):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm Gen4 NVMe/SATA/SAS hot-swappable bays

    • Gigabyte R183-Z91 (rev. AAD2):
  • 4 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" 9.5mm SATA/SAS hot-swappable bays

    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Fans

  • 8 x 40x40x56mm (32,000rpm)

I/O

    Internal I/O

  • 3 x M.2 Slots
  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots PCIe 5 x16

    • Front I/O

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: 9CBP1045NR-00 and 9CBP1047NR-00
  • SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Riser Card CRS101T:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

    • Riser Card CRS101Q:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1
  • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
  • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
  • Supported NCSI function

    • 1x M.2 slot:

  • M-Key
  • PCIe Gen3 x4 from CPU_0
  • Supports 2280/22110 cards

    • 1x M.2 slot:

  • M-Key
  • PCIe Gen3 x2 from CPU_1
  • Supports 2280/22110 cards

    • 1x M.2 slot:

  • M-Key
  • PCIe Gen3 x2 from CPU_1
  • Supports 2280/22110 cards

Dimensions

    Height: 43.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")

Gigabyte R183-Z91 Server - Documentation

Gigabyte R183-Z91 Server User Manual Gigabyte R183-Z91 Server Qualified Vender List Gigabyte R183-Z91 Server OS Support List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide (Rev. AAD1) Data Sheet (Rev. AAD2) Data Sheet
