Gigabyte R183-Z92 Server

The dual-socket Gigabyte R183-Z92 server offers PCIe 5.0 lanes, 12x DDR5 memory channels, and Compute Express Link capabilities all supported by the 5nm AMD EPYC 9004 series processors. The CPUs support up to 96 cores and 300W each, plus 24x memory module slots with up to 6TB of DDR5 memory. The system has several storage options including 3x M.2 PCIe Gen3 x2 cards with support for 2280 or 22110 cards inside the chassis. On the front panel, there are 12x 2.5” Gen4 NVMe, SATA, or SAS hot-swappable bays, depending on the chassis revision.
Configure

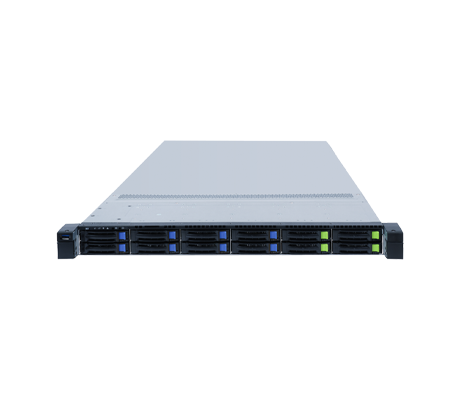

Gigabyte R183-Z92 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R183-Z92 Server - System Overview

Powered by dual 1600W 80 PLUS Platinum PSUs, the Gigabyte R183-Z92 Server is built for networking applications. This platform has 3 revisions with slight storage differences.



Gigabyte R183-Z92 Server (rev. AAD1):
  • 12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

Gigabyte R183-Z92 Server (rev. AAD2):
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 2.5" SATA/SAS hot-swappable bays

    • Gigabyte R183-Z92 Server (rev. AAD3):
  • 12 x 2.5" SATA/SAS hot-swappable bays

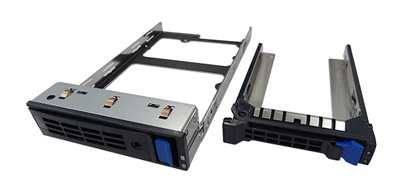

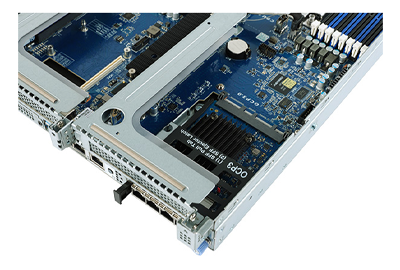

Gigabyte R183-Z92 server drive cages Gigabyte R183-Z92 server OCP 3.0

Gigabyte R183-Z92 Server - Specifications

Processor - Dual-Sockets

  • AMD EPYC™ 9004 series processor family
  • Dual processors, 5nm technology
  • Up to 96-core, 192 threads per processor
  • cTDP up to 300W
  • Supports CPU 400W, OCP 3.0 ≦21W at ambient 30°C
  • 2x LGA 6096
  • System on Chip

Memory

  • 24x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

    Gigabyte R183-Z92 (rev. AAD1):
  • 12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

    • Gigabyte R183-Z92 (rev. AAD2):
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 2.5" SATA/SAS hot-swappable bays

    • Gigabyte R183-Z92 (rev. AAD3):
  • 12 x 2.5" SATA/SAS hot-swappable bays

    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Fans

  • 8 x 40x40x56mm (32,000rpm)

I/O

    Internal I/O

  • 3 x M.2 Slots
  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: 9CBP10C0NR-00
  • PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Riser Card CRS101T:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

    • Riser Card CRS101Q:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1
  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • (1 x from CPU_0 and 1 x from CPU_1)
  • Supported NCSI function

    • 1x M.2 slot:

  • M-Key
  • PCIe Gen3 x4 from CPU_0
  • Supports 2280/22110 cards

    • 1x M.2 slot:

  • M-Key
  • PCIe Gen3 x2 from CPU_1
  • Supports 2280/22110 cards

    • 1x M.2 slot:

  • M-Key
  • PCIe Gen3 x2 from CPU_1
  • Supports 2280/22110 cards

Dimensions

    Height: 43.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")
