Gigabyte R183-Z93 Server

Ideal for virtual servers and file access across VPNs in networking applications, the AMD EPYC-powered Gigabyte R183-Z93 server has two sockets that can accommodate AMD EPYC 9004 or 9005 series processors, including those with 3D V-Cache Technology. Up to 6TB of memory can be installed using 3DS RDIMMs/LRDIMMs, or up to 2TB with conventional RDIMMs or LRDIMMs. The 1U platform has 3x M.2 slots with a PCIe 3.0 x4 interface and support for 2280/22110 cards. 4x 2.5” or 3.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays on the front panel provide fast, secure storage.
Configure

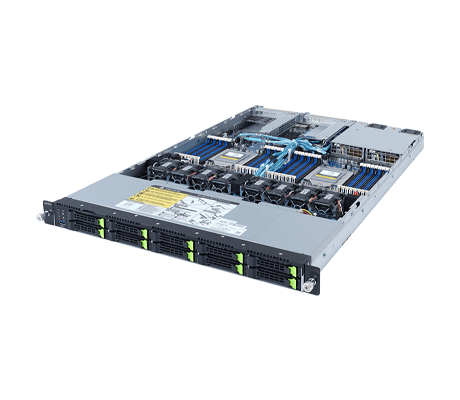

Gigabyte R183-Z93 Server side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R183-Z93 Server - System Overview

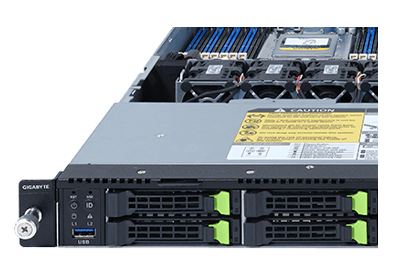

Gigabyte R183-Z93 front CPUs with up to 192 cores and 384 threads apiece can be installed. The system will support a configurable TDP of up to 300W at ambient 35°C, and a maximum TDP of 400W under certain conditions. Each CPU has an 12-channel memory architecture that can accommodate 12x memory module slots, or 24x DDR5 DIMMs in total. Gigabyte R183-Z93 rear

The system offers 2x PCIe x16 (Gen5 x16) FHHL slots in addition to the M.2 slots on the motherboard. It also supports dual OCP 3.0 slots with PCIe Gen5 x16 bandwidth. An optional GRAID SupremeRAID controller card is compatible for supporting NVMe or NVMe over Fabric in a RAID There are 2x iterations of this model, each with a different power supply.


Rev. AAD1 (Rev. 3.x)

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Rev. AAV1 (Rev. 1.x)

  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Rev. LAJ1 (Rev. 3.x)

  • Dual 2000W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R183-Z93 Server - Specifications

Processor- 2 Sockets

  • AMD EPYC 9005 Series Processors
  • AMD EPYC 9004 Series Processors
  • Up to 192 cores, 384 threads per processor
  • cTDP up to 300W
*cTDP supported up to 400W under limited thermal conditions.
*Supports EPYC 9654 cTDP 400W, OCP3.0 ≦ 21W at ambient 30°C.

Motherboard

  • MZ93-FS1

Memory

    Memory Slots

  • 24x DDR5 DIMM slots
  • 12-Channel memory architecture

    • Memory Speed

  • Up to 4800 MHz

    • DIMM Module Sizes

  • RDIMM modules up to 96GB supported
  • 3DS RDIMM modules up to 256GB supported

Drive Bays

  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
  • (NVMe from CPU_1, SATA from CPU_0)

LAN

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp

Input / Output

    Internal

  • 3 x M.2 slot
  • 1 x TPM header
  • 2 x OCP 3.0 Slots

    • Front

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LEDs
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID LED

    • Backplane

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    PCIe Cable x 2:

  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

  • 1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
  • Supports NCSI function

  • 1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_1
  • Supports NCSI function

  • 1 x M.2 Slot
  • PCIe Gen3 x4, from CPU_0
  • Supports 2280/22110 cards

  • 1 x M.2 Slot
  • PCIe Gen3 x4, from CPU_1
  • Supports 2280/22110 cards

  • 1 x M.2 Slot
  • PCIe Gen3 x2, from CPU_1
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 43.5 mm

    Width: 438 mm

    Depth: 815 mm

Power Supply

    Rev. AAD1 (Rev. 3.x)

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

    • Rev. AAV1 (Rev. 1.x)

  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

    • Rev. LAJ1 (Rev. 3.x)

  • Dual 2000W (240V) 80 PLUS Platinum redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte R183-Z93 Server - Documentation

Gigabyte R183-Z93 Server Data Sheet Gigabyte R183-Z93 Server User Manual Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Easy BIOS Refresh User Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
