Gigabyte R183-Z93 Server

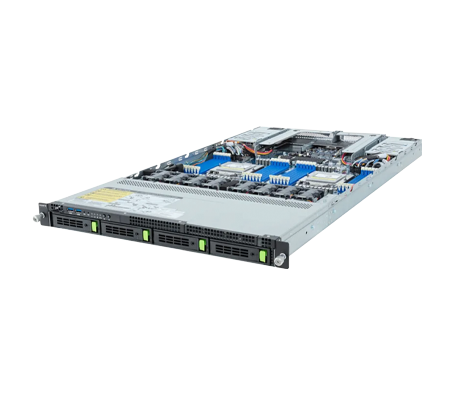

Ideal for virtual servers and file access across VPNs in networking applications, the AMD EPYC-powered Gigabyte R183-Z93 server has two sockets that can accommodate AMD EPYC 9004 or 9005 series processors, including those with 3D V-Cache Technology. Up to 6TB of memory can be installed using 3DS RDIMMs/LRDIMMs, or up to 2TB with conventional RDIMMs or LRDIMMs. The 1U platform has 3x M.2 slots with a PCIe 3.0 x4 interface and support for 2280/22110 cards. 4x 2.5” or 3.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays on the front panel provide fast, secure storage.

Overview

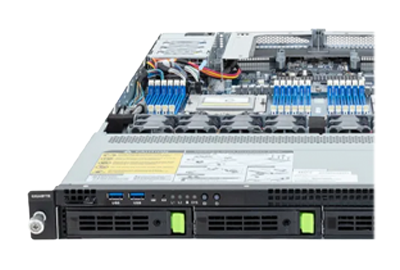

Gigabyte R183-Z93 Server - System Overview

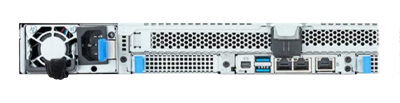

CPUs with up to 192 cores and 384 threads apiece can be installed. The system will support a configurable TDP of up to 300W at ambient 35°C, and a maximum TDP of 400W under certain conditions. Each CPU has an 12-channel memory architecture that can accommodate 12x memory module slots, or 24x DDR5 DIMMs in total. Gigabyte R183-Z93 rear

The system offers 2x PCIe x16 (Gen5 x16) FHHL slots in addition to the M.2 slots on the motherboard. It also supports dual OCP 3.0 slots with PCIe Gen5 x16 bandwidth. An optional GRAID SupremeRAID controller card is compatible for supporting NVMe or NVMe over Fabric in a RAID. There are 2x iterations of this model, each with a different power supply.

Rev. AAD1 (Rev. 3.x)

Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Rev. AAV1 (Rev. 1.x)

Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Rev. LAJ1 (Rev. 3.x)

Dual 2000W (240V) 80 PLUS Platinum redundant power supply

Specifications

Gigabyte R183-Z93 Server - Specifications

Processor- 2 Sockets

AMD EPYC 9005 Series Processors
AMD EPYC 9004 Series Processors
Up to 192 cores, 384 threads per processor
cTDP up to 300W

*cTDP supported up to 400W under limited thermal conditions.
*Supports EPYC 9654 cTDP 400W, OCP3.0 ≦ 21W at ambient 30°C.

Motherboard

MZ93-FS1

Memory

Memory Slots

24x DDR5 DIMM slots
12-Channel memory architecture

Memory Speed

Up to 4800 MHz

DIMM Module Sizes

RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported

Drive Bays

4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
(NVMe from CPU_1, SATA from CPU_0)

LAN

2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp

Input / Output

Internal

3 x M.2 slot
1 x TPM header
2 x OCP 3.0 Slots

Front

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

Rear

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

Backplane

Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Expansion Slots

PCIe Cable x 2:

1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_1
Supports NCSI function

1 x M.2 Slot
PCIe Gen3 x4, from CPU_0
Supports 2280/22110 cards

1 x M.2 Slot
PCIe Gen3 x4, from CPU_1
Supports 2280/22110 cards

1 x M.2 Slot
PCIe Gen3 x2, from CPU_1
Supports 2280/22110 cards

Chassis

Enclosure

Height: 43.5 mm

Width: 438 mm

Depth: 815 mm
