Gigabyte R183-Z94 Server

The Gigabyte R183-Z94 server features dual sockets for AMD EPYC 9004 or 9005 series processors. Each CPU delivers a 12-channel memory architecture for a maximum memory of up to 6TB. This 1U platform holds 12x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays on the front of the server, plus 3x internal M.2 slots. It’s ideal for networking applications like accessing files via VPN and as a virtual server.
Configure

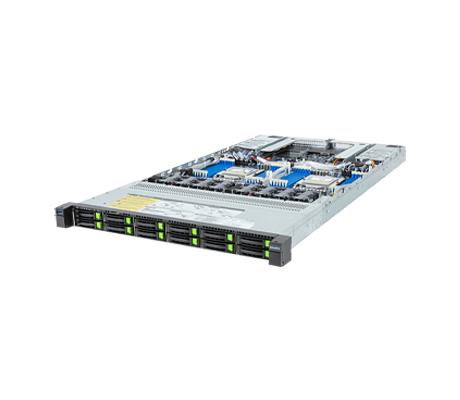

Gigabyte R183-Z94 Server side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R183-Z94 Server - System Overview

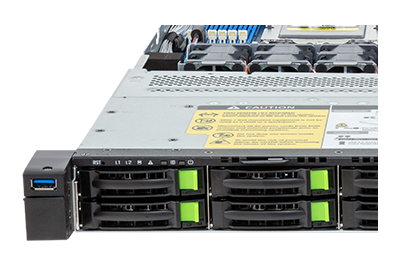

Gigabyte R183-Z94 front

Processors with up to 192 cores and 384 threads and a configurable TDP of up to 300W at ambient 35°C are supported. However, under limited thermal conditions those with a TDP of up to 400W can be installed. 12x memory module slots per CPU provide a total of 24x DDR5 DIMM slots.

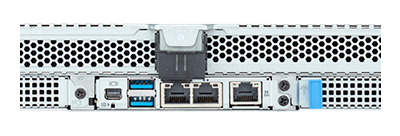

Gigabyte R183-Z94 rear

To manage the Gigabyte R183-Z94 Server, administrators can deploy a free-of-charge management application that comes pre-installed on every machine. The Gigabyte Management Console can monitor and control a single server or a small cluster. For large clusters or groups of servers, Gigabyte offers Gigabyte Server Manager or GSM. In addition to the 3x M.2 slots on the motherboard, the system supports 2x PCIe x16 (Gen5 x16) FHHL slots and 2x OCP 3.0 mezzanine slots with a PCIe Gen5 x16 bandwidth. This model has 4x revisions with different storage and power supply configurations. Rev. AAD1

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply
  • 12 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays

Rev. AAD2
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply
  • 4 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
  • 8 x 2.5" SATA/SAS4 hot-swappable bays

Rev. AAV1
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply
  • 12 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays

Rev. AAV2
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply
  • 4 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
  • 8 x 2.5" SATA/SAS4 hot-swappable bays

*If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Gigabyte R183-Z94 Server - Specifications

Processor- 2 Sockets

  • Dual AMD EPYC 9004 Series Processors
  • Dual AMD EPYC 9005 Series Processors
  • Up to 192 cores, 384 threads per processor
  • cTDP up to 300W
  • Supports EPYC 9654 cTDP 400W, OCP3.0 ≦ 21W at ambient 30°C.
  • LGA 6096 (Socket SP5)
*cTDP supported up to 400W under limited thermal conditions.

Motherboard

  • MZ93-FS1

Memory

    Memory Slots

  • 24x DDR5 DIMM slots
  • 12-Channel memory architecture

    • Memory Speed

  • Up to 4800 MHz

    • DIMM Module Sizes

  • RDIMM modules up to 96GB supported
  • 3DS RDIMM modules up to 256GB supported

Drive Bays

  • 12 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays

    • *(4 x NVMe from CPU_0, 8 x NVMe from CPU_1)
    *SAS card is required for SAS devices support

LAN

  • 2 x 10GbE LAN ports (1 x Intel I350-AM2)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 3 x M.2 slot
  • 1 x TPM header
  • 2 x OCP 3.0 slots PCIe Gen5 x16

    • Front

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 2 x LAN activity LEDs
  • 1 x System status LED
  • 1 x HDD activity LED

    • Rear

  • 1 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID LED

    • Backplane

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

  • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
  • Supports NCSI function

  • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
  • Supports NCSI function

  • 1 x M.2 slot: PCIe Gen3 x4, from CPU_0
  • Supports 2280/22110 cards

  • 1 x M.2 slot: PCIe Gen3 x4, from CPU_1
  • Supports 2280/22110 cards

  • 1 x M.2 slot: PCIe Gen3 x2, from CPU_1
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 43.5 mm

    Width: 448 mm

    Depth: 815 mm

Power Supply

    Rev. AAD1
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

    • Rev. AAD2
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

    • Rev. AAV1
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

    • Rev. AAV2
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte R183-Z94 Server - Documentation

Gigabyte R183-Z94 Server Data Sheet Gigabyte R183-Z94 Server User Manual Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Easy BIOS Refresh User Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
