Gigabyte R183-Z95 Server

With its dense form factor, the 1U, dual-socket Gigabyte R183-Z95 server is equipped with AMD’s EPYC 9004 or 9005 series processors with up to 192 cores and a TDP of 300W each. The 4nm 'Zen 5' architecture supports PCIe 5.0 lanes, 12x DDR5 memory channels, and Compute Express Link support. There are 8x 2.5" Gen5 NVMe/SATA hot-swappable drive bays that are horizontally situated on the front panel, as well as 6x EDSFF E1.S 9.5mm hot-swappable bays that are vertically aligned to the others. Under the hood, the system features 3x M.2 PCIe Gen3 x2 with slots with support for 2280 or 22110 cards. Additionally, there are 24x DIMM slots on the motherboard with support for up to 6TB of DDR5 memory. Overall, the R183-Z95 server is an ideal choice for organizations looking for a powerful and scalable server solution.
Configure

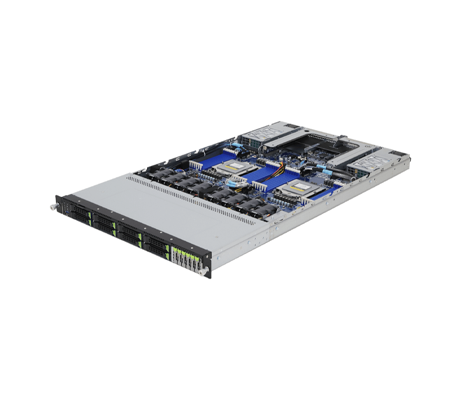

Gigabyte R183-Z95 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R183-Z95 Server - System Overview

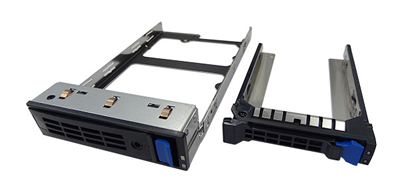

Gigabyte R183-Z95 server drive cagesGigabyte R183-Z95 server OCP 3.0

Gigabyte R183-Z95 Server - Specifications

Processor - Dual-Sockets

  • AMD EPYC 9005 series processor family
  • AMD EPYC 9004 series processor family
  • Dual processors, 4nm technology
  • Up to 192 cores, 384 threads per processor
  • cTDP up to 300W
  • Supports CPU 400W, OCP 3.0 ≦21W at ambient 30°C
  • 2x LGA 6096
  • System on Chip

Memory

  • 24x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

  • 8 x 2.5" Gen5 NVMe/SATA hot-swappable bays
  • 6 x EDSFF E1.S 9.5mm hot-swappable bays
    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Fans

  • 8 x 40x40x56mm (32,000rpm)

I/O

    Internal I/O

  • 3 x M.2 Slots
  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: TBD-00
  • PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s or EDSFF 32Gb/s

Expansion Slots

  • 2 x PCIe x16 slots (Gen5 x16)
  • (1 x from CPU_0 and 1 x from CPU_1)
  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • (1 x from CPU_0 and 1 x from CPU_1)
  • Supported NCSI function

    • 1x M.2 slot:

  • M-Key
  • PCIe Gen3 x4 from CPU_0
  • Supports 2280/22110 cards

    • 1x M.2 slot:

  • M-Key
  • PCIe Gen3 x2 from CPU_1
  • Supports 2280/22110 cards

    • 1x M.2 slot:

  • M-Key
  • PCIe Gen3 x2 from CPU_1
  • Supports 2280/22110 cards

Dimensions

    Height: 43.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")

Gigabyte R183-Z95 Server - Documentation

Gigabyte R183-Z95 Server Data Sheet Gigabyte R183-Z95 Server User Manual Gigabyte R183-Z95 Server OS Support List
