Gigabyte R183-Z96 Server

Offering a 12-channel memory architecture, the Gigabyte R183-Z96 server houses dual AMD EPYC 9004 or 9005 series processors. The front of the system delivers 4x 3.5” Gen5 NVMe/SATA/SAS4 hot-swappable bays and 4x 2.5" 9.5mm Gen5 NVMe/SATA/SAS4 hot-swappable bays. Each processor supports 12x DIMMs for a total of 24x DDR5 memory module slots with a maximum memory of up to 6TB when 256GB 3DS RDIMMs are inserted, as opposed to 2TB with standard 96GB RDIMMs.
Configure

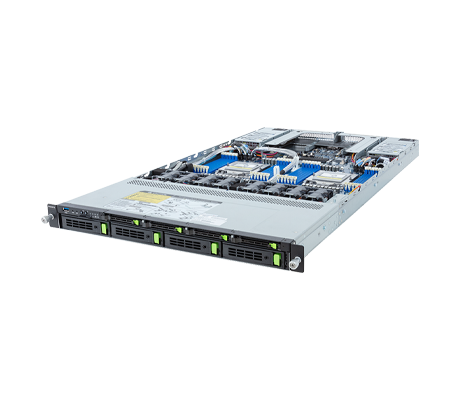

Gigabyte R183-Z96 Server side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R183-Z96 Server - System Overview

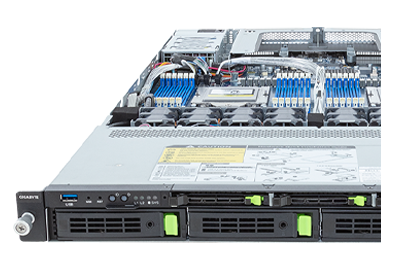

Gigabyte R183-Z96 front

CPUs with up to 192 cores and 384 threads per processor are supported. Those with a maximum TDP of up to 300W at an ambient temperature 35°C can be installed, but under limited thermal conditions CPUs with a TDP of up to 400W are supported. Built for networking applications such as file storage, file access via VPN, and a virtual server, the Gigabyte R183-Z96 server supports 3x M.2 slots with 2x having a PCIe Gen3 x4 form factor and 1x supporting PCIe Gen3 x2. All slots support 2280 or 22110 cards.

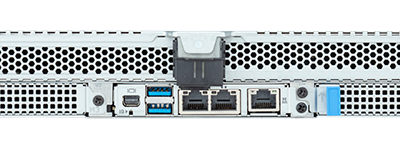

Gigabyte R183-Z96 rear

In addition, the platform features 2x PCIe x16 (Gen5 x16) FHHL slots and 2x OCP 3.0 mezzanine card slots with a PCIe Gen5 x16 bandwidth. Providing power are dual, redundant 1600W 80 PLUS Platinum PSUs. 2x integrated GbE RJ45 ports provide basic network functions along with an integrated GbE management LAN port for remote management of the system. This model has 2x revisions with different power supply configurations. Rev. AAD1

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Rev. AAV1
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

Gigabyte R183-Z96 Server - Specifications

Processor- 2 Sockets

  • Dual AMD EPYC 9005 Series Processors
  • Dual AMD EPYC 9004 Series Processors
  • Up to 192 cores, 384 threads per processor
  • cTDP up to 300W at ambient 35°C
  • Supports EPYC 9654 cTDP 400W, OCP3.0 ≦ 21W at ambient 30°C.
  • LGA 6096 Socket SP5
*cTDP supported up to 400W under limited thermal conditions.

Motherboard

  • MZ93-FS1

Memory

    Memory Slots

  • 24x DDR5 DIMM slots
  • 12-Channel memory architecture

    • Memory Speed

  • Up to 4800 MHz

    • DIMM Module Sizes

  • RDIMM modules up to 96GB supported
  • 3DS RDIMM modules up to 256GB supported

Drive Bays

  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
  • 4 x 2.5" 9.5mm Gen5 NVMe/SATA/SAS4 hot-swappable bays

    • * (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
    * SAS card is required for SAS devices support

LAN

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 3 x M.2 slot
  • 1 x TPM header
  • 2 x OCP 3.0 slots PCIe Gen5 x16

    • Front

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 2 x LAN activity LEDs
  • 1 x System status LED
  • 1 x HDD activity LED

    • Rear

  • 1 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID LED

    • Backplane

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

  • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
  • Supports NCSI function

  • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
  • Supports NCSI function

  • 1 x M.2 slot: PCIe Gen3 x4, from CPU_0
  • Supports 2280/22110 cards

  • 1 x M.2 slot: PCIe Gen3 x4, from CPU_1
  • Supports 2280/22110 cards

  • 1 x M.2 slot: PCIe Gen3 x2, from CPU_1
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 43.5 mm

    Width: 448 mm

    Depth: 815 mm

Power Supply

  • Rev. AAD1: Dual 1600W (240V) 80 PLUS Platinum redundant power supply
  • Rev. AAV1: Dual 1600W (240V) 80 PLUS Titanium redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte R183-Z96 Server - Documentation

Gigabyte R183-Z96 Server Data Sheet Gigabyte R183-Z96 Server User Manual Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Easy BIOS Refresh User Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
