Gigabyte R183-ZF0 Server

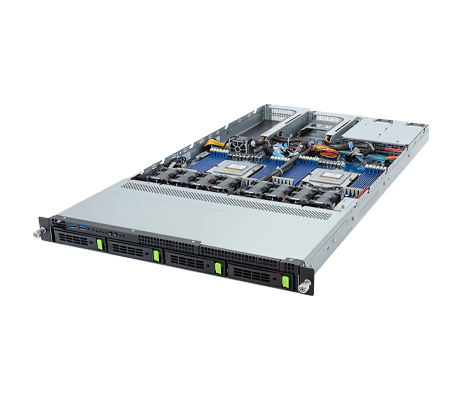

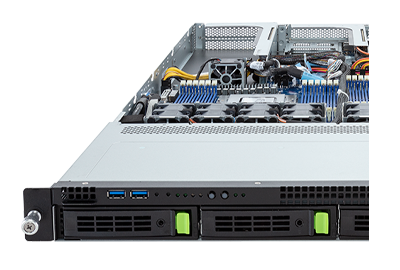

Designed to take on high-performance computing workloads, the Gigabyte R183-ZF0 server features dual AMD EPYC 9004 series processors, including those with 3D V-Cache Technology. This platform will support up to 6TB of memory when 256GB 3DS RDIMMs are installed. The front panel of the 1U chassis can accommodate 4x 2.5-inch or 3.5-inch Gen5 NVMe/SATA/SAS4 hot-swappable bays but a SAS card is required to manage SAS devices. There are two M.2 PCIe Gen3 x4 slots on the Gigabyte R183-ZF0 Server as well.

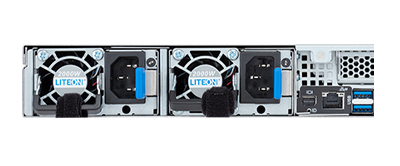

These CPUs support a maximum of 128 cores, 256 threads, and a cTDP of up to 300W at ambient 30°C. It is possible to get a cTDP of 400W under certain temperature settings. With a 12-channel memory design, AMD's 5nm Zen 4 architecture supports a total of 24x DDR5 memory module slots with 12x memory module slots per CPU. Powered by 1+1 2000W (240V) 80 PLUS Titanium redundant power supplies, the Gigabyte R183-ZF0 Server supports 1x dedicated management port, 1x OCP 3.0 Gen5 x16 slot, 1x FHHL PCIe Gen5 x16 slot, and 2x FHFL PCIe Gen5 x16 slots on the rear of the chassis. When a dual slot GPU is installed, the latter slots become inaccessible. Of the 2x M.2 drives supported on the system board, one slot has the capacity to handle 2280 and 22110 cards, while the other slot is limited to 2280 cards.
