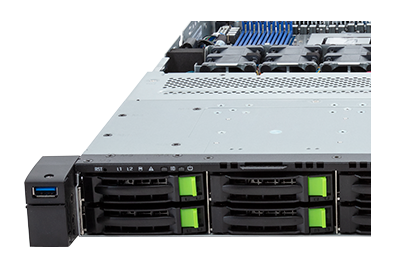

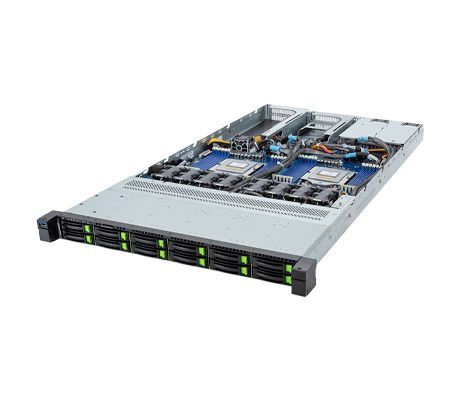

With 2x AMD EPYC 9004 series processors, including those with 3D V-Cache Technology, the Gigabyte R183-ZF1 server supports up to 6TB of 3DS DDR5 RDIMMs or a maximum of 2TB of memory when using standard RDIMMs. The 1U chassis supports 12x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays on the front panel; however, a SAS card is needed in order to handle SAS storage devices. With support for a dual-slot GPU, this system is designed to address high-performance computing (HPC) applications like artificial intelligence, deep learning, and mission critical workloads.
AMD’s 5nm Zen 4 architecture found on the 9004 series AMD EPYC CPUs features up to 128 cores, 256 threads, and a configurable Thermal Design Power (cTDP) rating of up to 300W at ambient 30°C. Under limited thermal conditions, a cTDP rating of up to 400W can be reached. Each processor delivers 12-channel memory architecture, with 12x memory module slots per CPU, for a total of 24x DDR5 memory module slots. For additional expansion there is 1x OCP 3.0 Gen5 x16 slot, 1x FHHL PCIe Gen5 x16 slot, and 2x FHFL PCIe Gen5 x16 slots. 1x PCIe x16 (Gen5 x16) FHFL slot can be used for a dual slot GPU. The latter slots become inaccessible when a dual slot GPU is inserted. The Gigabyte R183-ZF1 Server also has 2x M.2 PCIe Gen3 x4 slots, one of which can accommodate 2280 and 22110 cards and the other only 2280 cards. This system is powered by 1+1 2000W (240V) 80 PLUS Titanium redundant power supplies.
The back of this system features a dedicated 1GbE RJ45 management port. Gigabyte also provided a value-added solution to server management with the Gigabyte Server Console for managing a single server or small cluster. For larger networks, there is the Gigabyte Server Manager, or GSM. GSM is designed for data center deployments and offers a full suite of tools to help effectively manage, allocate and troubleshoot one-to-many servers.
Gigabyte R183-ZF1 Server - Specifications
Processor- 2 Sockets
AMD EPYC 9004 Series Processors
AMD EPYC 9004 Series Processors with AMD 3D V-Cache Technology
*Up to 128-core, 256 threads per processor
cTDP up to 300W at ambient 30°C
Socket SP5 (2 x LGA 6096)
*cTDP supported up to 400W under limited thermal conditions.
Motherboard
MZF3-GP0
Memory
Memory Slots
24x DDR5 DIMM slots
12-Channel memory architecture
Memory Speed
Up to 4800 MHz
DIMM Module Sizes
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Drive Bays
12 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
(4 x NVMe from CPU_0, 8 x NVMe from CPU_1)
(6 x SATA via CRS2810 from CPU_0, 6 x SATA via CRS2810 from CPU_1)
SAS card is required for SAS devices support
LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output
Internal
1 x TPM header
1 x OCP 3.0 Slot
Front
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x Bay status LED
Rear
2 x USB 3.2 Gen1
1 x Mini-DP
1 x MLAN
1 x ID LED
Backplane
Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Expansion Slots
PCIe Cable:
1 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
1 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, occupied when Dual slot GPU is inserted
1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
1 x M.2 Slot
PCIe Gen3 x4, from CPU_0
Supports 2280/22110 cards
Occupied by CRS2810 - 4 x SATA ports
1 x M.2 Slot
PCIe Gen3 x4, from CPU_1
Supports 2280 cards
Occupied by CRS2810 - 6 x SATA ports
Chassis
Enclosure
Height: 43.5 mm
Width: 438 mm
Depth: 815 mm
Power Supply
1+1 2000W (240V) 80 PLUS Titanium redundant power supplies
System Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Compose the exact configuration you looking for to build the perfect server. Just add components and quantities you would like to incorporate into the system
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
