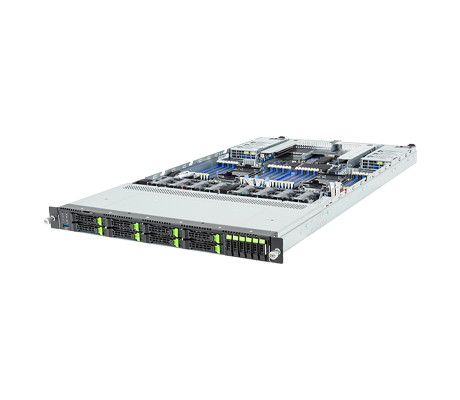

Gigabyte R184-S91 Server

Ideal for networking applications and a hybrid/private cloud system, the Gigabyte R184-S91 Server supports DDR5 memory with 32x memory module slots. The memory modules are equally divided among dual Intel Xeon 6 processors with a TDP of up to 350W. Supported 8-channel memory architecture CPUs include the 6700 series processors, with either E-cores or P-cores, and the 6500 series with P-cores. If only one CPU is installed, some PCIe, memory functions, or drive bays may not be available.

Overview

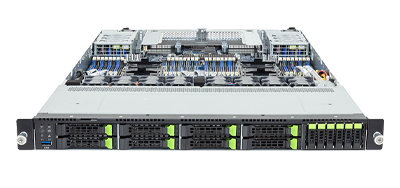

Gigabyte R184-S91 Server - System Overview

The 14-bay Gigabyte R184-S91 is a 1U platform that can be configured in several different ways. The front panel holds 8x 2.5" Gen5 NVMe/SATA/SAS4 drive bays, plus 6x 9.5mm E1.S NVMe drive bays. In addition, the motherboard offers 2x internal M.2 PCIe Gen5 x4 slots for 2280 or 22110 form factor cards and 1x M.2 PCIe Gen5 x2 for 2280 cards. RDIMM reach speeds of up to 6400 MT/s (1DPC) or 5200 MT/s (2DPC), meanwhile MCR DIMMs support up to 8000 MT/s but are only compatible with CPUs with P-cores.

The system is powered by dual redundant 1600W Titanium power supplies. PCIe cards can be installed in 2x FHHL PCIe Gen5 x16 slots plus additional cards can be used in 2x OCP 3.0 Gen5 x16 slots from the rear of the chassis. LAN is provided by 2x 1Gb/s RJ45 via 1x Intel I350-AM2 with NCSI function support. To assist with server management, Gigabyte includes two free software applications. Users can deploy the Gigabyte Server Management (GSM) to manage numerous servers or sizable clusters of servers simultaneously. For managing one server or a small group of servers, the Gigabyte Management Console come preinstalled.

Specifications

Gigabyte R184-S91 Server - Specifications

Processor - Dual-Sockets

Intel Xeon 6 Processors
Intel Xeon 6700E-Series Processors
Intel Xeon 6700P-Series Processors
Intel Xeon 6500P-Series Processors
2 x LGA 4710, Socket E2
System on Chip
TDP up to 350W
Motherboard: MS94-FS0

Memory

32x DIMM slots
DDR5 memory supported only
8-Channel memory per processor architecture
MCR DIMM supported
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

Drive Bays

Front Hot-Swap:

6x 9.5mm E1.S NVMe
8 x 2.5" Gen5 NVMe/SATA/SAS4

Internal M.2:

2x M.2 (2280/22110), PCIe Gen5 x4

Internal M.2 (I/O board - CDCR010):

1x M.2 (2280), PCIe Gen5 x2

Power Supplies

Dual 1600W 80 PLUS Titanium redundant power supply

Fans

8 x 40x40x56mm (32,000rpm)

I/O

Front I/O

1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LED
1 x Storage activity LED
1 x System status LED

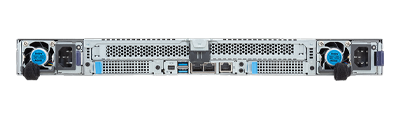

Rear I/O

I/O board - CDCR010:

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

Backplane I/O

Speed and Bandwidth:

CBP1082: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
CBP2060: PCIe Gen5 x4

Expansion Slots

Riser Card CRS101J:

1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

Riser Card CRS101K:

1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1
2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
(1 x from CPU_0 and 1 x from CPU_1)
Supported NCSI function

Dimensions

Documentation

Gigabyte R184-S91 Server - Documentation

Gigabyte R184-S91 (AAV1) Data Sheet Gigabyte R184-S91 User Manual Gigabyte Server Management Console Gigabyte Redfish API Specifications Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Server Installation Configuration Guide Gigabyte GSM Agent Installation and Features Guide
