Featuring 8-channel memory architecture, each CPU offers 16x DIMM slots, for a total of 32x memory module slots. Memory speeds differ for RDIMMs with speeds of up to 6400 MT/s (1DPC) or 5200 MT/s (2DPC). MCR DIMMs (Multiplexor Combined Ranks DIMMs), on the other hand, support memory speeds of up to 8000 MT/s. However, MCR DIMMs can only be deployed in a 1DPC configuration, and only with Intel Xeon 6 CPUs with P-cores.

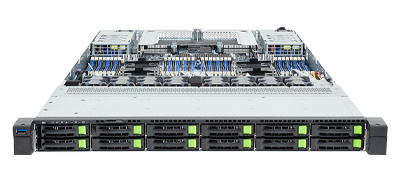

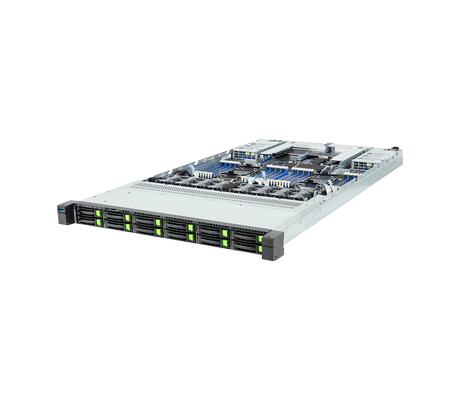

The front of the chassis holds 12x 2.5-inch hot-swappable Gen5 NVMe/SATA/SAS4 drive bays. Under the hood, there are 2x M.2 PCIe Gen5 x4 slots, plus 1x M.2 PCIe Gen5 x2 slot for 2280 and 22110 form factor cards. A storage card is needed to support SATA and SAS drives and a virtual RAID on CPU (VROC) key if installing NVMe drive types in a RAID configuration. The system supports 2x riser cards, each supporting a single FHHL Gen5 x16. Powering the platform are dual redundant 1600W 80 Plus Titanium power supplies.

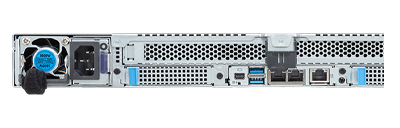

To manage the R184-S92, Gigabyte offers two complimentary software tools. The Gigabyte Server Management (GSM) is a suite of tools designed to monitor and manage multiple servers or large clusters. The Gigabyte Management Console is preinstalled and tailored for managing a single server or a small cluster. Both management suites support local and remote management through a dedicated RJ45 management port on the back of the system.
Compose the exact configuration you looking for to build the perfect server.
Just add components and quantities you would like to incorporate into the system
