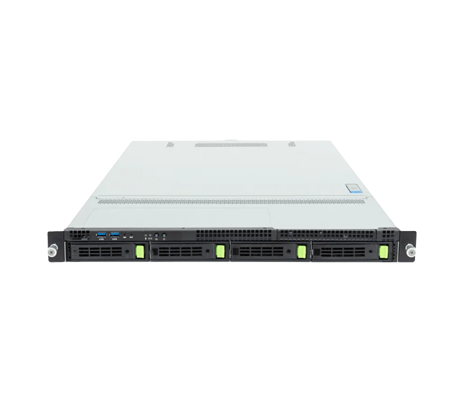

The Gigabyte R185-D90 Server supports DDR5 RDIMMs or Multiplexed Rank DIMMs (MRDIMM). Memory speeds of up to 8000MT/ can be achieved with RDIMMs or up to 12800MT/s with MRDIMMs installed. There are 4x 3.5” drive bays on the front that can support NVMe, SATA or SAS-4 drives. There are also 3x M.2 drive slots on the system board with a 4th slot that’s disabled. With SAS or SATA drive types a storage controller is required. Powering the system are dual, redundant 3200W power supply units (PSU).
Chassis Configurations
Gigabyte R185-D90-AS1 Server
- Air Cooling
Gigabyte R185-D90-LS1 Server
- CPU Direct Liquid Cooling (DLC)
A dedicated management LAN port (MLAN) on the back provides remote management of the system. That MLAN port provides access to the integrated AST2700 microprocessor, which provides enhanced HPC and AI Management. It is equipped with management and diagnostic tools, also full BMC process logging for diagnostics.
Explore available configurations for the Gigabyte R185-D90 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- Dual Processors
- AMD EPYC 9006 SP7 Server Processor
- PPT up to 500W
- At 25°C ambient, PPT up to 600W
- Motherboard: MD95-FS0
- Chipset: Integrated into SoC
If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- 32 x DIMM slots
- Support DDR5 RDIMM/MRDIMM
- 16-Channel memory per processor
- RDIMM: Up to 8000 MT/s
- MRDIMM: Up to 12800 MT/s
- MRDIMMs are supported only on select CPU SKUs.
Front hot-swap:
- 4x 3.5"/2.5" Gen5 NVMe/SATA/SAS4*
- NVMe from CPU_1
Internal M.2:
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x4, from CPU_0
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x4, from CPU_1
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x2, from CPU_0
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x2, from CPU_1, disabled
*Storage card(s) required to support SATA and SAS drives.
- 1x LP x16 (Gen6 x16), from CPU_0
- 2x LP x16 (Gen6 x16), from CPU_1
- 1x OCP NIC 3.0 (Gen6 x16), from CPU_0
- Supports NCSI function
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Power button with LED
- 1x ID button with LED
- 1x NMI button
- 1x Reset button
- 1x Storage activity LED
- 1x System status LED
DC-SCM:
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Mini-DP
- 1x Debug port (Type-C)
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x System status LED
- 1+1 3200 W 80 PLUS Titanium redundant power supplies*
*The system power supply requires C19 power cord
- Width: 438 mm
- Height: 43.5 mm
- Depth: 815 mm
