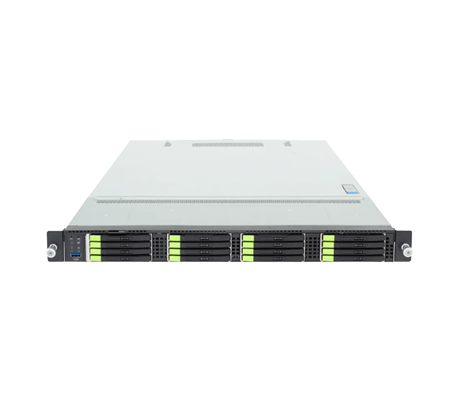

Additional InformationDual processors with a PPT of up to 500W can be installed or up to 600W with an ambient temperature of 25 degrees Celsius. With support for DDR5 RDIMMs or Multiplexed Rank DIMMs, memory speed is variable. Memory speeds of up to 12800MT/s with MRDIMMs installed, or up to 8000MT/s using RDIMMs. There are 3x M.2 slots on the Gigabyte R185-D92-AS1 server motherboard with a 4th that’s been disabled.
Expansion slots include 1 low-profile x16 Gen6 slot and 1x OCP3.0 compatible NIC slot also offering a Gen6 x16 link width. 8x 40mm fans cool the system The system is powered by dual redundant 3200W 80 Plus Titanium power supply units. The system has an integrated ASPEED AST2700 microprocessor for remote management of the system. It’s equipped with diagnostic and management tools.
Explore available configurations for the Gigabyte R185-D92-AS1 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- Dual Processors, 2x LGA 7536/Socket SP7
- AMD EPYC 9006 SP7 Server processors
- PPT up to 500W
- At 25°C ambient, PPT up to 600W
- Motherboard: MD95-FS0
- Chipset: Integrated into SoC
If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- 32x DIMM slots
- Support DDR5 RDIMM/MRDIMM*
- 16-Channel memory per processor
- RDIMM: Up to 8000 MT/s
- MRDIMM: Up to 12800 MT/s
*MRDIMMs are supported only on select CPU SKUs.
Front hot-swap:
- 16x E3.S Gen6 NVMe
- 8x NVMe from CPU_0, 8 x NVMe from CPU_1
Internal M.2:
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x4, from CPU_0
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x4, from CPU_1
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x2, from CPU_0
- 1x M.2 (2242/2260/2280/22110), PCIe Gen4 x2, from CPU_1, disabled
- 1x LP x16 (Gen6 x16), from CPU_1
- 1x OCP NIC 3.0 (Gen6 x16), from CPU_0
- Supports NCSI function
- 1x USB 3.2 Gen1 port (Type-A)
- 1x Power button with LED
- 1x ID button with LED
- 1x NMI button
- 1x Reset button
- 2x Storage activity LEDs
- 1x System status LED
DC-SCM:
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Mini-DP
- 1x Debug port (Type-C)
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x System status LED
- 2x 3200 W 80 PLUS Titanium redundant power supplies
- The system power supply requires C19 power cord.
- Width: 438 mm
- Height: 43.5 mm
- Depth: 815 mm
