Gigabyte R243-E30 Server

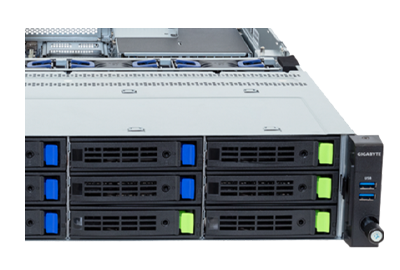

The single-socket Gigabyte R243-E30 Server supports an AMD EPYC 8004 series processor with up to 64 cores and 128 threads, plus a maximum configurable TDP of 225W. It is capable of delivering Gen5 NVMe, SAS4, and SATA configurations by way of 12x hot-swappable storage bays on the front panel. These drive bays are organized into 4x 3.5"or 2.5" bays supporting Gen5 NVMe/SATA/SAS4 and 8x 3.5" or 2.5" bays for SATA/SAS4. A SAS card is required for SAS devices. To boot the operating system, there is 1x M.2 slot with a PCIe Gen3 x4 interface on the motherboard, suitable for 2280 and 22110 form factor cards.

Overview

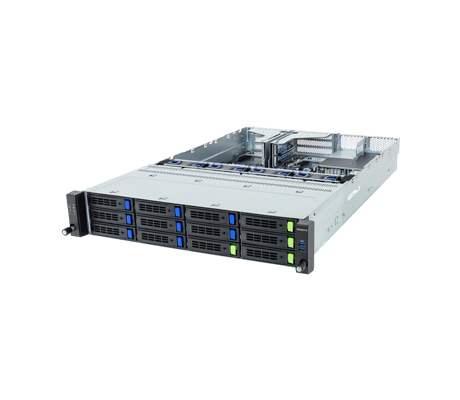

Gigabyte R243-E30 Server - System Overview

The Gigabyte R243-E30 can accommodate up to 1TB of memory when all 12x DIMM slots, with a 6-channel memory architecture, are populated with 96GB RDIMMs running at maximum speeds of 4800 MT/s. For expansion, the server is equipped with 2x PCIe x16 (Gen5 x16) FHHL slots, each mounted on separate riser cards. Power is provided by a redundant 1300W 80 PLUS Titanium or Platinum power supply, depending on the server revision.

Gigabyte R243-E30 (Rev. AAH1)

1300W 80 PLUS Titanium redundant power supplies

Gigabyte R243-E30 (Rev. AAC1)

1300W 80 PLUS Platinum redundant power supplies

The R243-E30 is designed for a wide range of applications, including file storage web hosting, and use as a hybrid/private cloud server. It can be easily managed using Gigabyte's free management software. The pre-installed Gigabyte Management Console allows for the management of individual servers or small clusters, while the Gigabyte Server Management (GSM) suite is ideal for overseeing large-scale server clusters.

Specifications

Gigabyte R243-E30 Server - Specifications

Processor - Single Socket

AMD EPYC 8004 Series Processors
Single processor, 5nm technology
Up to 64 cores, 128 threads
cTDP up to 225W
1 x LGA 4844 (Socket SP6)
System on Chip
Motherboard: ME33-DC0

Memory

12x DIMM slots
DDR5 memory supported only
6-Channel memory architecture
RDIMM up to 96GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

Drive Bays

4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4* hot-swappable bays
8 x 3.5"/2.5" SATA/SAS4* hot-swappable bays

Power Supplies

1300W 80 PLUS Titanium redundant power supplies

1300W 80 PLUS Platinum redundant power supplies

Fans

4 x 80x80x38mm (18,300rpm)

LAN

1 x 1Gb/s LAN port (1 x Intel I210-AT)
Supports NCSI function
1 x 10/100/1000 Mbps Management LAN

I/O

Internal I/O

1 x TPM header

Front I/O

2 x USB 3.2 Gen1 port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LED (1x LED disabled)
1 x Storage activity LED
1 x System status LED

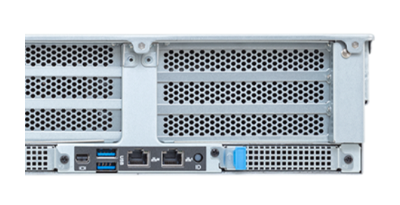

Rear I/O

2 x USB 3.2 Gen1 ports
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED

Backplane I/O

Speed and bandwidth:

PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Expansion Slots

Riser Card CRS201H:

1 x PCIe x16 (Gen5 x16) FHHL slot

Riser Card CRS201M:

1 x PCIe x16 (Gen5 x16) FHHL slot

2 x OCP NIC 3.0 (Gen5 x16)
Supported NCSI function

1 x M.2 slot (PCIe Gen3 x4)
Supports 2280/22110 cards

Dimensions
