Gigabyte R243-E33 Server

Powered by a single AMD EPYC 8004 series processor, code name Siena, the Gigabyte R243-E33 server is ideal for visual computing, networking, and artificial intelligence workloads. AMD’s Siena processors feature a 5nm “Zen 4c” architecture, 64 cores and 128 threads, plus a cTDP of up to 225W. There are 12x memory module slots surrounding the CPU with a 6-channel memory architecture. At full capacity it provides up to 1TB of DDR5 RDIMM memory running at speeds of up to 4800MT/s. The front panel holds 12x 3.5-inch or 2.5-inch SATA/SAS4 hot-swap drive bays, but a SAS card is required to support SAS drives.
Configure

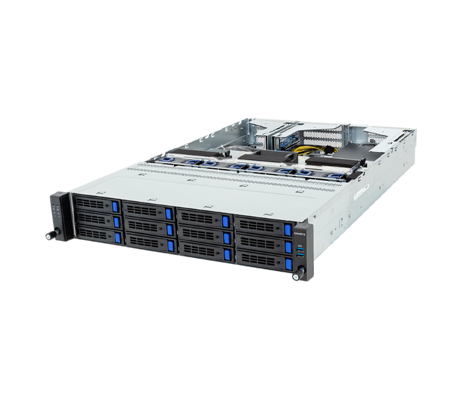

Gigabyte R243-E33 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R243-E33 Server - System Overview

Additional Information

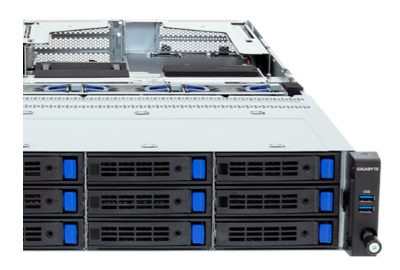

Gigabyte R243-E33 Server front Drive Bays

AMD’s Siena CPUs are designed specifically for single-socket systems and deliver energy efficiency for and space-constrained environments. In addition to the drive bays on the front of the Gigabyte R243-E33, there is a single M.2 PCIe Gen3 x4 slot on the motherboard to boot the OS supporting 2280 and 22110 cards. There are 3x FHFL PCIe Gen5 x16 slots for 3x dual-slot GPU cards. NVIDIA A40 and NVIDIA H100 GPUs are supported. 2x OCP 3.0 Gen5 x16 slots are situated on the rear of the platform for optional NIC support. Next to these slots, administrators will find dual 2700W 80 PLUS Titanium or 2400W 80 PLUS Platinum power supply units offering 1+1 redundancy.

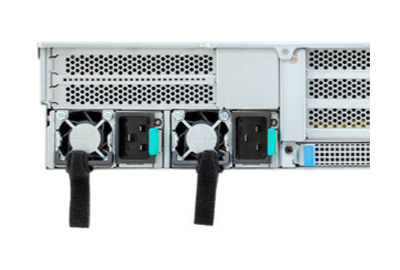

Gigabyte R243-E33 Server PSU

The Gigabyte Management Console and Gigabyte Server Management can be used to manage the system. Both offer an intuitive web-based user interface based on the AMI MegaRAC SP-X, remotely accessed through the integrated Aspeed AST2600 baseboard management controller. Gigabyte’s Management Console is a one-to-one solution, whereas the Gigabyte Server Management suite is a one-to-many solution which leverages the Management Console to provide overall management of the network.

Gigabyte R243-E33 Server - Specifications

Processor - 1 Socket

  • AMD EPYC 8004 Series Processors
  • Single processor, 5nm technology
  • Up to 64 cores, 128 threads
  • cTDP up to 225W

    • Socket:

  • 1 x LGA 4844
  • Socket SP6

Motherboard

  • ME33-DC0

Memory

    Memory Slots:

  • 12 x DIMM slots
  • 6-Channel memory architecture

    • Memory Type:

  • RDIMM

    • Memory Speed:

  • Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

    • DIMM Module Sizes:

  • RDIMM: Up to 96GB supported

Drive Bays

  • 12 x 3.5"/2.5" SATA/SAS4 hot-swappable bays

    • *SAS card is required to support SAS drives

LAN

    Rear Side:

  • 1 x 1Gb/s LAN port (1 x Intel® I210-AT)
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp

Input / Output

    Internal

  • 1 x TPM header

    • Front:

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 2 x LAN activity LEDs (1x LED disabled)
  • 1 x System status LED
  • 1 x Storage activity LED

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x RJ45
  • 1 x MLAN
  • 1 x ID Button with LED

    • Backplane Board:

  • Speed and bandwidth: SATA 6Gb/s or SAS4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Riser Card CRS201H:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs

    • Riser Card CRS201M:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs

    • PCIe Cable:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs

    • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth

    1 x M.2 slot:

  • M-key
  • PCIe Gen3 x4
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 87.5mm

    Width: 438mm

    Depth: 710mm

Power Supply

  • 1+1 2700W 80 PLUS Titanium redundant power supplies

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte R243-E33 Server - Documentation

Gigabyte R243-E33 Server Data Sheet Gigabyte R243-E33 Server User Manual Gigabyte Server Management Console User's Guide Gigabyte GSM Agent Installation and Features Guide User's Manual Gigabyte GSM Server Installation and Configuration Guide Gigabyte Redfish API Specification AST2600 User Guide Gigabyte Easy BIOS Refresh User Guide
