Gigabyte R243-EG0 Rack Server

With a total of 12x DDR5 DIMM slots, the Gigabyte R243-EG0 houses a single AMD EPYC 8004 Series Processor. On the front of the system, there are 12x SATA/SAS drive bays which are compatible with both 3.5” and 2.5” drive form factors. To expand the capabilities of this server, there are 4x full-height, full-length PCIe 5.0 x15 slots that can be outfitted with up to 4x double-slot GPUs.
Configure

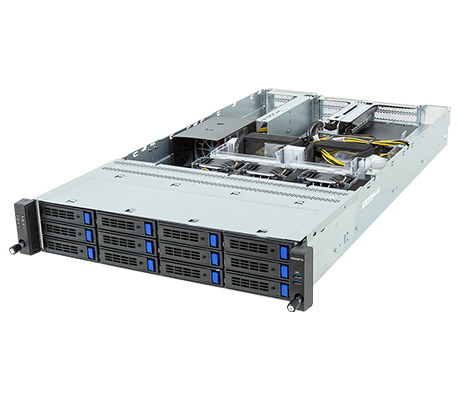

Gigabyte R243-EG0 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R243-EG0 Rack Server - System Overview

Additional Information

Gigabyte H263-S64 front detail

Ideal for graphic intensive workloads, the Gigabyte R243-EG0 supports a single AMD EPYC 8004 Series processor with up to 64x physical cores and 128x virtual threads. A single M.2 slot on the system board is ideal for fast access storage needs or OS installation. On the rear side of the system, there is a single management 10/100/1000 GbE LAN Port. An PCIe 5.0 x16 mezzanine card slot is compatible with OCP 3.0 and can provide optional network communications without impacting the limited PCIe slots. Depending on the revision it will be outfitted with 2x 2700W 80 PLUS Titanium power supplies or 2x 2400 80 PLUS Platinum PSUs in a 1 + 1 redundant configuration. System cooling is achieved with 4x high-performance fans.

Gigabyte H263-S64 detail top

Revision AAF1

1+1 2400W (240V) 80 PLUS Platinum redundant PSUs

Revision AAL1

1+1 2700W (240V) 80 PLUS Platinum redundant PSUs

Gigabyte R243-EG0 Rack Server - Specifications

Processor - 1 Socket

  • AMD EPYC 8004 Series processors
  • cTDP up to 225W

    • Socket:

  • 1 x LGA 4844
  • Socket SP6

Motherboard

  • MEG3-GU0

Memory

    Memory Slots

  • 12 x DDR5 DIMM slots
  • 6-Channel memory architecture

    • Memory Type

  • RDIMM

    • Memory Speed

  • Up to 4800MHz (1DPC)
  • Up to 3600MHz (2DPC)

    • DIMM Module Sizes

  • RDIMM: Up to 96GB

Drive Bays

  • 12 x 3.5"/2.5" SATA/SAS hot-swappable bays
    • *Note: SAS card is required for SAS drive support

LAN

    Rear side:

  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal:

  • 1 x Gen3 M.2 slot
  • 1 x TPM header
  • 1 x PCIe 5 x16 OCP 3.0 slot

    • Front:

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED (disabled)
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane:

  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s

    • TPM:

  • 1 x TPM header with SPI interface
  • Optional: TPM2.0 kit: CTM010

Expansion Slots

  • 12 x 3.5"/2.5" SATA/SAS hot-swappable bays

    • 1 x M.2 slots:

  • M-key
  • PCIe Gen3 x4
  • Supports NGFF-2280/22110 cards

Chassis

    Height: 43.5mm

    Width: 438mm

    Depth: 815mm

Power Supply

    Revision AAF1:

  • 1+1 2400W (240V) 80 PLUS Platinum redundant PSUs

    • Revision AAL1:

  • 1+1 2700W (240V) 80 PLUS Platinum redundant PSUs

System Cooling

  • 8 x 40x40x56mm (29,700rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Orderoseosme Settings
  • SSL Settings
  • SMTP Settings

Gigabyte R243-EG0 Rack Server - Documentation

Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User's Guide 4th Gen AMD EPYC Processor Architecture AMD EPYC 8004 Series Processor Data Sheet
