Gigabyte R262-ZA0 Server

There are two versions of the Gigabyte R262-ZA0 server, each with a different AMD EPYC series CPU and RAM configuration. Depending on the revision, the single 7nm processor in the 2U rack server can be from the 7001, 7002, or 7003 AMD EPYC series families. This server has a total of 42x 2.5" hot-swappable SSD bays. On the front panel, it has 24x 2.5" SATA/SAS hot-swappable SSD bays, 8x 2.5" SATA/SAS hot-swappable SSD bays and 2x 2.5” Gen4 NVMe hot-swappable bays on the rear, plus 8x 2.5” SATA/SAS internally mounted hot-swappable SSD bays. An additional M.2 slot with a PCIe Gen4 x4 interface can be used to boot the operating system. This machine is powered by dual 1200W 80 PLUS Platinum redundant power supplies.
Configure

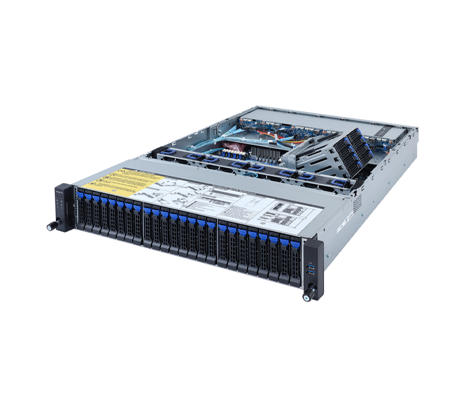

Gigabyte R262-ZA0 side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R262-ZA0 Server - System Overview

Description

Up to 4TB of DDR4 memory can be accommodated on the R262-ZA0 server board when 256GB 3DS RDIMMs or 3DS LRDIMMs are installed in all 16x memory module slots. With standard RDIMMs or LRDIMMs, half this quantity is available to you in half. The AMD EPYC-based system can be managed remotely by an Aspeed AST2500 management controller. Power for the R262-ZA0 rack server is delivered by dual 1200W 80 PLUS Platinum power supplies (PSU). The AMD EPYC-based system supports 2x FHHL PCIe Gen4 x16 and x8 slots, 1x OCP 2.0 Gen3 x8 mezzanine slot, 1 x OCP 3.0 Gen4 x16 mezzanine slot, and an onboard 12Gb/s SAS expander.

Gigabyte R262-ZA0 Server (rev. 100):
  • AMD EPYC 7001/7002 series processor family
  • RDIMM/LRDIMM modules up to 128GB supported

    • Gigabyte R262-ZA0 Server (rev. A00):
    • AMD EPYC 7002/7003 series processor family
    • 3DS RDIMM/LRDIMM modules up to 256GB supported

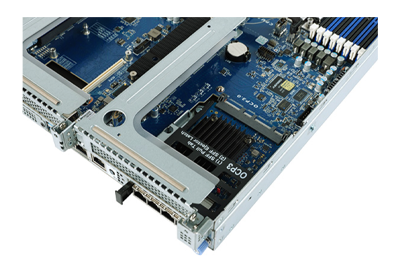

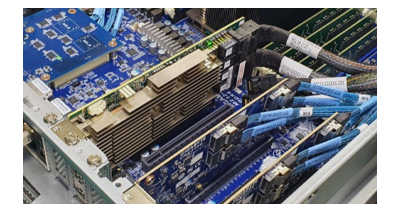

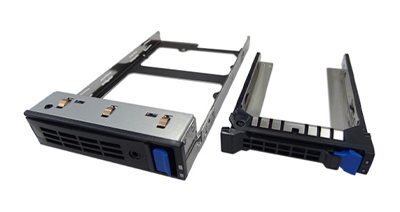

    Gigabyte R262-ZA0 Tri-Mode RAID Adapter Gigabyte R262-ZA0 OCP 3.0 Gigabyte R262-ZA0 drive cage

    Gigabyte R262-ZA0 Server - Specifications

    Processor - 1 Socket

    • (rev. 100) AMD EPYC 7001 or 7002 series processor family
    • (rev. A00) AMD EPYC 7002 or 7003 series processor family
    • Single processor, 7nm technology
    • Up to 64-core, 128 threads per processor
    • cTDP up to 240W

      • Chipset:

    • System on Chip

    Motherboard

    • MZA2-CE0

    Memory

      Memory Slots

    • 16x DDR4 DIMM slots
    • 8-Channel memory architecture

      • Memory Type

    • RDIMM
    • LRDIMM
    • 3DS RDIMM
    • 3DS LRDIMM

      • Memory Speed

    • Up to 3200/2933 MHz

      • DIMM Module Sizes Rev.100

    • RDIMM/LRDIMM: Up to 128GB

      • Rev.A00
    • RDIMM/LRDIMM: Up to 128GB
    • 3DS RDIMM/3DS LRDIMM: Up to 256GB

    Drive Bays

      Front Side:

    • 24 x 2.5" SATA/SAS hot-swappable SSD bays

      • Rear Side:

    • 2 x 2.5" Gen4 NVMe hot-swappable SSD bays
    • 8 x 2.5" SATA/SAS hot-swappable SSD bays

      • Internal:

    • 8 x 2.5" SATA/SAS hot-swappable SSD bays
    • SAS card is required to enable the drives
    • Broadcom SAS35x48 expander
    • Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port

      • Recommended 12Gb/s SAS Cards:

    • CRA4648
    • CSA4648

    LAN

    • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
    • 1 x 10/100/1000 management LAN

      • Video

    • Integrated in Aspeed AST2500
    • 2D Video Graphic Adapter with PCIe bus interface
    • 1920x1200 @ 60Hz 32bpp

    Input / Output

      Internal

    • 1 x M.2 slots
    • 1 x USB 3.0 header
    • 1 x OCP 3.0 mezzanine slot
    • 1 x OCP 2.0 mezzanine slot
    • 1 x TPM header
    • 1 x COM header
    • 1 x Front panel header
    • 1 x HDD Backplane board header
    • 1 x IPMB connector
    • 1 x PMBus connector
    • 1 x Clear CMOS jumper
    • 1 x BIOS recovery jumper

      • Front

    • 2 x USB 3.0
    • 1 x Power button with LED
    • 1 x ID button with LED
    • 1 x NMI button
    • 2 x LAN activity LEDs
    • 1 x System Status LED
    • 1 x Reset button
    • 1 x HDD activity LED

      • Rear

    • 2 x USB 3.0
    • 1 x VGA
    • 2 x RJ45
    • 1 x MLAN
    • 1 x ID button with LED

      • Backplane I/O

    • Front side_CBP20O8: 24 x SATA/SAS ports
    • Rear side_CBP10A5: 8 x SATA/SAS, 2 x NVMe ports
    • Internal_CBP2080: 8 x SATA/SAS ports

      • TPM

    • 1 x TPM header with SPI interface
    • Optional TPM 2.0 kit: CTM010

    Expansion Slots

      Riser Card CRS101E x 2:
    • 1 x PCIe x16 (Gen4 x16) FHHL slot
    • 1 x PCIe x16 (Gen4 x8 or x16) FHHL slot, shared with OCP 2.0 mezzanine slot*

      • 1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth
      1 x OCP 2.0 mezzanine slot with PCIe Gen3 x0 or x8 bandwidth, shared with CRS101E**

      1 x M.2 slot:
    • M-key
    • PCIe Gen4 x4
    • Supports NGFF-2280/22110 cards

    Chassis

      Enclosure

      Height: 87.5mm (3.44 in)

      Width: 438mm (17.24 in)

      Depth: 730mm (28.74 in)

    Power Supply

    • 2 x 1200W 80 PLUS Platinum redundant PSUs

    System Fans

    • 4 x 80x80x38mm (16,300rpm), 2-ball

    System Management

    • Aspeed AST2500 management controller
    • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

    Gigabyte R262-ZA0 Server - Documentation

    Gigabyte R262-ZA0 Server User Manual Gigabyte R262-ZA0 Server Data Sheet Gigabyte Memory Population Guidelines AMD EPYC 7003 Series CPU Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
