Gigabyte R262-ZA1 Server

Depending on the revision, a single AMD EPYC 7001, 7002, or 7003 series 7nm processor will provide compute in the 2U Gigabyte R262-ZA1 server. There are 12x 3.5" SATA/SAS hot-swappable HDD/SSD bays on the front panel and an additional 2x 2.5” SATA/SAS hot-swappable drive bays on the rear. The motherboard supports 16x DIMM DDR4 slots with an 8-channel memory architecture featuring up to 4TB of RAM with 256GB 3DS RDIMMs or 3DS LRDIMMs. As an option, the operating system can boot from an extra M.2 slot with a PCIe Gen4 x4 interface.
Configure

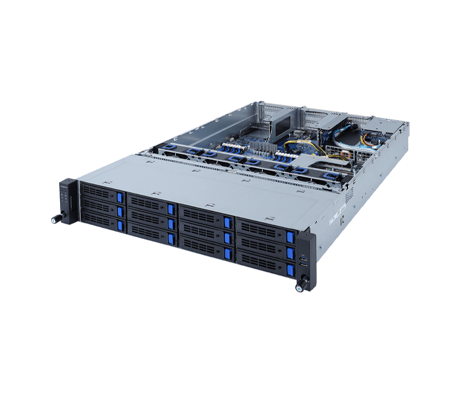

Gigabyte R262-ZA1 side view.
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R262-ZA1 Server - System Overview

Description

An Aspeed AST2500 remote management controller can be used to regulate and manage the AMD EPYC-based system, which is powered by dual redundant 1200W 80 PLUS Platinum power sources. In addition to 1x OCP 2.0 Gen3 x8 mezzanine slot and 1x OCP 3.0 Gen4 x16 mezzanine slot, the chassis offers 6x FHHL PCIe Gen4 x16 and x8 slots, 1x FHHL PCIe Gen3 x16 or x8 slot, and 2x low-profile PCIe Gen4 x8 slots. There are two versions of the R262-ZA1 server, each with a different AMD EPYC series processor and memory configuration.

Gigabyte R262-ZA1 Server (rev. 100):
  • AMD EPYC 7001/7002 series processor family

Gigabyte R262-ZA1 Server (rev. A00):
  • AMD EPYC 7002/7003 series processor family
  • 3DS RDIMM/LRDIMM modules up to 256GB supported

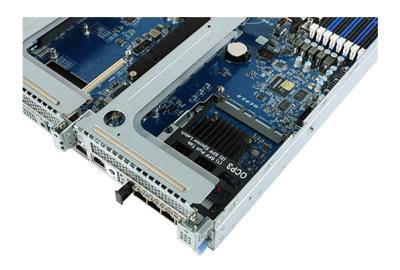

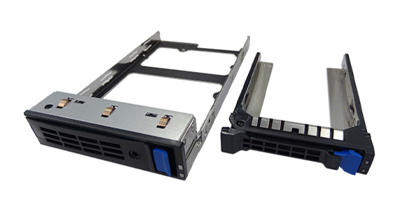

Gigabyte R262-ZA1 OCP 3.0 Gigabyte R262-ZA1 drive cage

Gigabyte R262-ZA1 Server - Specifications

Processor - 1 Socket

  • (rev. 100) AMD EPYC 7001 or 7002 series processor family
  • (rev. A00) AMD EPYC 7002 or 7003 series processor family
  • Single processor, 7nm technology
  • Up to 64-core, 128 threads per processor
  • cTDP up to 240W

    • Chipset:

  • System on Chip

Motherboard

  • MZA2-CE0

Memory

    Memory Slots

  • 16x DDR4 DIMM slots
  • 8-Channel memory architecture

    • Memory Type

  • RDIMM
  • LRDIMM
  • 3DS RDIMM
  • 3DS LRDIMM

    • Memory Speed

  • Up to 3200/2933 MHz

    • DIMM Module Sizes Rev.100

  • RDIMM/LRDIMM: Up to 128GB

    • Rev.A00
  • RDIMM/LRDIMM: Up to 128GB
  • 3DS RDIMM/3DS LRDIMM: Up to 256GB

Drive Bays

    Front Side:

  • 12 x 3.5" SATA/SAS hot-swappable HDD/SSD bays

    • Rear Side:

  • 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
  • SAS card is required to enable the drives

    • Recommended 12Gb/s SAS Cards:

  • CRA4448
  • CRA3338

LAN

  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp

Input / Output

    Internal

  • 1 x M.2 slots
  • 1 x USB 3.0 header
  • 1 x OCP 3.0 mezzanine slot
  • 1 x OCP 2.0 mezzanine slot
  • 1 x TPM header
  • 1 x COM header
  • 1 x Front panel header
  • 1 x HDD Backplane board header
  • 1 x IPMB connector
  • 1 x PMBus connector
  • 1 x Clear CMOS jumper
  • 1 x BIOS recovery jumper

    • Front

  • 2 x USB 3.0
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 2 x LAN activity LEDs
  • 1 x System Status LED
  • 1 x Reset button
  • 1 x HDD activity LED

    • Rear

  • 2 x USB 3.0
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front side_CBP20C5: 12 x SATA/SAS ports
  • Rear side_CBP2022: 2 x SATA/SAS ports

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM 2.0 kit: CTM010

Expansion Slots

    Riser Card CRS2027:
  • 2 x PCIe x8 (Gen4 x8) low-profile slots

    • Riser Card CRS2225 x 2:
  • 2 x PCIe x16 (Gen4 x16 or x8) FHHL slots
  • 2 x PCIe x8 (Gen4 x0 or x8) FHHL slots
  • 1 x PCIe x16 (Gen4 x16) FHHL slot
  • 1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, shared with OCP2.0 mezzanine slot

    • Internal Riser Card CRS101H:
  • 1 x PCIe x16 (Gen4 x16) FHHL slot

    • 1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth
    1 x OCP 2.0 mezzanine slot with PCIe Gen3 x0 or x8 bandwidth, shared with CRS2225
    1 x M.2 slot:
  • M-key
  • PCIe Gen4 x4
  • Supports NGFF-2280/22110 cards

Chassis

    Enclosure

    Height: 87.5mm (3.44 in)

    Width: 438mm (17.24 in)

    Depth: 730mm (28.74 in)

Power Supply

  • 2 x 1200W 80 PLUS Platinum redundant PSUs

System Fans

  • 4 x 80x80x38mm (16,300rpm), 2-ball

System Management

  • Aspeed AST2500 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte R262-ZA1 Server - Documentation

Gigabyte R262-ZA1 Server User Manual Gigabyte R262-ZA1 Server Data Sheet Gigabyte Memory Population Guidelines AMD EPYC 7003 Series CPU Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
