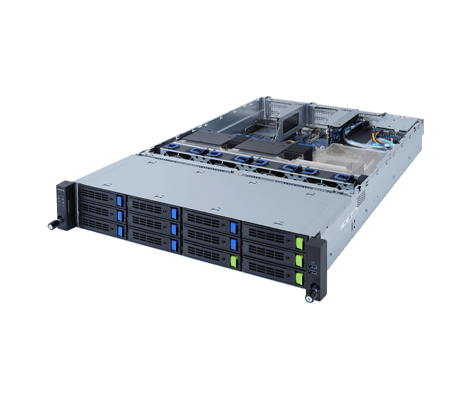

The 14-bay Gigabyte R262-ZA2 server can be configured with 256GB 3DS RDIMMs or 3DS LRDIMMs to fill all 16x memory module slots for a total of up to 4TB of memory. When standard RDIMMs or LRDIMMs are installed, half of this amount is available. This machine is powered by a single, AMD EPYC processor with 8 to 64 cores from either the 7001, 7002, or 7003 series, depending on the system revision. Up to 2x double-slot GPU cards can be mounted on this chassis.
Ideal for all things AI plus use as a networking server, this platform delivers 4x 3.5" NVMe/SATA/SAS and 8x 3.5" SATA/SAS hot-swappable HDD/SSD bays on the front panel, plus 2x 2.5" SATA/SAS hot-swappable HDD/SSD bays on the rear. Under the hood, there is a single M.2 slot with a PCIe Gen4 x4 interface that can be used to boot the OS or for more storage. The platform also supports 2x 1Gb/s LAN ports, 1x OCP 3.0 Gen4 x16 mezzanine slot, and 5x full-height, full-length PCIe 4.0 slots and a single PCIe 3.0 slot. There are two alternative AMD EPYC series processor and memory configurations for the R262-ZA2 server.
Gigabyte R262-ZA2 Server (rev. 100):
AMD EPYC 7001/7002 series processor family
Gigabyte R262-ZA2 Server (rev. A00):
AMD EPYC 7002/7003 series processor family
3DS RDIMM/LRDIMM modules up to 256GB supported
Available Configurations
Explore available configurations for the Gigabyte R262-ZA2 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
(rev. 100) AMD EPYC 7001 or 7002 series processor family
(rev. A00) AMD EPYC 7002 or 7003 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 240W
Chipset:
System on Chip
Motherboard
MZA2-CE0
Memory
Memory Slots
16x DDR4 DIMM slots
8-Channel memory architecture
Memory Type
RDIMM
LRDIMM
3DS RDIMM
3DS LRDIMM
Memory Speed
Up to 3200/2933 MHz
DIMM Module Sizes
Rev.100
RDIMM/LRDIMM: Up to 128GB
Rev.A00
RDIMM/LRDIMM: Up to 128GB
3DS RDIMM/3DS LRDIMM: Up to 256GB
Drive Bays
Front Side:

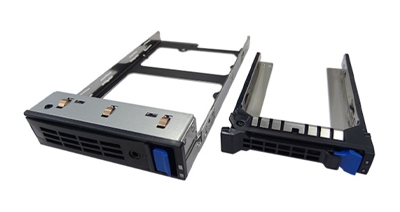

4 x 3.5" NVMe/SATA/SAS hot-swappable HDD/SSD trays
8 x 3.5" SATA/SAS hot-swappable HDD/SSD trays, enabled by optional SAS Card
Rear Side:
2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
SAS card is required to enable the drives
Recommended 12Gb/s SAS Cards:
CRA4448
CRA3338
LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp
Input / Output
Internal
1 x M.2 slots
1 x USB 3.0 header
1 x OCP 3.0 mezzanine slot
1 x OCP 2.0 mezzanine slot
1 x TPM header
1 x COM header
1 x Front panel header
1 x HDD Backplane board header
1 x IPMB connector
1 x PMBus connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
2 x LAN activity LEDs
1 x System Status LED
1 x Reset button
1 x HDD activity LED
Rear
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Front side_CBP20C5: 12 x NVMe/SATA/SAS ports
Rear side_CBP2022: 2 x SATA/SAS ports
TPM
1 x TPM header with SPI interface
Optional TPM 2.0 kit: CTM010
Expansion Slots
Supports up to 2 x double slot GPU cards
Maximum limitation of GPU card: 296mm (L) x 111.5mm (W) x 39.5mm (H)
Riser Card CRS2027:
2 x PCIe x8 (Gen4 x8) low-profile slots
Riser Card CRS2225 x 2:
2 x PCIe x16 (Gen4 x16 or x8) FHHL slots
2 x PCIe x8 (Gen4 x0 or x8) FHHL slots
1 x PCIe x16 (Gen4 x16) FHHL slot
1 x PCIe x16 (Gen3 x16 or x8) FHHL slot, shared with OCP2.0 mezzanine slot
Internal Riser Card CRS101H:
1 x PCIe x16 (Gen4 x16) FHHL slot, occupied by CNV3134, 4-ports NVMe Card

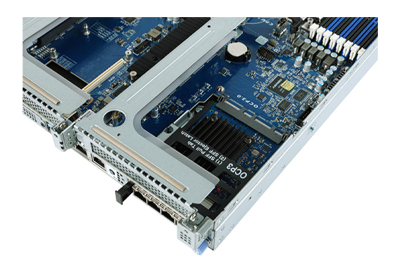

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x0 or x8 bandwidth, shared with CRS2225
1 x M.2 slot:
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
