Gigabyte R263-S30 Server

the Gigabyte R263-S30 Server supports a single 4th or 5th Gen Intel Xeon Scalable processor from the Platinum, Gold, or Silver families, or the Intel Xeon CPU Max series. Boasting flexibility and power, the 2U system is capable of providing up to 64 cores and up to 4TB of memory at capacity. In addition, it can also be configured with Intel Optane Persistent Memory 300 series modules (PMem). There are 4 revisions of this chassis, each with 12x hybrid SFF or LFF hot-swappable drive bays on the front panel featuring different storage types. All have a single M.2 PCIe Gen3 x4 slot on the motherboard with support for 2280 or 22110 cards.
Configure

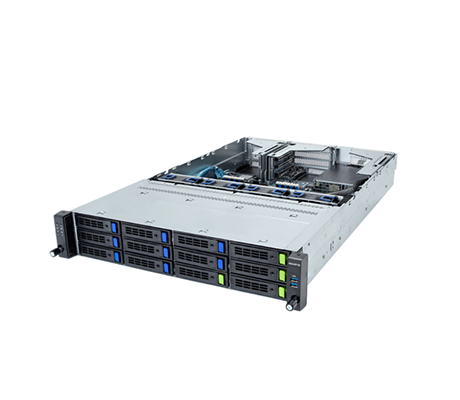

Gigabyte R263-S30 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R263-S30 Server - System Overview

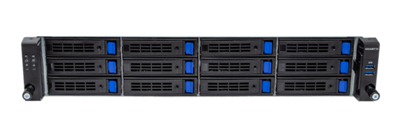

Gigabyte R263-S30 server front

Designed for standard networking applications, the R263-S30 can be used as a shared Internet connection, a shared file server, for virtualization and as a VPN connection for remote workers. There are 4 revisions of this system: rev.AAC1, rev.AAC2, rev.AAH1, and rev.AAH2. These platforms vary between storage bays, PSUs, and expansion slots.



Gigabyte R263-S30 Server (Rev. AAC1)
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply

Riser Card CRS201C:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL

Riser Card CRS201D:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL

Gigabyte R263-S30 server front Gigabyte R263-S30 Server (Rev. AAC2)
  • 12 x 3.5/2.5" SATA/SAS hot-swappable bays
  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply

Riser Card CRS201C:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL
  • 1 x PCIe x16 slot (Gen5 x8), FHHL

Riser Card CRS201D:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL
  • 1 x PCIe x16 slot (Gen5 x8), FHHL

Gigabyte R263-S30 Server (Rev. AAH1)
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • Dual 1300W (240V) 80 PLUS Titanium redundant power supply

Riser Card CRS201C:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL

Riser Card CRS201D:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL

Gigabyte R263-S30 Server (Rev. AAH2)
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • Dual 1300W (240V) 80 PLUS Titanium redundant power supply

Riser Card CRS201C:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL
  • 1 x PCIe x16 slot (Gen5 x8), FHHL

Riser Card CRS201D:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL
  • 1 x PCIe x16 slot (Gen5 x8), FHHL

Available Configurations

Explore available configurations for the Gigabyte R263-S30 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R263-S30 Server - Specifications

Processor - 1-Socket

  • 5th Generation Intel® Xeon® Scalable Processors
  • 4th Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • Up to 64 cores
  • Single processor, CPU TDP up to 350W
  • 2 x LGA 4677, Socket E
  • Intel C741 Chipset

Memory

  • 16x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Drive Bays

    Gigabyte R263-S30 (Rev. AAC1)
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays

    • Gigabyte R263-S30 (Rev. AAC2)
  • 12 x 3.5/2.5" SATA/SAS hot-swappable bays

    • Gigabyte R263-S30 (Rev. AAH1)
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

    • Gigabyte R263-S30 (Rev. AAH2)
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
    • *SAS card is required for SAS devices support

Power Supplies

    Gigabyte R263-S30 (Rev. AAC1)
  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R263-S30 (Rev. AAC2)
  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R263-S30 (Rev. AAH1)
  • Dual 1300W (240V) 80 PLUS Titanium redundant power supply

    • Gigabyte R263-S30 (Rev. AAH2)
  • Dual 1300W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x M.2 slot
  • 1 x TPM Header
  • 1 x VROC
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 1 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: 9CBP20C5NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Gigabyte R263-S30 (Rev. AAC1)
    Riser Card CRS201C:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL
    • Riser Card CRS201D:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL

    • Gigabyte R263-S30 (Rev. AAC2)
    Riser Card CRS201C:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL
  • 1 x PCIe x16 slot (Gen5 x8), FHHL
    • Riser Card CRS201D:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL
  • 1 x PCIe x16 slot (Gen5 x8), FHHL

    • Gigabyte R263-S30 (Rev. AAH1)
    Riser Card CRS201C:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL
    • Riser Card CRS201D:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL

    • Gigabyte R263-S30 (Rev. AAH2)
    Riser Card CRS201C:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL
  • 1 x PCIe x16 slot (Gen5 x8), FHHL
    • Riser Card CRS201D:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL
  • 1 x PCIe x16 slot (Gen5 x8), FHHL
  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • Supported NCSI function

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4
  • Supports 2280/22110 cards
  • From PCH (C741)

Dimensions

    Height: 87.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 700mm (27.55")
