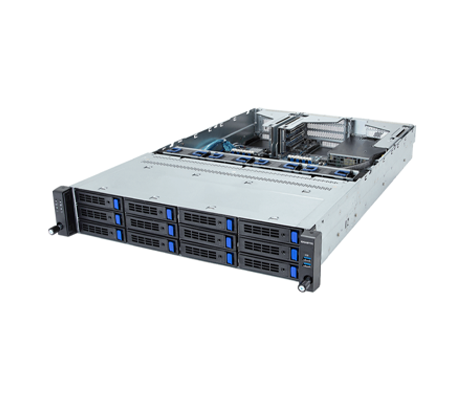

Supporting up to 3x dual slot Gen5 GPU cards, the Gigabyte R263-S33 Server features a single 5th generation Intel Xeon Scalable processor. The system also supports 4th generation Intel Xeon Scalable CPUs and Intel Xeon CPU Max Series. A maximum of 4TB of RAM is supported when 256GB 3DS RDIMM modules are installed, as opposed to up to 1TB of RAM when standard 96GB RDIMMs are loaded. Memory speeds vary depending on the type of memory modules used.
Designed for artificial intelligence, visual computing, networking and hybrid/private cloud server applications, the Gigabyte R263-S33 Server offers 3x riser cards for double-slot GPUs with PCIe x16 (Gen5 x16) full-height, full-length slots. CPUs with up to 64 cores and a maximum TDP of up to 350W are supported. The single socket has an 8-channel DDR5 memory architecture for up to 16x memory module slots. Memory speeds are dependent on not only the processor but the memory configuration.
5th Gen Intel Xeon: Up to 5600MHz (1DPC), 4400MHz (2DPC)
4th Gen Intel Xeon: Up to 4800MHz (1DPC), 4400MHz (2DPC)
Intel Xeon Max Series: Up to 4800MHz (1DPC), 4400MHz (2DPC)
There are two model revisions for this server with different types of power supplies.
1+1 2700W 80 PLUS Titanium redundant power supplies
1+1 2400W 80 PLUS Platinum redundant power supplies
Gigabyte R263-S33 Server - Specifications
Processor- 1 Socket
5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Intel Xeon CPU Max Series
Single processor, CPU TDP up to 350W
Socket 1 x LGA 4677 Socket E
Motherboard
MS33-DC0
Memory
Memory Slots
16x DDR5 DIMM slots
8-Channel memory architecture
Memory Speed
5th Gen Intel Xeon: Up to 5600MHz (1DPC), 4400MHz (2DPC)
4th Gen Intel Xeon: Up to 4800MHz (1DPC), 4400MHz (2DPC)
Intel Xeon Max Series: Up to 4800MHz (1DPC), 4400MHz (2DPC)
DIMM Module Sizes
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Drive Bays
12 x 3.5"/2.5" Gen4 SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
LAN
1 x 10/100/1000 Mbps management LAN (1 x Intel® I210-AT)
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output
Internal
1 x TPM header
1 x VROC connector

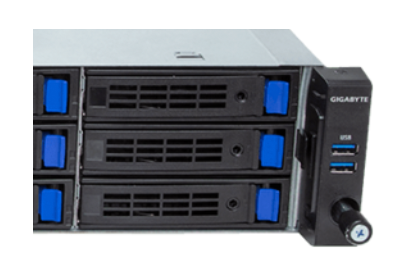

Front
2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x LAN activity LEDs
1 x System status LED
1 x HDD Activity LED

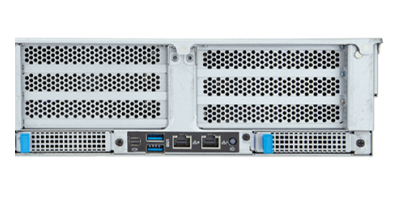

Rear
2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED
Backplane
Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Expansion Slots
Riser Card CRS201C:
1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU, for GPUs
Riser Card CRS201D:
1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU, for GPUs
Riser Card CRS2018:
1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU, for GPUs
2 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU
Supports NCSI function
1 x M.2 PCIe Gen3 x4 slot; Supports 2280/22110 cards
Chassis
Enclosure
Height: 87.5 mm
Width: 438 mm
Depth: 710 mm
Power Supply
1+1 2700W 80 PLUS Titanium redundant power supplies
System Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
