Gigabyte R263-S34 Server

The 2U Gigabyte R263-S34 Server is powered by a single 5th or 4th generation Intel Xeon Scalable processor, or Intel Xeon CPU Max series with a TDP of up to 350W. This platform supports up to 4TB of memory when all 16x memory module slots are populated with 256GB DDR5 3DS RDIMMs. Standard RDIMMs offer up to 1TB of memory with 96GB memory modules installed. Memory speeds vary depending on the CPU.
Configure

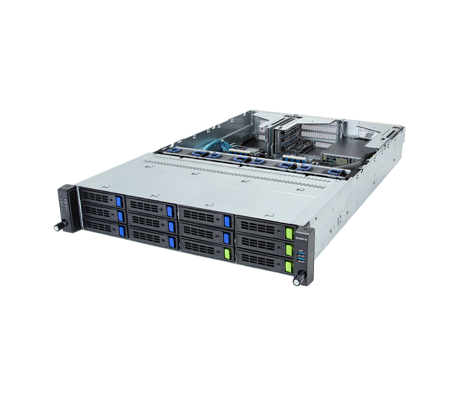

Gigabyte R263-S34 Server side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R263-S34 Server - System Overview

Gigabyte R263-S34 front

The front of the Intel-based chassis features and for 8x 3.5”/2.5” SATA/SAS4 hot-swappable drive bays with blue tabs and 4x 3.5”/2.5” Gen5 NVMe/SATA/SAS4 hot-swappable bays lime green tabs. Administrators are able to deploy 1x M.2 slot on the server board with a PCIe Gen3 x4 interface to boot the OS, preserving the up front drive bays. 2x riser cards, each with a FHHL PCIe Gen5 x16 slot provide additional options for hard drive or network interface controllers. Just below these slots there are 2 x OCP 3.0 Gen5 x16 slots. The server is powered by two 1300W 80 PLUS Platinum or Titanium power supplies, depending on the model revision.

Gigabyte R263-S34 (Rev. AAC1)
  • Dual 1300W 80 PLUS Platinum redundant power supply

Gigabyte R263-S34 (Rev. AAH1)
  • Dual 1300W 80 PLUS Titanium redundant power supply

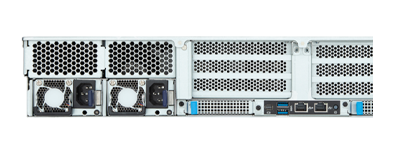

Gigabyte R263-S34 rear

Using the dedicated 1Gb/s LAN port via Intel I210-AT, the R263-S34 chassis can be monitored and controlled by Gigabyte’s proprietary software. The Gigabyte Management Console comes pre-installed and can manage one server or a small cluster, whereas the Gigabyte Server Management suite is available for download and can oversee multiple systems or a large cluster. Both tools can be used locally and remotely.

Gigabyte R263-S34 Server - Specifications

Processor- 1 Socket

  • 5th Generation Intel Xeon Scalable Processors
  • 4th Generation Intel Xeon Scalable Processors
  • Intel Xeon CPU Max Series
  • Socket: 1x LGA 4677 (Socket E)
  • Chipset: Intel C741
  • TDP up to 350W

Motherboard

  • MS33-DC0

Memory

    Memory Slots

  • 16x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory architecture

    • Memory Speed

  • 5th Gen Intel Xeon: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
  • 4th Gen Intel Xeon: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
  • Intel Xeon Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

    • DIMM Module Sizes

  • RDIMM up to 96GB supported
  • 3DS RDIMM up to 256GB supported

Drive Bays

    Front Side:

  • 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays, NVMe from CPU
  • 8 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays

LAN

    Rear Side:
  • 1 x 1Gb/s LAN ports (1 x Intel I210-AT)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp

Input / Output

    Internal

  • 1 x TPM header
  • 1 x VROC connector

    • Front

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED (1x LED disabled)
  • 1 x Storage activity LED
  • 1 x System status LED

    • Rear

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Riser Card CRS201C:

  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU

    • Riser Card CRS201D:

  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU

  • 2x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU

    • 1 x M.2 Slot:
  • M-key
  • PCIe Gen3 x4, from PCH
  • Supports 2280/22110 cards

Chassis

    2U Enclosure

    Height: 87.5 mm

    Width: 438 mm

    Depth: 710 mm

Power Supply

    Gigabyte R263-S34 (Rev. AAC1)
  • Dual 1300W 80 PLUS Platinum redundant power supply

    • Gigabyte R263-S34 (Rev. AAH1)
  • Dual 1300W 80 PLUS Titanium redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte R263-S34 Server - Documentation

Gigabyte R263-S34 Server User Manual Gigabyte R263-S34 Server Data Sheet Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
