Gigabyte R263-SG0 Server

The 2U, single-socket Gigabyte R263-SG0 server supports Intel Xeon Scalable processors from the 4th or 5th generation with up to 64 cores and a maximum TDP of 350W, plus Intel Xeon CPU Max Series with up to 56 cores. Featuring 8x memory channel architecture, the system has a total of 16x DDR5 DIMM slots. At full capacity those slots can provide up to 4TB of memory when 256GB 3DS RDIMMs are installed, as opposed to only 1TB of RAM when 96GB RDIMMs populated the slots. Depending on the type of CPU installed and configuration, memory speeds vary. 5th Gen supports up to 5600MT/s, 4th Gen supports 4800MT/s, and the Max series supports up to 4800MT/s.
Configure

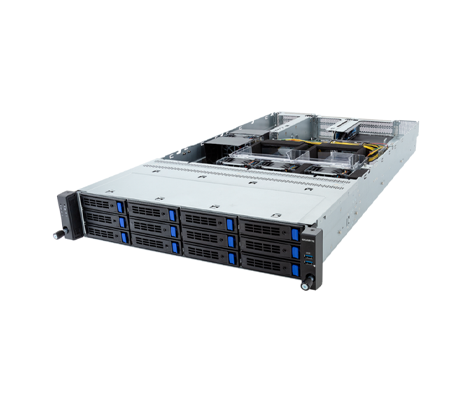

Gigabyte R263-SG0 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R263-SG0 Server - System Overview

Additional Information

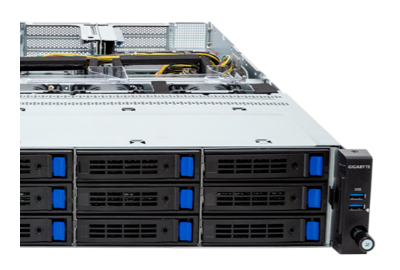

Gigabyte R263-SG0 Server drive bays

The front panel offers 12x 3.5" SATA/SAS4 hot-swappable drive bays compatible with 2.5" drive form factors. Meanwhile, the motherboard supports 1x M.2 slot with PCIe Gen3 x4 interface for a 2280 or 22110 card. Up to 4x FHFL PCIe Gen5 x16 slots are available, which can be outfitted with up to 4x dual slot GPUs from NVIDIA, AMD, Qualcomm, or XILINX. Additionally, the Gigabyte R263-SG0 supports 1x OCP 3.0 Gen5 x16 slot for optional network communications, which can be accessed through the rear of the system. Dual 2700W 80 PLUS Titanium power supplies offer 1+1 redundancy.

Gigabyte R263-SG0 Server rear view

The Aspeed AST2600 baseboard management controller (BMC), which provides for remote access of the system, is accessed through the integrated RJ45 management LAN port (mLAN). The AST2600 BMC works in conjunction with the Gigabyte Management Console, which uses an AMI MegaRAC SP-X web interface, enabling administrators to monitor and manage the system. For more management functions and a one-to-many software suite there’s Gigabyte Server Management or GSM.

Gigabyte R263-SG0 Server - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processors
  • 4th Generation Intel Xeon Scalable Processors
  • Intel Xeon CPU Max Series
  • Single processor, TDP up to 350W

    • Socket:

  • 1 x LGA 4677
  • Socket E

Motherboard

  • MSG3-GU0

Memory

    Memory Slots:

  • 16 x DIMM slots
  • 8-Channel memory architecture

    • Memory Type:

  • RDIMM
  • 3DS RDIMM

    • Memory Speed:

  • 5th Gen Intel® Xeon®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
  • 4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
  • Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

    • *5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

    DIMM Module Sizes:

  • RDIMM: Up to 96GB supported
  • 3DS RDIMM: Up to 256GB supported

Drive Bays

  • 12x 3.5"/2.5" SATA/SAS4 hot-swappable bays

    • *SAS card is required to support SAS drives support

LAN

    Rear Side:

  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp

Input / Output

    Internal

  • 1 x TPM header
  • 1 x VROC connector

    • Front:

  • 2 x USB 3.2 Gen1
  • 1 x VGA
  • 2 x RJ45
  • 1 x MLAN (default port)
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED
  • 1 x Storage activity LED

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x MLAN
  • 1 x ID LED

    • Backplane Board:

  • Speed and bandwidth: SATA 6Gb/s or SAS4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    Riser Card CRS202P:

  • 2 x PCIe x16 (Gen5 x16) FHFL slots, for GPUs

    • Riser Card CRS202Q:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs

    • Riser Card CRS201K:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs

    • 1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth

    1 x M.2 slot:

  • M-key
  • PCIe Gen3 x4, from PCH
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 87.5mm

    Width: 438mm

    Depth: 815mm

Power Supply

  • Dual 2700W 80 PLUS Titanium redundant power supply

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte R263-SG0 Server - Documentation

Gigabyte R263-SG0 Server Data Sheet Gigabyte R263-SG0 Server User Manual Gigabyte Server Management Console User's Guide Gigabyte GSM Agent Installation and Features Guide User's Manual Gigabyte GSM Server Installation and Configuration Guide Gigabyte Redfish API Specification AST2600 User Guide Gigabyte Easy BIOS Refresh User Guide
