Gigabyte R263-Z30 Server

The Gigabyte R263-Z30 server is available in 3 revisions, all of which support a single AMD EPYC 9004 or 9005 series family with a 5nm technology, up to 192 cores, and a cTDP of up to 300W. The system also supports a CPU 400W at ambient 30°C and dual reliable 80 PLUS Platinum 1300W PSUs. The R263-Z30 server offers 12x DIMM slots for up to 3TB of DDR5 RAM, supporting memory speeds of up to 4800MHz. An ultra-fast M.2 with PCIe Gen3 x4 interface is available in all 3 editions.
Configure

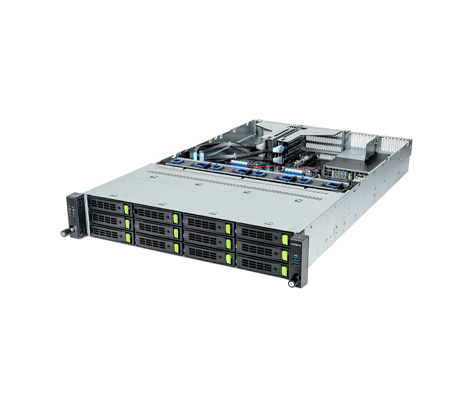

Gigabyte R263-Z30 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R263-Z30 Server - System Overview

Designed for standard networking applications such as, a virtual server, intranet host, and file storage, this platform has 3 revisions with different storage and power supply options.


Gigabyte R263-Z30 server front
Gigabyte R263-Z30 Server (Rev. AAC1)
  • 12 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply
Gigabyte R263-Z30 server drive cages
Gigabyte R263-Z30 Server (Rev. AAC2)
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R263-Z30 Server (Rev. AAH2)
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • Dual 1300W (240V) 80 PLUS Titanium redundant power supply

Gigabyte R263-Z30 Server - Specifications

Processor - 1-Socket

  • AMD EPYC 9005 series processor
  • AMD EPYC 9004 series processor
  • Single processor, 4nm technology
  • Up to 192 cores, 384 threads per processor
  • cTDP up to 300W
  • Supports CPU 400W at ambient 30°C
  • LGA 6096, Socket SP5
  • System on Chip

Memory

  • 12x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

    Gigabyte R263-Z30 (Rev. AAC1)
  • 12 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

    • Gigabyte R263-Z30 (Rev. AAC2)
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays

    • Gigabyte R263-Z30 (Rev. AAH2)
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
    • *SAS card is required for SAS devices support

Power Supplies

    Gigabyte R263-Z30 (Rev. AAC1)
  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R263-Z30 (Rev. AAC2)
  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R263-Z30 (Rev. AAH2)
  • Dual 1300W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x M.2 slot (2280/22110)
  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots PCIe Gen5 x16

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front Side Backplane P/N: 9CBP20C5NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Riser Card CRS201M:
  • 1 x PCIe x16 slot (Gen5 x16), FHFL

    • Riser Card CRS201H:
  • 1 x PCIe x16 slot (Gen5 x16), FHFL

  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • Supported NCSI function

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4
  • Supports 2280/22110 cards

Dimensions

    Height: 87.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 700mm (27.55")
