Gigabyte R263-Z32 Server

Featuring a single processor from the AMD EPYC 9004 series family, the Gigabyte R263-Z32 server comes in 2 different revisions with support for 24x 2.5” Gen4 NVMe, SATA or SAS drive bays. This system features 2x PCIe Gen5 x16 expansion slots, as well as 2x PCIe Gen4 x8 expansion slots. In addition, 12-channel memory architecture provides for up to 3TB of memory with all 12x DIMM slots on the R263-Z32 loaded with Registered DIMMS (RDIMM).
Configure

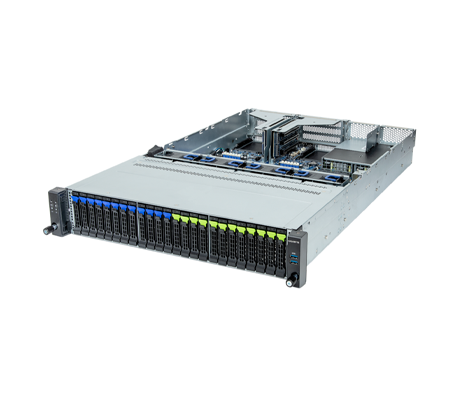

Gigabyte R263-Z32 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R263-Z32 Server - System Overview

The system has strong processing capabilities, adaptable storage options, and dependable platinum rated power supply units for usage as a virtual server, intranet host, and general file storage. There are 2 revisions with different storage and power supply options.



Gigabyte R263-Z32 Server (rev. AAC1)
  • 8 x 2.5" Gen4 NVMe hot-swappable bays
  • 16 x 2.5" SATA/SAS hot-swappable bays
  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R263-Z32 Server (rev. AAD1)
  • 12 x 2.5" Gen4 NVMe hot-swappable bays
  • 12 x 2.5" SATA/SAS hot-swappable bays
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

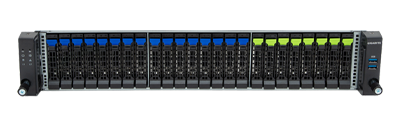

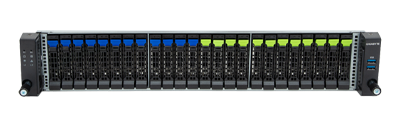

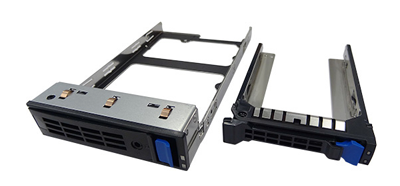

Gigabyte R263-Z32 server front Gigabyte R263-Z32 server front Gigabyte R263-Z32 server drive cages

Gigabyte R263-Z32 Server - Specifications

Processor - 1-Socket

  • AMD EPYC™ 9004 series processor family
  • Single processor, 5nm technology
  • Up to 96-core, 192 threads per processor
  • cTDP up to 360W
  • Supports CPU 400W at ambient 30°C
  • LGA 6096, Socket SP5
  • System on Chip

Memory

  • 12x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

    Gigabyte R263-Z32 (rev. AAC1)
  • 8 x 2.5" Gen4 NVMe hot-swappable bays
  • 16 x 2.5" SATA/SAS hot-swappable bays

    • Gigabyte R263-Z32 (rev. AAD1)
  • 12 x 2.5" Gen4 NVMe hot-swappable bays
  • 12 x 2.5" SATA/SAS hot-swappable bays
    • *SAS card is required for SAS devices support

Power Supplies

    Gigabyte R263-Z32 (rev. AAC1)
  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R263-Z32 (rev. AAD1)
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x M.2 slot (2280/22110)
  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots Gen5 x16

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 1 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Backplane P/N: 9CBP20O7NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Expansion Slots

    Riser Card CRS201M:
  • 1 x PCIe x16 slot (Gen5 x16), FHFL
  • 1 x PCIe x16 slot (Gen4 x8), FHHL

    • Riser Card CRS201H:
  • 1 x PCIe x16 slot (Gen5 x16), FHFL
  • 1 x PCIe x16 slot (Gen4 x8), FHHL

  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • Supported NCSI function

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4
  • Supports 2280/22110 cards

Dimensions

    Height: 87.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 700mm (27.55")

Gigabyte R263-Z32 Server - Documentation

Gigabyte R263-Z32 Server User Manual Gigabyte R263-Z32 Server rev. AAC1 Data Sheet Gigabyte R263-Z32 Server rev. AAD1 Data Sheet Gigabyte R263-Z32 Server OS Support List Gigabyte R263-Z32 Server Qualified Vender List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide Gigabyte GSM Server Installation and Configuration Guide
