Gigabyte R263-Z33 Server

This machine is built with a single AMD EPYC 9004 series CPU providing up to 96 cores and 192 threads, the Gigabyte R263-Z33 server system offers up to 3TB of DDR5 memory and support for 2x double-wide GPUs. Standard 3DS Registered DIMMs (RDIMM) and standard RDIMMs are also compatible but RDIMMs will provide half the memory at capacity. On the front panel, there are 12x drive bays that can be outfitted with 3.5” or 2.5” form factor drives. These storage bays support Gen4 NVMe, SATA, or SAS hot-swappable bays, enabling fast and efficient data processing. Dual 2400W (240V) 80 PLUS Platinum redundant power supplies power the system.
Configure

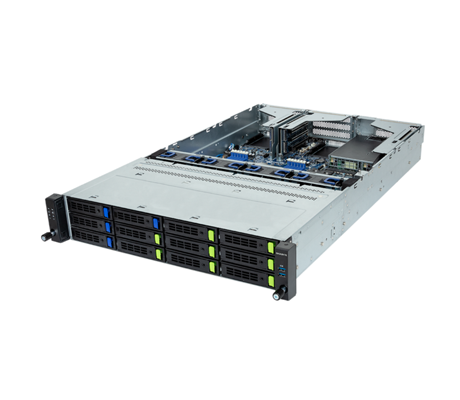

Gigabyte R263-Z33 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R263-Z33 Server - System Overview

The Gigabyte R263-Z33 server is a reliable system designed for AI, AI Training, visual computing, and other high-performance computing applications.

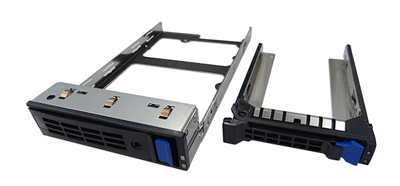

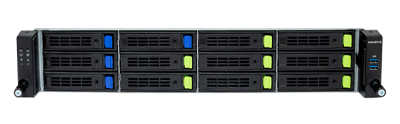

Gigabyte R263-Z33 server front Gigabyte R263-Z33 server drive cages

Available Configurations

Explore available configurations for the Gigabyte R263-Z33 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R263-Z33 Server - Specifications

Processor - 1-Socket

  • AMD EPYC™ 9004 series processor family
  • Single processor, 5nm technology
  • Up to 96-core, 192 threads per processor
  • cTDP up to 320W
  • Supports CPU 360W at ambient 30°C
  • Supports CPU 400W at ambient 20°C
  • LGA 6096, Socket SP5
  • System on Chip

Memory

  • 12x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

  • 8 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x 3.5/2.5" SATA/SAS hot-swappable bays
    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 2400W (240V) 80 PLUS Platinum redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x M.2 slot (2280/22110)
  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots Gen5 x16

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front Side Backplane P/N: 9CBP20C5NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s on front side

Expansion Slots

    Riser Card CRS201M:
  • 1 x PCIe x16 slot (Gen5 x16), FHFL

    • Riser Card CRS201H:
  • 1 x PCIe x16 slot (Gen5 x16), FHFL

    • Riser Card CRS2018:
  • 1 x PCIe x16 slot (Gen4 x16), FHHL

  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • Supported NCSI function

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4
  • Supports 2280/22110 cards

Dimensions

    Height: 87.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 700mm (27.55")

Gigabyte R263-Z33 Server - Documentation

Gigabyte R263-Z33 Server User Manual Gigabyte R263-Z33 Server OS Support List Gigabyte R263-Z33 Server Qualified Vender List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide Gigabyte GSM Server Installation and Configuration Guide
