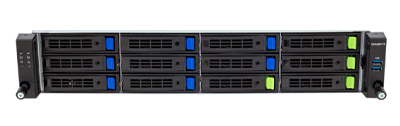

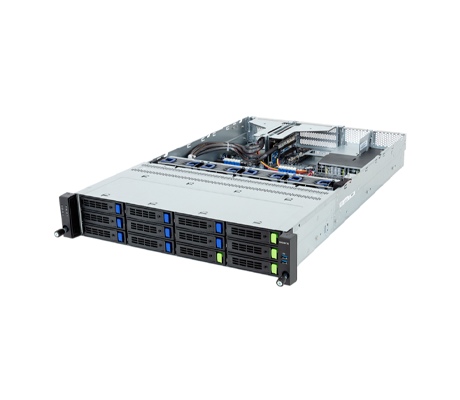

The 12-bay Gigabyte R263-Z34 Server supports LFF or SFF hot-swap drive bays on the front panel. 8x of these storage bays support SATA/SAS4 drive bays and the remaining 4x support Gen5 NVMe/SATA/SAS4 bays. SAS drives will require a SAS add-in card. To save a drive bay on the front, administrators can use the 1x M.2 slot on the motherboard with a PCIe Gen3 x4 interface to boot the operating system. The single socket platform can be outfitted with an AMD EPYC 9005 or 9004-series processor.

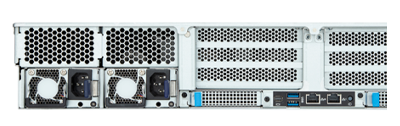

This 2U platform offers 4x FHHL PCIe Gen5 x16 slots by way of 2x riser cards and 2x PCIe cables. In addition to the expansion slots, the Gigabyte R263-Z34 delivers 2x OCP NIC 3.0 PCIe Gen5 x16 slots, which can be found directly under the full-height, half-length slots on the rear of the system. Up to 1TB of DDR5 RDIMM memory is supported when all 12x memory module slots are populated with 128GB DIMMs. When 5th generation CPUs are installed, speeds of up to 6000 MT/s can be reached as opposed to 4800 MT/s with 4th generation CPUs installed. Depending on the model revision, the server is powered by dual 1300W 80 PLUS Platinum or Titanium power supplies.
Gigabyte R263-Z34 (AAC1 Rev. 3.x)
Dual 1300W 80 PLUS Platinum redundant power supply
Gigabyte R263-Z34 (AAH1 Rev. 3.x)
Dual 1300W 80 PLUS Titanium redundant power supply
A dedicated his Gigabyte chassis can be monitored and managed using Gigabytes management software suites. the pre-installed Gigabyte Management Console can be used for a single server or small cluster of servers. Using the Gigabyte Server Management suite, Administrators can manage many servers or large server clusters. Both tools can be used at-chassis or remotely.
Gigabyte R263-Z34 Server - Specifications
Processor- 1 Socket
AMD EPYC 9005 Series Processors
AMD EPYC 9004 Series Processors
Single processor, cTDP up to 400W
Socket: 1x LGA 6096 (Socket SP5)
Chipset: System on Chip
At 25°C ambient, cTDP up to 500W
At 30°C ambient, cTDP up to 500W with optional heatsink
Motherboard
MZ33-DC1
Memory
Memory Slots
12x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
Memory Speed
AMD EPYC 9005: RDIMM: Up to 6000 MT/s
AMD EPYC 9004: RDIMM: Up to 4800 MT/s
Drive Bays
Front Hot-Swap:
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
8 x 3.5"/2.5" SATA/SAS-4
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4
SAS card is required to support SAS drives
LAN
Rear Side:
1 x 1Gb/s LAN ports (1 x Intel I210-AT)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
1x Mini-DP
Input / Output
Front
2 x USB 3.2 Gen1 ports (Type A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LED (1x LED disabled)
1 x Storage activity LED
1 x System status LED
Rear
2 x USB 3.2 Gen1 ports (Type A)
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED
Backplane
Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM012
Expansion Slots
Riser Card CRC1012:
1 x FHHL x16 (Gen5 x16)
Riser Card CRC1013:
1 x FHHL x16 (Gen5 x16)
PCIe Cable x2:
2 x FHHL x16 (Gen5 x16)
2x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
Chassis
2U Enclosure
Height: 87.5 mm
Width: 438 mm
Depth: 710 mm
Power Supply
Gigabyte R263-Z34 (AAC1 Rev. 3.x)
Dual 1300W 80 PLUS Platinum redundant power supply
Gigabyte R263-Z34 (AAH1 Rev. 3.x)
Dual 1300W 80 PLUS Titanium redundant power supply
System Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
