Gigabyte R263-Z35 Server

The 2U Gigabyte R263-Z35 Server features up to 3x dual slot PCIe Gen5 x16 slots for full-height, full-length GPUs. The single socket system supports an AMD EPYC 9005 or 9004 series processor with a cTDP of up to 400W. These CPUs deliver up to 1TB of memory when all 12x DDR5 memory module slots are filled with 128GB RDIMMs. With 5th generation CPUs installed, memory speeds can reach up to 6000 MT/s, whereas 4th generation CPUs only support up to 4800 MT/s.
Configure

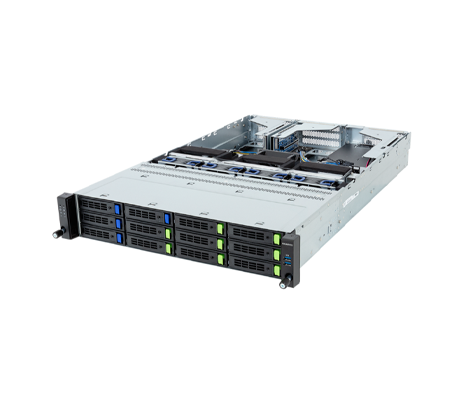

Gigabyte R263-Z35 Server side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R263-Z35 Server - System Overview

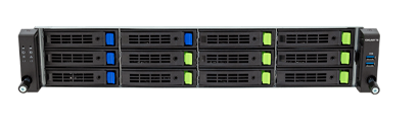

Gigabyte R263-Z35 server front

A total of 12x drive bays are available on the front of the Gigabyte R263-Z35, in which 8x support 3.5"/2.5" hot-swap drive bays with Gen5 NVMe/SATA/SAS4 configurations and the remaining 4x 3.5"/2.5" support SATA/SAS4 hot-swap bays. Under the hood, the system offers 1x M.2 slot with a PCIe Gen3 x4 interface to boot the operating system. Aside from the expansion slots, this machine also provides 2x OCP 3.0 Gen5 x16 slot with support for NCSI functions. The server is powered by redundant 2400W 80 PLUS Platinum or 2700W 80 PLUS Titanium power supplies, depending on the model revision.

Gigabyte R263-Z35 (AAF1 Rev. 1.x)
  • 1+1 2400W 80 PLUS Platinum redundant power supplies

Gigabyte R263-Z35 (AAF1 Rev. 3.x)
  • 1+1 2400W 80 PLUS Platinum redundant power supplies

Gigabyte R263-Z35 (AAL1 Rev. 3.x)
  • 1+1 2700W 80 PLUS Titanium redundant power supplies

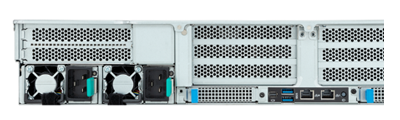

Gigabyte R263-Z35 server rear

To manage the system’s health, Gigabyte offers two software management tools at no cost. These software programs can be used at-chassis or remotely on web-browsers or through iOS or Android applications. The Gigabyte Management Console is pre-installed and can monitor a single server or a small cluster. Similarly, the Gigabyte Server Management suite is available for download and can help monitor and manage multiple servers or large server clusters. GSM Plugin, GSM Agent, GSM CLI, and GSM Mobile are among the available utilities.

Available Configurations

Explore available configurations for the Gigabyte R263-Z35 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R263-Z35 Server - Specifications

Processor- 1 Socket

  • AMD EPYC 9005 Series Processors
  • AMD EPYC 9004 Series Processors
  • Single processor, cTDP up to 400W
  • Socket: 1x LGA 6096 (Socket SP5)
  • Chipset: System on Chip

Motherboard

  • MZ33-DC1

Memory

    Memory Slots

  • 12x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory architecture

    • Memory Speed

  • AMD EPYC 9005: RDIMM: Up to 6000 MT/s
  • AMD EPYC 9004: RDIMM: Up to 4800 MT/s

Drive Bays

    Front Hot-Swap:

  • 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
  • 4 x 3.5"/2.5" SATA/SAS-4

    • Internal M.2:

  • 1 x M.2 (2280/22110), PCIe Gen3 x4

    • SAS card is required to support SAS drives

LAN

    Rear:
  • 1 x 1Gb/s LAN ports (1 x Intel I210-AT)
  • Support NCSI function
  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 1x Mini-DP

Input / Output

    Front

  • 2 x USB 3.2 Gen1 ports (Type A)
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED (1x LED disabled)
  • 1 x Storage activity LED
  • 1 x System status LED

    • Rear

  • 2 x USB 3.2 Gen1 ports (Type A)
  • 1 x Mini-DP
  • 1 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM012

Expansion Slots

    Riser Card CRS201H:

  • 1 x FHFL x16 (Gen5 x16), for GPUs

    • Riser Card CRS201M:

  • 1 x FHFL x16 (Gen5 x16), for GPUs

    • PCIe Cable:

  • 1 x FHFL x16 (Gen5 x16), for GPUs

  • 2x OCP 3.0 slots with PCIe Gen5 x16 bandwidth

Chassis

    2U Enclosure

    Height: 87.5 mm

    Width: 438 mm

    Depth: 710 mm

Power Supply

    Gigabyte R263-Z35 (AAF1 Rev. 1.x)
  • 1+1 2400W 80 PLUS Platinum redundant power supplies

    • Gigabyte R263-Z35 (AAF1 Rev. 3.x)
  • 1+1 2400W 80 PLUS Platinum redundant power supplies

    • Gigabyte R263-Z35 (AAL1 Rev. 3.x)
  • 1+1 2700W 80 PLUS Titanium redundant power supplies

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Gigabyte R263-Z35 Server - Documentation

Gigabyte R263-Z35 Server User Manual Gigabyte R263-Z35 Server Data Sheet Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
