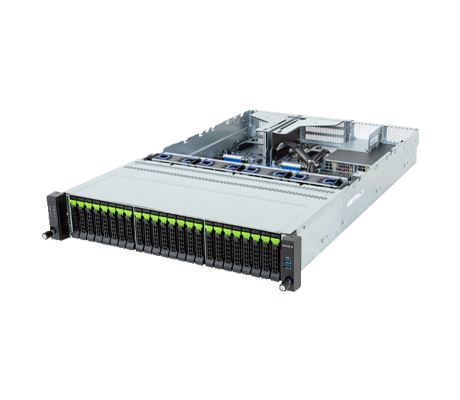

The single socket Gigabyte R263-Z36 Server features an AMD EPYC 9005 or 9004 series processor with up to 192 cores and a cTDP of up to 500W at 30°C ambient with an optional heatsink. The front of the system supports 24x 2.5" Gen5 NVMe hot-swap drive bays, meanwhile the motherboard offers a single M.2 PCIe Gen3 x4 for 2280 or 22110 form factor cards. This machine can be powered by redundant 2000W power supplies, depending on the model revision.
Offering a 12-channel memory architecture, the Gigabyte R263-Z36 supports up to 1TB of memory when all 12x DDR5 DIMM slots are populated with 128GB RDIMMs. The system delivers optional RAID using NVMe and NVMe over Fabric (NVMe-oF) with SupremeRAID by Graid Technology, as well as a riser card with 1x Gen5 x16 FHHL slot. Just below this slot, there are 2x OCP 3.0 Gen5 x16 mezzanine card slots with one used to support the NVMe drives up front.
Gigabyte R263-Z36 (AAE1 Rev. 3.x)
1+1 2000W 80 PLUS Platinum redundant power supplies
Gigabyte R263-Z36 (AAD1 Rev. 3.x)
1+1 1600W 80 PLUS Platinum redundant power supplies
Gigabyte R263-Z36 (AAV1 Rev. 3.x)
1+1 1600W 80 PLUS Titanium redundant power supplies
Gigabyte R263-Z36 (AAJ1 Rev. 3.x)
1+1 2000W 80 PLUS Titanium redundant power supplies
To manage the R263-Z36, Gigabyte offers two free-of-charge management tools which can be used at-chassis or remotely. The Gigabyte Management Console is pre-installed and can monitor and manage the system through a browser-based user interface. The Gigabyte Server Management (GSM) is available through download and can manage a large cluster of servers and complies with IPMI and Redfish standards. GSM mobile works with a smartphone or tablet and is compatible with iOS or Android operating systems.
Gigabyte R263-Z36 Server - Specifications
Processor- 1 Socket
AMD EPYC 9005 Series Processors
AMD EPYC 9004 Series Processors
Single processor, cTDP up to 400W
Socket: 1x LGA 6096 (Socket SP5)
Chipset: System on Chip
Motherboard
MZ33-DC1
Memory
Memory Slots
12x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
Memory Speed
AMD EPYC 9005: RDIMM: Up to 6000 MT/s
AMD EPYC 9004: RDIMM: Up to 4800 MT/s
Drive Bays
Front Hot-Swap:
24 x 2.5" Gen5 NVMe*
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4
*Only NVMe supported
LAN
Rear:
1 x 1Gb/s LAN ports (1 x Intel I210-AT)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
1x Mini-DP
Input / Output

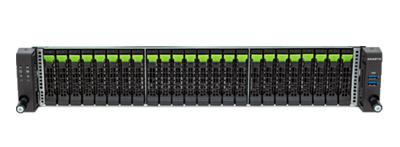

Front
2 x USB 3.2 Gen1 ports (Type A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LED (1x LED disabled)
1 x Storage activity LED
1 x System status LED

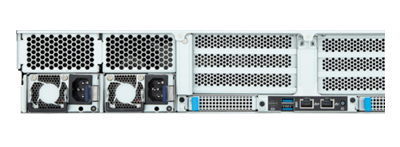

Rear
2 x USB 3.2 Gen1 ports (Type A)
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED
Backplane
Speed and bandwidth: PCIe Gen5 x4
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM012
Expansion Slots
Riser Card CRS201M:
1 x FHHL x16 (Gen5 x16)
1 x OCP NIC 3.0 (Gen5 x16)
1 x OCP NIC 3.0 (Gen5 x16), occupied for NVMe
Chassis
2U Enclosure
Height: 87.5 mm
Width: 438 mm
Depth: 710 mm
Power Supply
Gigabyte R263-Z36 (AAE1 Rev. 3.x)
1+1 2000W 80 PLUS Platinum redundant power supplies
Gigabyte R263-Z36 (AAD1 Rev. 3.x)
1+1 1600W 80 PLUS Platinum redundant power supplies
Gigabyte R263-Z36 (AAV1 Rev. 3.x)
1+1 1600W 80 PLUS Titanium redundant power supplies
Gigabyte R263-Z36 (AAJ1 Rev. 3.x)
1+1 2000W 80 PLUS Titanium redundant power supplies
System Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
