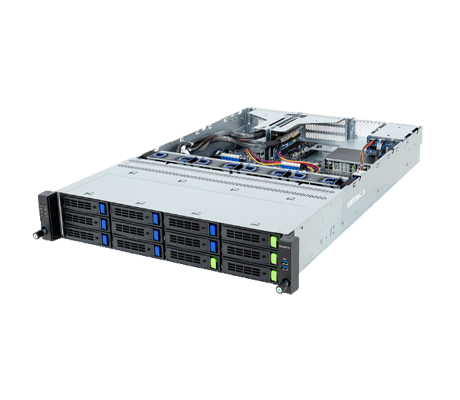

Gigabyte R263-Z37 Server

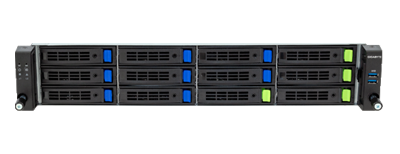

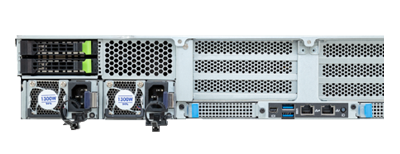

The 14-bay Gigabyte R263-Z37 Server supports a single AMD EPYC 9005 or 9004 series processor with a cTDP of up to 500W. The front of the platform holds 8x 3.5" SATA or SAS4 drive bays, plus 4x 3.5" Gen5 NVMe/SATA/SAS4 bays. All bays are compatible with 2.5-inch form factors. 2x more 2.5” Gen5 NVMe drive bays can be found on the rear of the system. Under the hood, administrators have the option to boot the operating system using a single M.2 PCIe Gen3 x4 slot fit for 2280 and 22110 form factor cards. A storage card is required to support SATA and SAS drives.

Overview

Gigabyte R263-Z37 Server - System Overview

The 2U Gigabyte R263-Z37 is ideal for networking applications. The 12-channel memory architecture supports 12x DDR5 RDIMMs. It supports memory speeds of up to 4800 MT/s when an AMD EPYC 9004 series CPU is installed, but up to 6000 MT/s with a 9005 series CPU. This system is powered by 1+1 1300W 80 PLUS Platinum redundant power supplies. For network expansion, the system features 2x riser cards, each with 1x FHHL x16 (Gen5 x16) slots. In addition, this machine also provides 2x PCIe cables for 2x Gen5 x16 FHHL slots, plus 2x OCP NIC 3.0 Gen5 x16 slots.

There are several options to manage the R263-Z37 server including Gigabyte’s free-of-cost management tools: Gigabyte Server Management and Gigabyte Management Console. Both programs allow administrators to control systems locally and remotely in the event there is a failure. The Gigabyte Management Console comes pre-installed and can manage one server or a small cluster, whereas the Gigabyte Server Management (GSM) suite can oversee multiple systems or a large server cluster.

Specifications

Gigabyte R263-Z37 Server - Specifications

Processor- 1 Socket

AMD EPYC 9005 Series Processors
AMD EPYC 9004 Series Processors
Single processor, cTDP up to 300W
Socket: 1x LGA 6096 (Socket SP5)
Chipset: System on Chip

Single processor, cTDP up to 400W
At 25°C ambient, cTDP up to 500W
At 30°C ambient, cTDP up to 500W with optional heatsink

Motherboard

MZ33-DC1

Memory

12x DIMM slots
DDR5 memory supported only
12-Channel memory architecture

Memory Speed

Rev. 1.x

RDIMM: Up to 4800 MT/s

Rev. 3.x

AMD EPYC 9005:

RDIMM: Up to 6000 MT/s

RDIMM: Up to 4800 MT/s

Drive Bays

Front Hot-Swap:

4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
8 x 3.5"/2.5" SATA/SAS-4

Rear Hot-Swap:

2 x 2.5" Gen5 NVMe*

Internal M.2:

1 x M.2 (2280/22110), PCIe Gen3 x4

LAN

1 x 1Gb/s LAN ports (1 x Intel I210-AT)
Support NCSI function
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed AST2600
1x Mini-DP

Input / Output

Front

2 x USB 3.2 Gen1 ports (Type A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LED (1x LED disabled)
1 x Storage activity LED
1 x System status LED

Rear

2 x USB 3.2 Gen1 ports (Type A)
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED

Backplane

Speed and bandwidth: PCIe Gen5 x4

Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: PCIe Gen5 x4

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Expansion Slots

Riser Card CRC1012:

1 x FHHL x16 (Gen5 x16)

Riser Card CRC1013:

1 x FHHL x16 (Gen5 x16)

PCIe Cable x2:

2 x FHHL x16 (Gen5 x16)

2 x OCP NIC 3.0 (Gen5 x16)
Support NCSI function

Chassis

Height: 87.5 mm

Width: 438 mm

Depth: 710 mm

Power Supply

1+1 1300W 80 PLUS Platinum redundant power supplies

System Management

Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Documentation

Gigabyte R263-Z37 Server - Documentation

Gigabyte R263-Z37 Server User Manual Gigabyte R263-Z37 Server Data Sheet Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Server Management Console User Guide Gigabyte Redfish API Specification User Guide
