Gigabyte R264-S33 Server

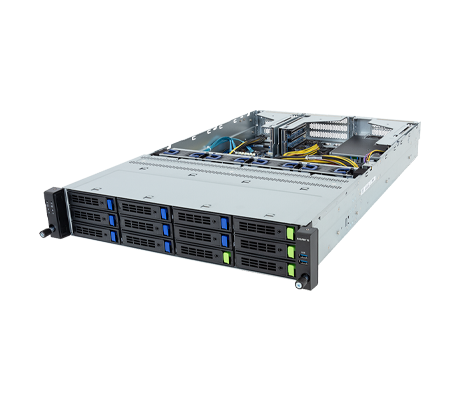

Designed for AI, visual computing, and as a hybrid/private cloud platform, the Gigabyte R264-S33 server supports up to 3x dual slot Gen5 GPUs. The drive bays on the front of the chassis can be configured with 3.5” or 2.5” drive form factors. Up to 4x Gen5 NVMe, SATA, or SAS4 plus 8x SATA or SAS4 drives can be installed. The system also supports a single M.2 slot with a PCIe Gen5 x2 link interface. At the heart of the system is a single 6700E-series, 6700P-series, or 6500P-series Intel Xeon 6 processor.

Overview

Gigabyte R264-S33 Server - System Overview

The Gigabyte R264-S33 features an 8-channel memory architecture supporting 16x DIMM slots. Compatible memory includes DDR5 Registered DIMMs (RDIMM) or multiplexer Combined Rank DIMMs (MCR DIMM). DDR5 RDIMMs provide data transfer rates of up to 6400 MT/s (1DPC) or 5200 MT/s (2DPC). MCR DIMMs will provide data transfer rates of up to 8000 MT/s, but only in a 1DPC configuration with CPUs featuring P-cores. Additionally, administrators have access to 3x FHHL PCIe Gen5 x16 slots via 3x different riser cards for dual-slot GPU support, and 1x OCP 3.0 Gen5 x16 slot accessible from the rear of the server.

As with all Gigabyte servers, the R264-S33 is equipped with the pre-installed Gigabyte Management Console, making it perfect for value-added management of a single system or small clusters. For larger setups, Gigabyte offers the Gigabyte Server Management (GSM) tool, which allows for real-time monitoring and management of server health via a user-friendly, browser-based interface remotely. The platform offers dual redundant 2700W 80 Plus Titanium power supplies located on the back of the chassis.

Specifications

Gigabyte R264-S33 Server - Specifications

Processor - Single Socket

Intel Xeon 6 Processor
Intel Xeon 6700 series E-Cores
Intel Xeon 6700 series P-Cores (available Q1'25)
Intel Xeon 6500 series P-Cores (available Q1'25)
Single processor, TDP up to 350W

1 x LGA 4710
Socket E2
System on Chip
Motherboard: MS34-DC0

Memory

16x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

Storage

4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
8 x 3.5"/2.5" SATA/SAS-4

1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, disabled for SATA

LAN

1 x 1Gb/s LAN (1 x Intel I210-AT)
Supports NCSI function
1 x 10/100/1000 Mbps Management LAN

Power Supplies

1+1 2700W 80 PLUS Titanium redundant power supplies

I/O

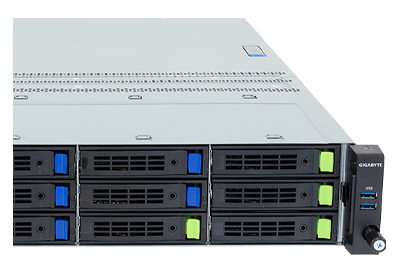

Front I/O

2 x USB 3.2 Gen1 ports (Type A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (1x LED disabled)
1 x Storage activity LED
1 x System status LED

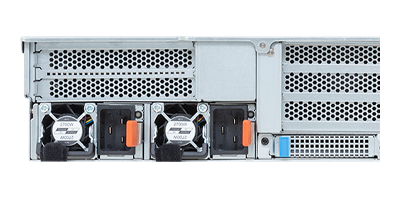

Rear I/O

2 x USB 3.2 Gen1 ports (Type A)
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED

Backplane I/O

PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

Expansion Slots

1 x FHFL x16 (Gen5 x16), for GPUs

1 x FHFL x16 (Gen5 x16), for GPUs

1 x FHFL x16 (Gen5 x16), for GPUs

1 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
1 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, disabled for NVMe
Support NCSI function

Dimensions

Documentation

Gigabyte R264-S33 Server - Documentation

Gigabyte R264-S33 Server Data Sheet (rev.AAL1) Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
