Gigabyte R264-SG0 Server

The Intel-based Gigabyte R264-SG0 Server supports a single Intel Xeon 6 processor from the 6700E-series, 6700P-series, and the 6500P-series with a maximum TDP of 350W. With an 8-channel memory architecture and 16x DIMM slots it can support 2 DIMMs per Channel (2DPC). Supported memory includes DDR5 RDIMMs and Multiplexer Combined Ranks DIMMs or MCR DIMMs. RDIMMs deliver speeds of up to 6400 MT/s. Using MCR DIMMs memory speed is up to 8000 MT/s. MCR DIMMs are only supported with Intel Xeon 6 CPUs with P-Cores in a 1DPC configuration.

Overview

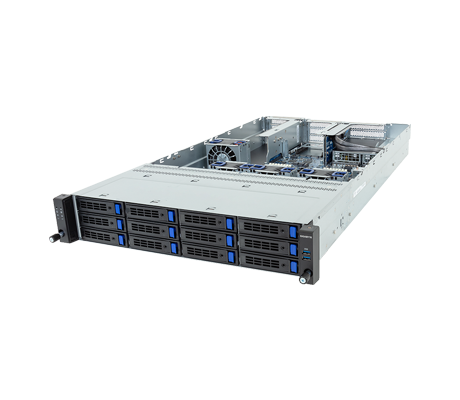

Gigabyte R264-SG0 Server - System Overview

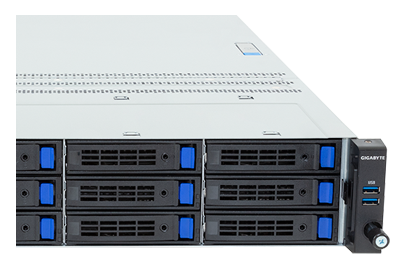

Built for AI, visual computing, networking, use as a hybrid/private cloud server, and more, the 2U Gigabyte R264-SG0 offers 12x 3.5-inch SATA or SAS drive bays that can be configured with 2.5-inch drive form factors. The drive backplane supports SATA at up to 6Gb/s while SAS-4 drives connect to a 24Gb/s link interface. Similarly, there is 1x M.2 slot with a PCIe Gen5 x2 link interface. The system features 3x riser cards for 4x FHFL Gen5 x16 slots for dual slot Gen5 GPUs. A single 1x OCP 3.0 Gen5 x16 slot is also available offering advanced NIC options.

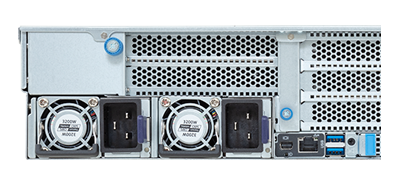

On the back of the chassis there are dual 3200W 80 Plus Titanium redundant power supplies. The R264-SG0 can be managed by Gigabyte’s proprietary management software, which comes pre-installed in all servers. The Gigabyte Management Console is ideal for managing individual systems or small clusters whereas the Gigabyte Server Management (GSM) tool can handle larger deployments by enabling real-time monitoring and management of server health through an intuitive, web-based interface.

Specifications

Gigabyte R264-SG0 Server - Specifications

Processor - Single Socket

Intel Xeon 6 Processor
Intel Xeon 6700 series E-Cores
Intel Xeon 6700 series P-Cores (available Q1'25)
Intel Xeon 6500 series P-Cores (available Q1'25)
Single processor, TDP up to 350W

1 x LGA 4710
Socket E2
System on Chip
Motherboard: MSG4-GU0

Memory

16x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

Storage

12 x 3.5"/2.5" SATA/SAS4

1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, disabled for SATA

LAN

1 x 10/100/1000 Mbps Management LAN

Power Supplies

1+1 3200W 80 PLUS Titanium redundant power supplies

I/O

Front I/O

2 x USB 3.2 Gen1 ports (Type A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1 ports (Type A)
1 x Mini-DP
1 x MLAN port
1 x ID LED

Backplane I/O

SATA 6Gb/s or SAS-4 24Gb/s

Expansion Slots

2 x FHFL x16 (Gen5 x16), for GPUs

1 x FHFL x16 (Gen5 x16), for GPUs

1 x FHFL x16 (Gen5 x16), for GPUs

1 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
Support NCSI function

Dimensions

Documentation

Gigabyte R264-SG0 Server - Documentation

Gigabyte R264-SG0 Server Data Sheet (rev.AAS1) Gigabyte R264-SG0 Server User Manual Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte Redfish API Specification User Guide Gigabyte Server Management Console User Guide
