Gigabyte R265-DG0 Server

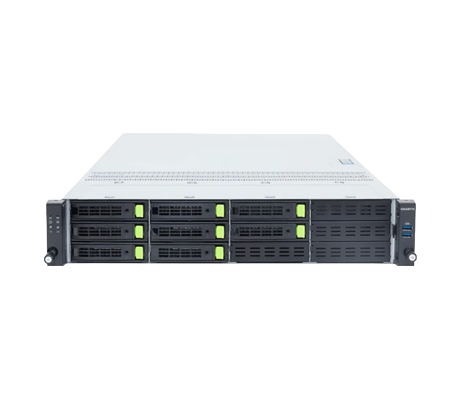

Offering a datacenter-ready Secure Control Module (DC-SCM) for management and security, the Gigabyte R265-DG0-AS1 Server can be used to support AI, Visual Computing, Networking and more. This system features 8x 3.5” hot-swap drive bays for Gen5 NVMe, SATA, or SAS4 drive types. For compute, the system has a single AMD EPYC 9006 SP7 processor with a PPT of up to 600W, which can support up to 256 physical cores and 512 virtual threads.

Overview

Gigabyte R265-DG0 Server - System Overview

Additional Information

Memory supported on the Gigabyte R265-DG0-AS1 Server includes up to 16x DDR5 RDIMM or Multiplexed Rank DIMM (MRDIMM) modules. Using MRDIMM modules memory speeds of up to 12800MT/s or up to 8000MT/s using RDIMMs. The system has 2x 1Gb/s LAN ports and a dedicated management LAN port for remote management of the system.

PCIe Expansion Slots

- 2 x FHFL x16 (Gen6 x16), for GPUs
- 1 x FHHL x16 (Gen6 x16)
- 2 x FHHL x8 (Gen6 x8)

Using the Full-Height, Full-Length slots, this system can support up to 2x dual-slot Gen6 double-wide GPUs. The other slots can be used for high-speed NICs, or storage controllers. The system is powered by dual 3200W 80 Plus Titanium power supplies units (PSU). However, depending on configuration, alternative PSUs are available.

Available Configurations

Explore available configurations for the Gigabyte R265-DG0 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R265-DG0 AI, AI Inference, Visual Computing, Networking, Hybrid/Private Cloud Server R265-DG0-AS1

Specifications

Gigabyte R265-DG0 Server - Specifications

Processor

- AMD EPYC 9006 SP7 Server processors
- Single Processor, PPT up to 600W
- 1x LGA 7536
- Socket SP7
- Motherboard: MDG5-GU0
- Chipset: Integrated into SoC

Memory

- 16x DIMM slots
- Support DDR5 RDIMM/MRDIMM*
- 16-Channel memory per processor

- RDIMM: Up to 8000 MT/s
- MRDIMM: Up to 12800 MT/s

*MRDIMMs are supported only on select CPU SKUs.

Storage

Front hot-swap:
- 8x 3.5"/2.5" Gen5 NVMe/SATA/SAS4*

Internal M.2:
- 2x M.2 (2280/22110), PCIe Gen4 x2

*Storage card(s) required to support SATA and SAS drives.

Expansion Slots

- 2 x FHFL x16 (Gen6 x16), for GPUs
- 1x FHHL x16 (Gen6 x16)
- 2x FHHL x8 (Gen6 x8)

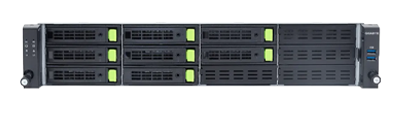

Front I/O

- 2x USB 3.2 Gen1 port (Type-A)
- 1x Power button with LED
- 1x ID button with LED
- 1x NMI button
- 1x Reset button
- 2x LAN activity LEDs
- 1x Storage activity LED
- 1x System status LED

Rear I/O

LAN Board:
- 2x RJ45 ports

DC-SCM:
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Mini-DP
- 1x Debug port (Type-C)
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x System status LED

Power Supply

- 2 x 3200 W 80 PLUS Titanium redundant power supplies*

*The system power supply requires C19 power cord.

Dimensions (WxHxD, mm)

- 2U
- 438 x 87.5 x 850

Documentation

Gigabyte R265-DG0 Server - Documentation

Gigabyte R265-DG0-AS1 Server Data Sheet
