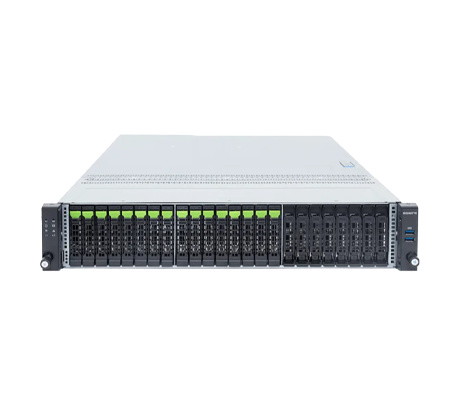

Gigabyte R265-DG2 Server

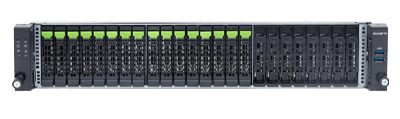

Offering 16x 2.5-inch Gen5 NVMe, SATA, SAS4 hot swap bays, the Gigabyte R265-DG2 Server can be used for standard networking applications or as a hybrid/private cloud server. It features a single AMD EPYC 9006 SP7 series CPU, and with a package power tracking (PPT) rating of up to 600W, which includes those with up to 256 physical cores and 512 virtual threads.

Overview

Gigabyte R265-DG2 Server - System Overview

Additional Information

The single AMD EPYC 9006 SP7 series processor providing compute for the Gigabyte R265-DG2 Server features 16-channel memory architecture and supports 16x DDR5 memory module slots. Registered DIMMs (RDIMM) and Multiplexed Rank DIMMs (MRDIMM) are supported and provide memory speeds of up to 8000MT/s and 12800MT/s, respectively. In addition to the upfront storage bays, the system has 2x internal PCIe Gen4 x2 slots for NVMe M.2 drives. Those M.2 drives can be used to support the operating system.

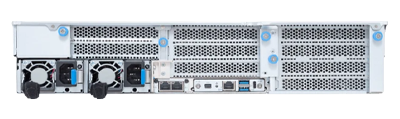

Gigabyte R265-DG2-AJ1 R265-DG2 rear panel
- Air-Cooled chassis

Powering the system are 2000W 80 PLUS Titanium power supply units (PSU). There are 3x PCIe Gen6 slots with 1x full-height, full-length x16 slot, and 2x full-height, half-length x8 slots. If you are installing SAS or SATA drives a PCIe storage card is required.

Available Configurations

Explore available configurations for the Gigabyte R265-DG2 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R265-DG2 Networking Hybrid/Private Cloud Server R265-DG2-AJ1

Specifications

Gigabyte R265-DG2 Server - Specifications

Processor

- AMD EPYC 9006 SP7 Server processors
- Single processor, PPT up to 600W
- 1x LGA 7536, Socket SP7
- Motherboard: MDG5-GU0
- Chipset: Integrated into SoC

Memory

- 16 x DIMM slots
- Support DDR5 RDIMM/MRDIMM*
- 16-Channel memory per processor

- RDIMM: Up to 8000 MT/s
- MRDIMM: Up to 12800 MT/s

*MRDIMMS are supported only on select CPU SKUs.

LAN

Rear (LAN board):
- 2x 1 Gb/s LAN (1x Intel I350-AM2)
- Support NCSI function

Rear (DC-SCM):
- 1x Management LAN

Storage

Front hot-swap:
- 16x 2.5" Gen5 NVMe/SATA/SAS4*

Internal M.2:
- 2x M.2 (2280/22110), PCIe Gen4 x2

*Storage card(s) required to support SATA and SAS drives.

Expansion Slots

- 1x FHFL x16 (Gen6 x16)
- 2x FHHL x8 (Gen6 x8)

Front I/O

- 2x USB 3.2 Gen1 port (Type-A)
- 1x Power button with LED
- 1x ID button with LED
- 1x NMI button
- 1x Reset button
- 2x LAN activity LEDs
- 1x Storage activity LED
- 1x System status LED

Rear I/O

LAN board:
- 2x RJ45 ports

DC-SCM:
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Mini-DP
- 1x Debug port (Type-C)
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x System status LED

Power Supply

- 2x 2000W 80 PLUS Titanium redundant power supplies

Dimensions (WxHxD, mm)

- 2U
- 438 x 87.5 x 850

Documentation

Gigabyte R265-DG2 Server - Documentation

Gigabyte R265-DG2-AJ1 Server Data Sheet
