Additional InformationWith an AMD EPYC 9006 SP7 processor, the Gigabyte R265-DG3-AS1 can support RDIMM speeds of up to 8000MT/s or MRDIMMs at up to 12800MT/s. There are 20x E3.S Gen6 NVMe hot-swap bays on the front of the system. In addition, two PCIe Gen4 x2 slots on the system board can be used for additional fast storage or to boot the operating system without using the upfront storage devices. This platform is used for storage, networking and as a hybrid/private cloud server, and powering the system are dual 3200W 80 Plus titanium power supply units.

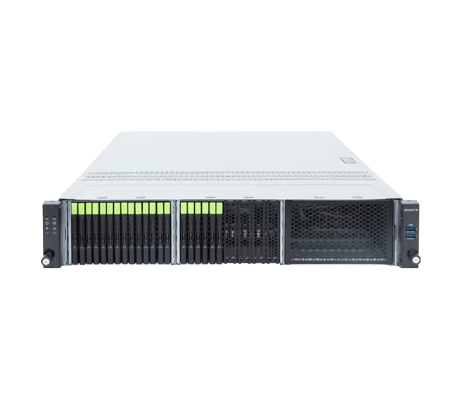

Gigabyte R265-DG3-AS1
- Air Cooled System
The system offers dual 1GbE LAN ports for basic network communications, along with a dedicated management LAN port for remote management of the system. There is also a single PCIe Gen6 x16 full-height, full-length slot for faster NICs or a storage controller. That dedicated MLAN port on the rear of the chassis is for remote management of the system, via a Datacenter Secure Control Module or DC-SCM. The DC-SCM houses the AST2700 microprocessor and is a separate modular circuit board defined by the Open Compute Project (OCP) that houses the management controller, security root-of-trust, and management ports away from the main server board.
Explore available configurations for the Gigabyte R265-DG3 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- AMD EPYC 9006 SP7 Server processors
- Single processor, PPT up to 600W
- 1x LGA 7536, Socket SP7
- Motherboard: MDG5-GU0
- Chipset: Integrated into SoC
- 16x DIMM slots
- Support DDR5 RDIMM/MRDIMM*
- 16-Channel memory per processor
- RDIMM: Up to 8000 MT/s
- MRDIMM: Up to 12800 MT/s
*MRDIMMs are supported only on select CPU SKUs.

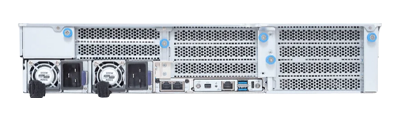

Rear (LAN board):
- 2x 1 Gb/s LAN (1 x Intel I350-AM2)
- Support NCSI function
Rear (DC-SCM):
- 1x Management LAN

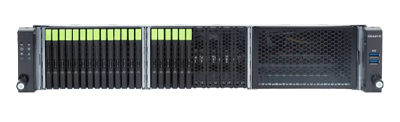

Front hot-swap:
- 20x E3.S Gen6 NVMe
Internal M.2:
- 2x M.2 (2280/22110), PCIe Gen4 x2
PCIe Cable:
- 1x FHFL x16 (Gen6 x16)
- 2x USB 3.2 Gen1 port (Type-A)
- 1x Power button with LED
- 1x ID button with LED
- 1x NMI button
- 1x Reset button
- 2x LAN activity LEDs
- 1x Storage activity LED
- 1x System status LED
LAN board:
- 2x RJ45 ports
DC-SCM:
- 2x USB 3.2 Gen1 ports (Type-A)
- 1x Mini-DP
- 1x Debug port (Type-C)
- 1x MLAN port
- 1x Power button with LED
- 1x ID button with LED
- 1x System status LED
- 2 x 3200 W 80 PLUS Titanium redundant power supplies*
*The system power supply requires C19 power cord.
- 2U
- 438 x 87.5 x 850
