Gigabyte R283-S90 Server

Dual 4th generation Intel Xeon Scalable processors and Intel Xeon CPU Max series processors are supported on the 2U Gigabyte R283-S90 Server. Offering 6 revisions, there are differences in the type of storage supported and the number of PCIe 5.0 expansion slots available. All revisions support 32x Registered DIMMs (RDIMM) and Intel Optane Persistent Memory 300 series (PMem) for a maximum capacity of up to 8TB of memory. Each system also supports dual 1GbE plus 2x PCIe 5.0 x16 mezzanine slots for OCP 3.0 cards. Powering the systems are dual 2000W PLUS Titanium 1+1 redundant PSUs.
Configure

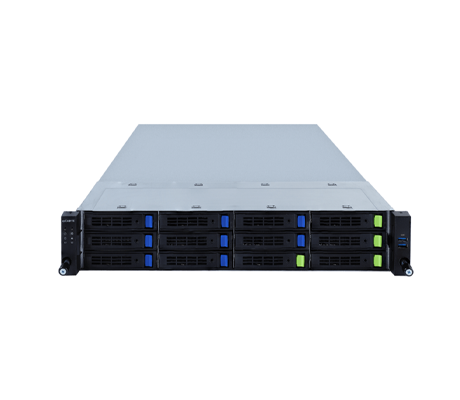

Gigabyte R283-S90 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R283-S90 Server - System Overview

Optimal for networking applications, the R293-S90 has 6x different revisions supporting different storage options along with slight variations for PCIe expansion slots based on the risers that are installed.

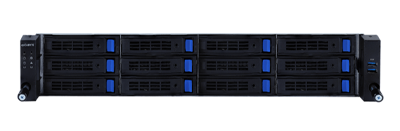

Gigabyte R283-S90 Server (rev. AAE1):

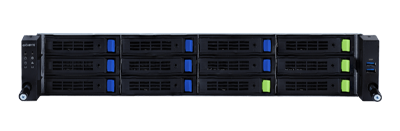

Gigabyte R283-S90 Server (rev. AAE2):

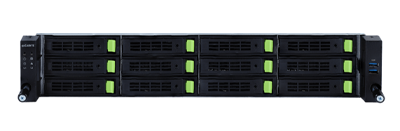

Gigabyte R283-S90 Server (rev. AAE3):

Gigabyte R283-S90 Server (rev. AAJ1):

Gigabyte R283-S90 Server (rev. AAJ2):

Gigabyte R283-S90 Server (rev. AAJ3):
Gigabyte R283-S90 server (rev.AAE1)Gigabyte R283-S90 server (rev.AAE2)Gigabyte R283-S90 server (rev.AAE3)

Gigabyte R283-S90 Server - Specifications

Processor - Dual-Sockets

  • 4th Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • CPU TDP up to 350W
  • 2 x LGA 4677, Socket E
  • Intel® C741 Chipset

Memory

  • 32x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Drive Bays

    Gigabyte R283-S90 (rev. AAE1):
  • 12 x 3.5/2.5" Gen4 NVMe/SATA hot-swappable bays

    • Gigabyte R283-S90 (rev. AAE2):
  • 12 x 3.5/2.5" SATA hot-swappable bays

    • Gigabyte R283-S90 (rev. AAE3):
  • 12 x 3.5/2.5" Gen4 NVMe/SATA hot-swappable bays

    • Gigabyte R283-S90 (rev. AAJ1):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA hot-swappable bays
  • 8 x 3.5/2.5" SATA hot-swappable bays
  • 2 x 2.5" SATA hot-swappable bays on rear side

    • Gigabyte R283-S90 (rev. AAJ2):
  • 12 x 3.5/2.5" SATA hot-swappable bays
  • 2 x 2.5" SATA hot-swappable bays on rear side

    • Gigabyte R283-S90 (rev. AAJ3):
  • 12 x 3.5/2.5" Gen4 NVMe/SATA hot-swappable bays
  • 2 x 2.5" SATA hot-swappable bays on rear side
    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 2000W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front Side Backplane P/N: 9CBP20C5NR-00
  • Rear Side Backplane P/N: 9CBP2022NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s on front side
  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s on rear side

Expansion Slots

    Gigabyte R283-S90 (rev. AAE1):
  • 6 x FHHL PCIe Gen5 x16 expansion slots
  • 2 x LP PCIe Gen5 x8 expansion slots

    • Gigabyte R283-S90 (rev. AAE2):
  • 6 x FHHL PCIe Gen5 x16 expansion slots
  • 2 x LP PCIe Gen5 x8 expansion slots

    • Gigabyte R283-S90 (rev. AAE3):
  • 5 x FHHL PCIe Gen5 x16 expansion slots

    • Gigabyte R283-S90 (rev. AAJ1):
  • 6 x FHHL PCIe Gen5 x16 expansion slots
  • 2 x LP PCIe Gen5 x8 expansion slots

    • Gigabyte R283-S90 (rev. AAJ2):
  • 6 x FHHL PCIe Gen5 x16 expansion slots
  • 2 x LP PCIe Gen5 x8 expansion slots

    • Gigabyte R283-S90 (rev. AAJ3):
  • 5 x FHHL PCIe Gen5 x16 expansion slots


  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • (1 x from CPU_0 and 1 x from CPU_1)
  • Supported NCSI function

Dimensions

    Height: 43.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")

Gigabyte R283-S90 Server - Documentation

Gigabyte R283-S90 Server User Manual Gigabyte R283-S90 Server OS Support List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide Gigabyte GSM Server Installation and Configuration Guide
