Gigabyte R283-S92 Server

This chassis features 24x Gen4 NVMe, SAS, SATA storage bays in front. With 8x revisions to the 2U Gigabyte R282-S92 Server, there are several options for storage configurations, although, a SAS card is required to enable SAS storage devices. Additional storage bays are located on the rear of the system. This platform offers dual 4th or 5th Generation Intel Xeon Scalable CPUs or Intel Xeon CPU Max series processors and supports up to 8TB of DDR5 Registered DIMMs (RDIMM) at capacity. Intel Optane Persistent Memory series 300 (PMem) are also supported. 4x full-height, full length PCIe 5.0 expansion slots provide options for network connectivity and drive controllers.
Configure

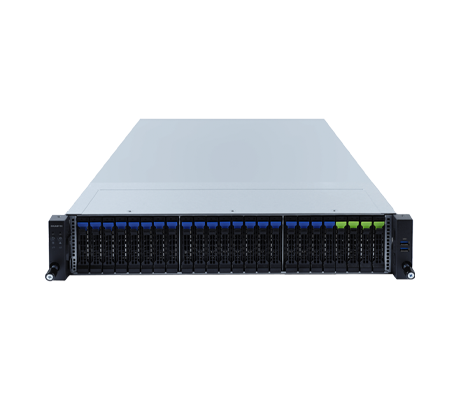

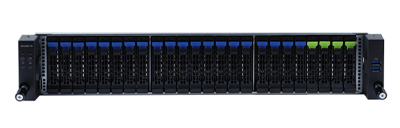

Gigabyte R283-S92 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R283-S92 Server - System Overview

Supporting a number of standard networking workloads, this system can be used as a shared VPN connection, general file server, for use as a virtual server, as a shared Internet connection, and for many other uses. Standard network connectivity is via integrated dual 1GbE. The system is powered by dual redundant 2000W 80PLUS Titanium PSUs. Each of the revisions offers different storage options as listed below.

Gigabyte R283-S92 server (rev.AAE1)

Gigabyte R283-S92 Server (Rev. AAE1)
Gigabyte R283-S92 server (rev.AAE2)
Gigabyte R283-S92 Server (Rev. AAE2)
Gigabyte R283-S92 server (rev.AAE3)
Gigabyte R283-S92 Server (Rev. AAE3)
Gigabyte R283-S92 server (rev.AAE4)
Gigabyte R283-S92 Server (Rev. AAE4)

Gigabyte R283-S92 Server (Rev. AAJ1)

Gigabyte R283-S92 Server (Rev. AAJ2)

Gigabyte R283-S92 Server (Rev. AAJ3)

Gigabyte R283-S92 Server (Rev. AAJ4)

Gigabyte R283-S92 Server - Specifications

Processor - Dual-Sockets

  • 5th Generation Intel® Xeon® Scalable Processors
  • 4th Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • CPU TDP up to 350W
  • 2 x LGA 4677, Socket E
  • Intel® C741 Chipset

Memory

  • 32x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Drive Bays

    Gigabyte R283-S92 (Rev. AAE1)
  • 12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 12 x 2.5" Gen4 NVMe hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side

    • Gigabyte R283-S92 (Rev. AAE2)
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 12 x 2.5" Gen4 NVMe hot-swappable bays
  • 8 x 2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side

    • Gigabyte R283-S92 (Rev. AAE3)
  • 8 x 2.5" Gen4 NVMe hot-swappable bays
  • 16 x 2.5" SATA/SAS hot-swappable bays

    • Gigabyte R283-S92 (Rev. AAE4)
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 20 x 2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on rear side
  • Broadcom SAS35x36R expander
  • Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port

    • Gigabyte R283-S92 (Rev. AAJ1)
  • 12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 12 x 2.5" Gen4 NVMe hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side

    • Gigabyte R283-S92 (Rev. AAJ2)
  • 4 x 2.5" Gen4 NVMe/SATA hot-swappable bays
  • 12 x 2.5" Gen4 NVMe hot-swappable bays
  • 8 x 2.5" SATA hot-swappable bays
  • 4 x 2.5" SATA hot-swappable bays on rear side

    • Gigabyte R283-S92 (Rev. AAJ3)
  • 8 x 2.5" Gen4 NVMe hot-swappable bays
  • 16 x 2.5" SATA/SAS hot-swappable bays

    • Gigabyte R283-S92 (Rev. AAJ4)
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 20 x 2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on rear side
  • Broadcom SAS35x36R expander
  • Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 2000W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front Side Backplane P/N: 9CBP20O7NR-00
  • Rear Side Backplane P/N: 9CBP2022NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s on front side
  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s on rear side

Expansion Slots

    Riser Card CRS101J:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

    • Riser Card CRS101K:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1

    • Riser Card CRS202E:
  • 2 x Low profile half length slots with PCIe x16 (Gen5 x8 bus), from CPU_0

    • Riser Card CRS202G:
  • 2 x PCIe x16 slots (Gen5 x16), FHHL from CPU_0*
  • NOTE: Slot_10 would be downgraded to Gen4 if using XCC CPU with 4 x UPI

    • Riser Card CRS202H:
  • 2 x PCIe x16 slots (Gen5 x16), FHHL from CPU_1


  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • (1 x from CPU_0 and 1 x from CPU_1)
  • Supported NCSI function

Dimensions

    Height: 43.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")
