Gigabyte R283-S93 Server

Designed for standard networking applications, the Gigabyte R283-S93 Server can be allocated for use as a general file server, shared Internet connection, use as a VPN server and can perform a multitude of other tasks. At full capacity, it can support up to 8TB of DDR5 memory modules with either dual 4th or 5th generation Intel Xeon Scalable processors or using dual Intel Xeon CPU Max series CPUs with a TDP up to 350W. There are 6x PCIe 5.0 slots with 4x x16 slots and 2x x8 slots. Two PCIe Gen5 mezzanine card slots can support OCP 3.0 mezzanine cards and the system features 2x integrated 1GbE ports via Intel® I350-AM2 and a management port.
Configure

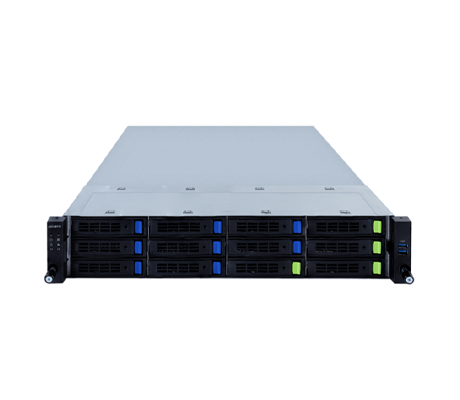

Gigabyte R283-S93 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R283-S93 Server - System Overview

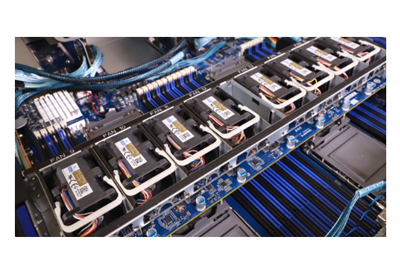

Gigabyte R283-S93 server fans

There are two revisions on the Gigabyte R283-S93. The only difference between these revisions is support for power supply units (PSU) with them supporting 240W and 2700W dual redundant PSUs respectively as outlines below.

Gigabyte R283-S93 server drive cages

Gigabyte R283-S93 Server (AAF1)
  • Dual 2400W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R283-S93 Server (AAL1)
  • Dual 2700W (240V) 80 PLUS Titanium redundant power supply

Available Configurations

Explore available configurations for the Gigabyte R283-S93 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R283-S93 Server - Specifications

Processor - Dual-Sockets

  • 5th Generation Intel® Xeon® Scalable Processors
  • 4th Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • CPU TDP up to 350W
  • 2 x LGA 4677, Socket E
  • Intel® C741 Chipset

Memory

  • 32x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Drive Bays

  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
    • *SAS card is required for SAS devices support

Power Supplies

    Gigabyte R283-S93 (AAF1)
  • Dual 2400W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R283-S93 (AAL1)
  • Dual 2700W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front Side Backplane P/N: 9CBP20C5NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s on front side

Expansion Slots

    Riser Card CRS101J:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

    • Riser Card CRS101K:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1

    • Riser Card CRS202E:
  • 2 x Low profile half length slots with PCIe x16 (Gen5 x8 bus), from CPU_0
  • 2 x Low profile half length slots with PCIe x16 (Gen5 x8 bus), from CPU_1

    • Riser Card CRS202G:
  • 1 x PCIe x16 slot (Gen5 x16), FHFL from CPU_0, for GPU

    • Riser Card CRS202H:
  • 1 x PCIe x16 slot (Gen5 x16), FHFL from CPU_1, for GPU


  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • (1 x from CPU_0 and 1 x from CPU_1)
  • Supported NCSI function

Dimensions

    Height: 43.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")

Gigabyte R283-S93 Server - Documentation

(Rev. AAF1) Data Sheet (Rev. AAL1) Data Sheet Gigabyte R283-S93 Server User Manual Gigabyte R283-S93 Server OS Support List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide Gigabyte GSM Server Installation and Configuration Guide
