Gigabyte R283-S94 Server

Sporting dual 4th or 5th generation Intel Xeon Scalable or Intel Xeon CPU Max series processors, the Gigabyte R283-S94 Server is designed for a variety of networking tasks. With 8x memory channels to work with and 32x DDR5 DIMM slots on the system board, it can support up to 8TB of memory. 12x hot-swappable 3.5-inch storage bays on the front of the system can be outfitted with Gen4 NVMe, SAS LITE, or SATA drive formats for storage flexibility. Two more SATA/SAS bays are in back. There are 4x full-height, half-length PCIe Gen5 x16 slots plus 2x x16 mezzanine card slots for hosting OCP 3.0 cards.

Overview

Gigabyte R283-S94 Server - System Overview

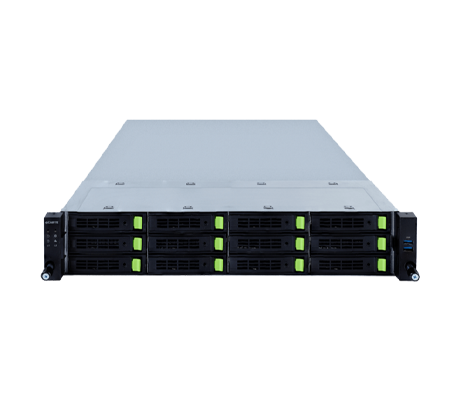

Gigabyte R283-S94 server (rev.AAC1) front

There are two versions of the Gigabyte R283-S94 server with Rev. AAC1 supporting SATA or SAS up front, while Rev. AAD1 also supports Gen4 NVMe storage devices in addition to SATA and SAS drive formats. For both, a SAS card is required for support of SAS devices. PSUs are also different as outlined below.

Gigabyte R283-S94 server (rev.AAD1) front

Gigabyte R283-S94 Server (Rev. AAC1)

12 x 3.5/2.5" SATA/SAS hot-swappable bays
2 x 2.5" SATA/SAS hot-swappable bays on rear side
Dual 1300W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R283-S94 Server (Rev. AAD1)

12 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
2 x 2.5" SATA/SAS hot-swappable bays on rear side
Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Specifications

Gigabyte R283-S94 Server - Specifications

Processor - Dual-Sockets

5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
CPU TDP up to 350W
2 x LGA 4677, Socket E
Intel® C741 Chipset

Memory

32x DIMM slots
DDR5 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Drive Bays

12 x 3.5/2.5" SATA/SAS hot-swappable bays
2 x 2.5" SATA/SAS hot-swappable bays on rear side

12 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
2 x 2.5" SATA/SAS hot-swappable bays on rear side

Power Supplies

Dual 1300W (240V) 80 PLUS Platinum redundant power supply

Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Fans

4 x 80x80x38mm (18,300rpm)

I/O

1 x TPM Header
2 x OCP 3.0 mezzanine slots

Front I/O

1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LED
1 x HDD activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane I/O

Front Side Backplane P/N: 9CBP20C5NR-00
Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s on front side

Expansion Slots

1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1

1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1

2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
(1 x from CPU_0 and 1 x from CPU_1)
Supported NCSI function

Dimensions

Documentation

Gigabyte R283-S94 Server - Documentation

(Rev. AAC1) Data Sheet (Rev. AAD1) Data Sheet Gigabyte R283-S94 Server User Manual Gigabyte R283-S94 Server OS Support List Gigabyte R283-S94 Server Qualification Vender List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide Gigabyte GSM Server Installation and Configuration Guide
