Gigabyte R283-S95 Server

With up to 8TB of DDR5 memory at maximum capacity, the 2U Gigabyte R283-S95 Server is supremely suited for a variety of standard networking tasks. It features 24x 2.5-inch front drive bays that can be outfitted with Gen4 NVMe, SATA, and SAS drive formats, although SAS drives do require a discrete SAS card. Two more SATA hot-swap drive bays are found on the back of the system. For network communications, the R283-S95 server has dual integrated 1GbE ports via Intel® I350-AM2, plus 2x PCIe 5.0 x16 mezzanine slots for an OCP 3.0 card and 4x full-height, half-length PCIe Gen5 x16 expansion slots. This system is powered by dual 4th or 5th Generation Intel Xeon Scalable Processors.
Configure

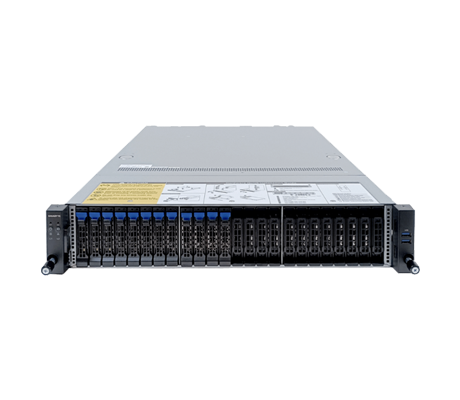

Gigabyte R283-S95 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R283-S95 Server - System Overview

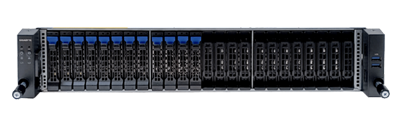

Gigabyte R283-S95 server (rev.AAC1)

Ideally suited for networking applications such as use as a file server or virtual server, it can also provide file access via VPN, host an Intranet, and provide for a shared Internet connection. This chassis comes in two separate revisions Rev. AAC1 and Rev. AAD1. As listed below, they offer slightly different storage and power supply options depending on your choice.

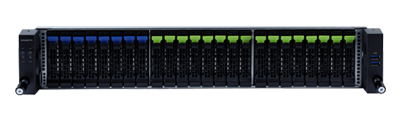

Gigabyte R283-S95 server (rev.AAD1)

Gigabyte R283-S95 Server (Rev. AAC1)
  • 12 x 2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on rear side
  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R283-S95 Server (Rev. AAD1)
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 12 x 2.5" Gen4 NVMe hot-swappable bays
  • 8 x 2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on rear side
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Available Configurations

Explore available configurations for the Gigabyte R283-S95 Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R283-S95 Server - Specifications

Processor - Dual-Sockets

  • 5th Generation Intel® Xeon® Scalable Processors
  • 4th Generation Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • CPU TDP up to 350W
  • 2 x LGA 4677, Socket E
  • Intel® C741 Chipset

Memory

  • 32x DIMM slots
  • DDR5 memory supported only
  • 8-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Drive Bays

    Gigabyte R283-S95 (Rev. AAC1)
  • 12 x 2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on rear side

    • Gigabyte R283-S95 (Rev. AAD1)
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 12 x 2.5" Gen4 NVMe hot-swappable bays
  • 8 x 2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on rear side
    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 1300W (240V) 80 PLUS Platinum redundant power supply
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 1 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front Side Backplane P/N: 9CBP20O7NR-00
  • Rear Side Backplane P/N: 9CBP2022NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s on front side
  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s on rear side

Expansion Slots

    Riser Card CRS101J:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

    • Riser Card CRS101Q:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1

    • Riser Card CRS201A:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

    • Riser Card CRS201B:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1


  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • (1 x from CPU_0 and 1 x from CPU_1)
  • Supported NCSI function

Dimensions

    Height: 43.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")

Gigabyte R283-S95 Server - Documentation

(Rev. AAC1) Data Sheet (Rev. AAD1) Data Sheet Gigabyte R283-S95 Server User Manual Gigabyte R283-S95 Server OS Support List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide Gigabyte GSM Server Installation and Configuration Guide
