Gigabyte R283-S96 Server

For applications like Networking and use as a hybrid/private cloud server, the 2U Gigabyte R283-S96 Server delivers powerful compute with dual 5th or 4th generation Intel Xeon Scalable processors including the Intel Xeon CPU Max series. There are 12x hybrid drive bays up front that can be outfitted with gen5 NVMe, SATA and SA-4 drive types. 2x more 2.5-inch drive bays on the back of the chassis supports SATA or SAS-4 drives types and can be used for additional storage or to support the operating system.

Overview

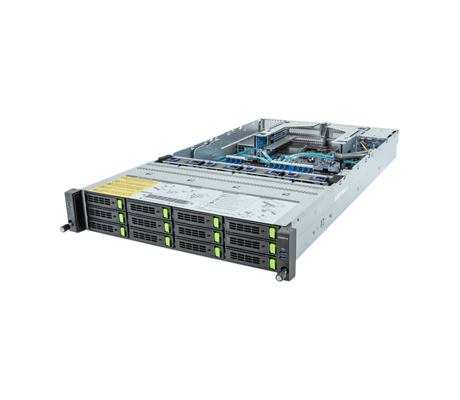

Gigabyte R283-S96 Server - System Overview

CPUs are limited to a thermal design power (TDP) rating of 350W, and deliver 8-channel memory architecture across 32x DDR5 memory module slots. Depending on the CPU generation, installed memory modules and memory configuration, memory speeds of up to 5600MT/s are supported. Up to 4x full-heigh, half-length PCIe 5.0 x16 slots on the Gigabyte R283-S96 Server provide options for additional network interface controllers or storage controllers. For SAS applications, a storage controller is required.

Other SKUs:

AAE1

Platinum PSUs

AAJ1

Titanium PSUs

For remote management of the system, Gigabyte provides two options, the Gigabyte Management Console and Gigabyte Server Management (GSM). Gigabyte Management Console comes pre-installed in the system and offers remote management through a graphical user interface (GUI) or command-line interface (CLI). GSM is for managing multiple clusters of servers, while the Gigabyte Management Console is designed to manage a single system or small cluster of servers. GSM can be downloaded and with the GSM Agent installed on each system, can consolidate health monitoring and management and complies with IPMI and Redfish standards.

Specifications

Gigabyte R283-S96 Server - Specifications

Processor - Dual Sockets

2x 5th Generation Intel Xeon Scalable CPUs
2x 5th Generation Intel Xeon Scalable CPUs
2x Intel Xeon CPU Max Series
TDP up to 350W
2x LGA 4677, Socket E
Motherboard: MS93-FS0
Chipset: Intel C741

Memory

32x DIMM slots
DDR5 memory supported
8-Channel memory per processor

5th Gen Intel Xeon:

RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

4th Gen Intel Xeon:

RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel Xeon Max Series:

RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Drive Bays

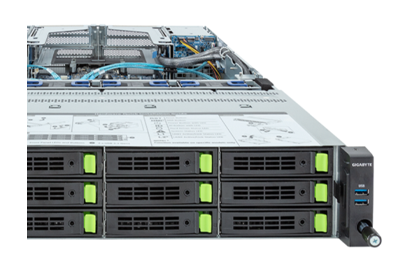

Front Hot-Swap:

12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4

Rear Hot-Swap:

2 x 2.5" SATA/SAS-4

Power Supplies

1+1 2000W 80 PLUS Titanium redundant power supplies

Fans

4 x 80x80x38mm (18,300rpm)

I/O

Front I/O

2 x USB 3.2 Gen1 (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LED
1 x Storage activity LED
1 x System status LED

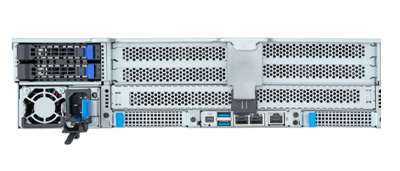

Rear I/O

G-SCM board - CDCR112:

2 x USB 3.2 Gen1 (Type-A)
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

Backplane Board

Speed and Bandwidth:

Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s

Expansion Slots

Riser Card CRS101J:

1 x FHHL x16 (Gen5 x16), from CPU_0

Riser Card CRS101K:

1 x FHHL x16 (Gen5 x16), from CPU_1

Riser Card CRS202G:

1 x FHHL x16 (Gen5 x16), from CPU_0

Riser Card CRS202H:

1 x FHHL x16 (Gen5 x16), from CPU_1

1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
Supports NCSI function

1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
Supports NCSI function

Dimensions

Documentation

Gigabyte R283-S96 Server - Documentation

Gigabyte R283-S96 Server AAE1 Data Sheet Gigabyte R283-S96 Server AAJ1 Data Sheet Gigabyte R283-S96 Server AAE1/AAJ1 User Manual Gigabyte Server Management Console User Guide Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation & Features Guide Gigabyte GSM Server Installation & Configuration Guide
