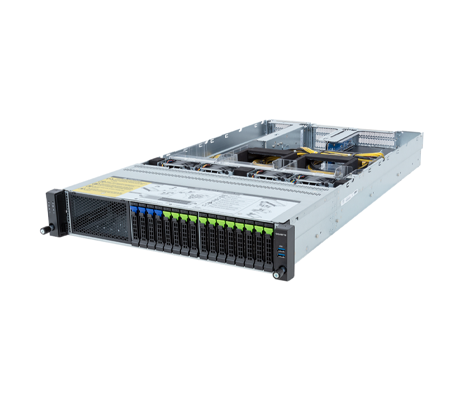

Featuring 4x dual slot Gen5 GPUs from either AMD, NVIDIA, XILINX, or Qualcomm, the Gigabyte R283-SF1 server is designed for artificial intelligence, high performance computing, and more. The system can support 2x 5th and 4th generation Intel Xeon Scalable processors, or the Intel Xeon CPU Max series. At capacity, up to 8TB of 3DS Registered DDR5 memory can be installed or up to 3TB of RAM using standard RDIMMs.
4th gen CPUs support up to 60 cores each and a maximum TDP of up to 350W with eventual support for 5th generation CPUs providing up to 64 physical cores and 128 virtual threads, each. It’s important to note that if only 1x CPU is installed, some PCIe and memory functions will not be available. With 8-channel DDR5 architecture available on each processor and 32x memory module slots, memory speed will vary depending on the CPU and memory configuration.

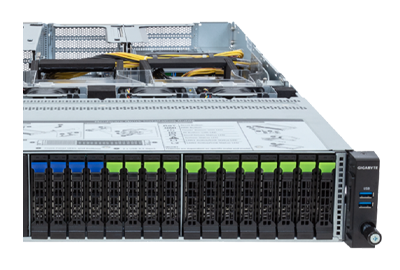

At only 2U, the Gigabyte R283-SF1 server offers a total of 16x SFF drive bays on the front panel. There are 12x 2.5” Gen5 NVMe, SAS4, or SATA hot-swap bays, plus 4x 2.5” SATA or SAS4 hot-swap bays. In addition to the 4x FHFL PCIe Gen5 x16 slots for GPUs, there is 1x FHHL PCIe Gen5 x16 slot and 1x OCP 3.0 Gen5 x16 slot for next generation add-on cards. Powering the system are dual 2700W redundant 80 PLUS Titanium PSUs. The GIGABYTE Management Console is pre-installed on every server and may be used for managing and maintaining a single server or a small cluster. For managing large clusters of servers, the Gigabyte Server Manager is compatible with both Windows and linux-based operating systems.
Gigabyte R283-SF1 Server - Specifications
Processor- 2 Sockets
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
CPU TDP up to 225W at ambient 30°C
LGA 4677, Socket E
*TDP supported up to 350W under limited thermal conditions.
Motherboard
MSF3-GP0
Memory
Memory Slots
32x DDR5 DIMM slots
8-Channel memory architecture
Memory Speed
5th Gen Intel® Xeon®: Up to *5600MHz (1DPC), 4400MHz (2DPC)
4th Gen Intel® Xeon®: Up to 4800MHz (1DPC), 4400MHz (2DPC)
Intel® Xeon® Max Series: Up to 4800MHz (1DPC), 4400MHz (2DPC)
DIMM Module Sizes
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Drive Bays
12 x 2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
4 x 2.5" SATA/SAS4 hot-swappable bays
(6 x NVMe from CPU_0, 6 x NVMe from CPU_1)
SAS card is required for SAS devices support
LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 @ 60Hz 32bpp, DDR4 SDRAM
Input / Output
Internal
1 x TPM header
1 x VROC Connector
Front
1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x System status LED
1 x Bay status LED
Rear
2 x USB 3.2 Gen1
1 x Mini-DP
1 x MLAN
1 x ID LED
Backplane
Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Expansion Slots
Riser Card CRS202P:
2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
Riser Card CRS202Q:
1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs
1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
Riser Card CRS201J:
1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function
Chassis
Enclosure
Height: 87.5 mm
Width: 438 mm
Depth: 815 mm
Power Supply
Dual 2700W 80 PLUS Titanium redundant power supply
System Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
