Gigabyte R283-Z90 Server

With dual 4th generation Intel Xeon Scalable processors, the Gigabyte R283-Z90 Server can provide up to 6TB of DDR5 3DS RDIMM memory modules across 24 DIMM slots. This platform features 12x 3.5-inch, hot-swappable Gen4 NVMe, SATA or SAS storage bays along the front with options for either a 2x or 4x 2.5-inch hot-swappable SAS, SATA drive cage in back, depending on the revision number. It also provides 3x slots on the system board for support of super-fast NVMe M.2 storage drives.
Configure

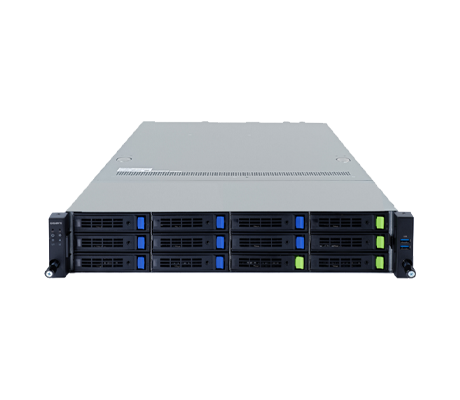

Gigabyte R283-Z90 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R283-Z90 Server - System Overview

Offering a 2U chassis, the R283-Z90 Server is designed for use as a shared Internet connection, general file server, for file access via VPN, use as a virtual server, and a number of other common networking applications. There are 3x different revisions available on this chassis, with changes to the type and number of drives supported and the number of drive bays available in the rear of the chassis. PCIe 5.0 expansion slots are also variable depending on the installed risers.



Gigabyte R283-Z90 Server (rev. AAD1):
  • 12 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side

Gigabyte R283-Z90 Server (rev. AAD2):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side

Gigabyte R283-Z90 Server (rev. AAD3):
  • 12 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on rear side

*With all revisions a SAS card is required for SAS devices support.

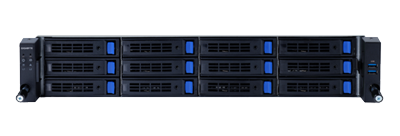

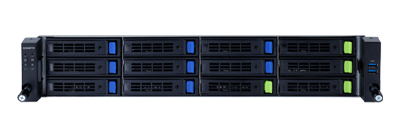

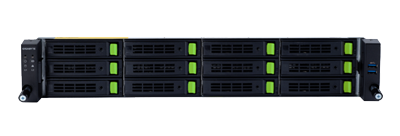

Gigabyte R283-Z90 server (rev.AAD2) front Gigabyte R283-Z90 server (rev.AAD3) front panel Gigabyte R283-Z90 server (rev.AAD1) front

Gigabyte R283-Z90 Server - Specifications

Processor - Dual-Sockets

  • AMD EPYC™ 9004 series processor family
  • Dual processors, 5nm technology
  • Up to 96-core, 192 threads per processor
  • cTDP up to 400W
  • 2 x LGA 6096, Socket SP5
  • System on Chip

Memory

  • 24x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

    Gigabyte R283-Z90 Server (rev. AAD1):
  • 12 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side

    • Gigabyte R283-Z90 Server (rev. AAD2):
  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side

    • Gigabyte R283-Z90 Server (rev. AAD3):
  • 12 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 2 x 2.5" SATA/SAS hot-swappable bays on rear side
    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 3 x M.2 slots
  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front Side Backplane P/N: 9CBP20C5NR-00
  • Rear Side Backplane P/N: 9CBP2022NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s on front side
  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s on rear side

Expansion Slots

    Riser Card CRS101T:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

    • Riser Card CRS101Q:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1

    • Riser Card CRS202M:

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0
  • 1 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • 1 x OCP 3.0 slot disabled (1 x from CPU_0 and 1 x from CPU_1)
  • Supported NCSI function

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4 from CPU_0
  • Supports 2280/22110 cards

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4 from CPU_1
  • Supports 2280/22110 cards

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x2 from CPU_1
  • Supports 2280/22110 cards

Dimensions

    Height: 87mm (3.42")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")

Gigabyte R283-Z90 Server - Documentation
