Gigabyte R283-Z92 Server

Outfitted with dual AMD EPYC 9004 series processors, the Gigabyte R283-Z92 Server has 24x 2.5-inch hot-swappable drive bays in front, an option for 4x 2.5-inch hot-swappable in back, and 3x internal PCIe Gen 3.0 slots for M.2 drives. At full capacity it can provide up to 6TB of DDR5 memory, operating at speeds of up to 4800MHz. It’s designed for standard networking applications like use as a file server, a virtual server appliance, a shared Internet connection and many other business critical workloads. Compatible with PCIe 5.0 it offers 2x x16 expansion slots and 2x OCP 3.0 Gen5 x16 mezzanine card slots.
Configure

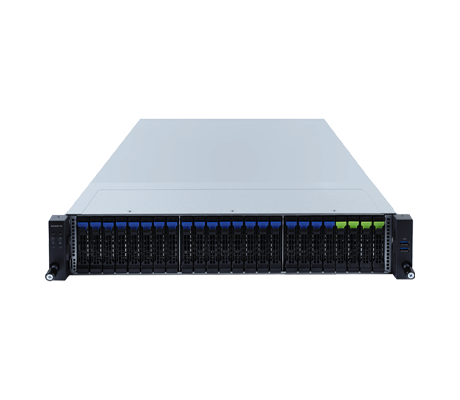

Gigabyte R283-Z92 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R283-Z92 Server - System Overview

There are 8x different revisions to this server configuration with the main differences centered around storage options. However, supported backplanes are also different in some cases to support NVMe drive formats. Additionally, Internal I/O headers may be different as well.

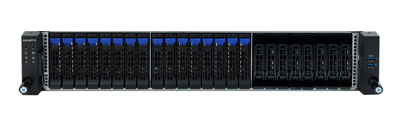

Gigabyte R283-Z92 server (rev.AAD1)

Gigabyte R283-Z92 Server (Rev. AAD1)

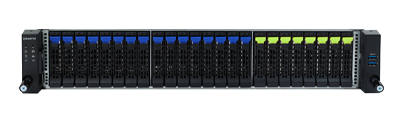

Gigabyte R283-Z92 server (rev.AAE1)
Gigabyte R283-Z92 Server (Rev. AAE1)

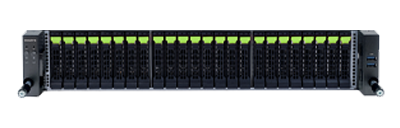

Gigabyte R283-Z92 server (rev.AAE2)
Gigabyte R283-Z92 Server (Rev. AAE2)

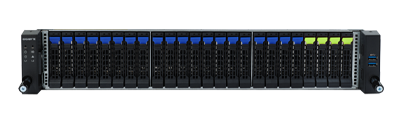

Gigabyte R283-Z92 server (rev.AAE3)
Gigabyte R283-Z92 Server (Rev. AAE3)

Gigabyte R283-Z92 Server (Rev. AAJ1)

Gigabyte R283-Z92 Server (Rev. AAJ2)
Gigabyte R283-Z92 server (rev.AAJ3)
Gigabyte R283-Z92 Server (Rev. AAJ3)

Gigabyte R283-Z92 Server (Rev. AAV1)

* For all configurations, a SAS card is required for SAS devices support.

Gigabyte R283-Z92 Server - Specifications

Processor - Dual-Sockets

  • AMD EPYC™ 9004 series processor family
  • Dual processors, 5nm technology
  • Up to 96-core, 192 threads per processor
  • cTDP up to 400W
  • 2 x LGA 6096, Socket SP5
  • System on Chip

Memory

  • 24x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

    Gigabyte R283-Z92 (Rev. AAD1)
  • 16 x 2.5" SATA/SAS hot-swappable bays
  • Dual 1600W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R283-Z92 (Rev. AAE1)
  • 12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 12 x 2.5" Gen4 NVMe hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side
  • Dual 2000W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R283-Z92 (Rev. AAE2)
  • 8 x 2.5" Gen4 NVMe hot-swappable bays
  • 16 x 2.5" SATA/SAS hot-swappable bays
  • Dual 2000W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R283-Z92 (Rev. AAE3)
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 20 x 2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side
  • Broadcom SAS35x36R expander
  • Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
  • All devices are connected to SAS expander
  • Dual 2000W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R283-Z92 (Rev. AAJ1)
  • 12 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 12 x 2.5" Gen4 NVMe hot-swappable bays
  • Rear: 4 x 2.5" SATA/SAS hot-swappable bays
  • Front side - CBP20O7: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
  • Rear side - CBP2022: SATA 6Gb/s or SAS 12Gb/s
  • 1+1 2000W (240V) 80 PLUS Titanium redundant power supplies
  • No M.2 slots

    • Gigabyte R283-Z92 (Rev. AAJ2)
  • 8 x 2.5" Gen4 NVMe hot-swappable bays
  • 16 x 2.5" SATA/SAS hot-swappable bays
  • 3 x M.2 slots
  • PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
  • 1+1 2000W (240V) 80 PLUS Titanium redundant power supplies

    • Gigabyte R283-Z92 (Rev. AAJ3)
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 20 x 2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side
  • Broadcom SAS35x36R expander
  • Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
  • All devices are connected to SAS expander
  • Dual 2000W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R283-Z92 (Rev. AAV1)
  • 16 x 2.5" SATA/SAS hot-swappable bays
  • 3 x M.2 slots
  • PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
  • Dual 1600W (240V) 80 PLUS Titanium redundant power supply

    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 2000W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 3 x M.2 slots
  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front Side Backplane P/N: 9CBP20O7NR-00
  • Rear Side Backplane P/N: 9CBP2022NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s on front side
  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s on rear side

Expansion Slots

    Riser Card CRS101T:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

    • Riser Card CRS101Q:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1

    • Riser Card CRS202M:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0
  • 1 x PCIe x16 slot (Gen5 x8), FHHL from CPU_0

    • Riser Card CRS202N:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1
  • 1 x PCIe x16 slot (Gen5 x8), FHHL from CPU_0


  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • (1 x from CPU_0 and 1 x from CPU_1)
  • Supported NCSI function

Dimensions

    Height: 87mm (3.42")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")

Gigabyte R283-Z92 Server - Documentation
