Gigabyte R283-Z93 Server

Featuring dual AMD EPYC 9004 series processors, the 2U Gigabyte R283-Z93 Server can deliver up to 6TB of DDR5 memory, plus PCIe 5.0 for improved performance with NVMe storage and I/O devices. This system has 12x color-coded 3.5-inch, hot-swappable storage bays up front that can support Gen4 NVMe in the trays with green tabs and SATA or SAS in the trays with blue tabs. 4x more SATA 2.5" hot-swappable drive bays are found on the rear of the chassis, plus a single M.2 slot on the system board. 4x PCIe 5.0 x16 expansion slots and 2x OCP mezzanine card slots provide options for network communications.
Configure

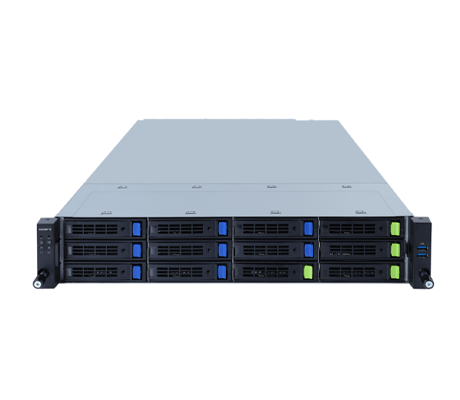

Gigabyte R283-Z93 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R283-Z93 Server - System Overview

Designed for networking applications, such as a shared Internet connection, virtual server, or use as a general file server, there are two versions of the Gigabyte R283-Z93 Server. The only difference between the two options, revision AAF1 and revision AAL1, is the power supply wattage and rating.



Gigabyte R283-Z93 Server (Rev. AAF1)
  • Dual 2400W (240V) 80 PLUS Platinum redundant power supply

Gigabyte R283-Z93 Server (Rev. AAL1)
  • Dual 2700W (240V) 80 PLUS Titanium redundant power supply

* For all configurations, a SAS card is required for SAS devices support.

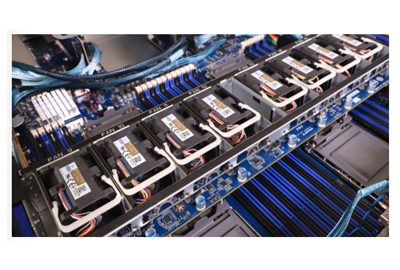

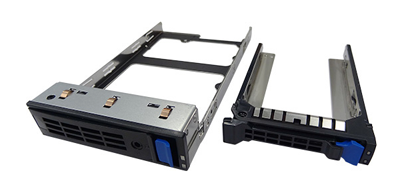

Gigabyte R283-Z93 server drive cages Gigabyte R283-Z93 server fans

Gigabyte R283-Z93 Server - Specifications

Processor - Dual-Sockets

  • AMD EPYC™ 9004 series processor family
  • Dual processors, 5nm technology
  • Up to 96-core, 192 threads per processor
  • Supports CPU 240W at ambient 30°C
  • 2 x LGA 6096, Socket SP5
  • Motherboard: MZ93-FS0
  • System on Chip

Memory

  • 24x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

  • 4 x 3.5/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 8 x 3.5/2.5" SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side
    • *SAS card is required for SAS devices support

Power Supplies

    Gigabyte R283-Z93 (Rev. AAF1)
  • Dual 2400W (240V) 80 PLUS Platinum redundant power supply

    • Gigabyte R283-Z93 (Rev. AAL1)
  • Dual 2700W (240V) 80 PLUS Titanium redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x TPM Header
  • 2 x OCP 3.0 mezzanine slots

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front Side Backplane P/N: 9CBP20C5NR-00
  • Rear Side Backplane P/N: 9CBP2022NR-00
  • Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s on front side
  • Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s on rear side

Expansion Slots

    Riser Card CRS101T:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0

    • Riser Card CRS101Q:
  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_1

    • Riser Card CRS201I:
  • 1 x PCIe x16 slot (Gen5 x16), FHFL from CPU_0, for GPU

    • Riser Card CRS2227:
  • 1 x PCIe x16 slot (Gen5 x16), FHFL from CPU_1, for GPU


  • 2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
  • (1 x from CPU_0 and 1 x from CPU_1)
  • Supported NCSI function

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4 from CPU_0
  • Supports 2280/22110 cards
  • Occupied by CRS2810. 6 x SATA ports

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4 from CPU_1
  • Supports 2280/22110 cards
  • Occupied by CRS2810. 6 x SATA ports

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x2 from CPU_1
  • Supports 2280/22110 cards
  • Occupied by CRS2810. 4 x SATA ports

Dimensions

    Height: 87mm (3.42")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")
