Gigabyte R283-Z96 Server

Providing 24x front Gen5 NVMe storage bays, the Gigabyte R283-Z96 Server is designed for networking applications. 4x more hot-swap SAS/SATA bays on the back of the system and 2x ultra-fast M.2 NVMe drives on the system board bump total supported storage up to 30x drives. Dual AMD EPYC 9004 or 9005 series CPUs with a Thermal Design Power rating of up to 400W deliver up to 192 cores, each. 9004 series processors support up to 6TB of DDR5 memory modules, plus PCIe Gen 5.0. A SAS card is required for support of SAS drive formats.
Configure

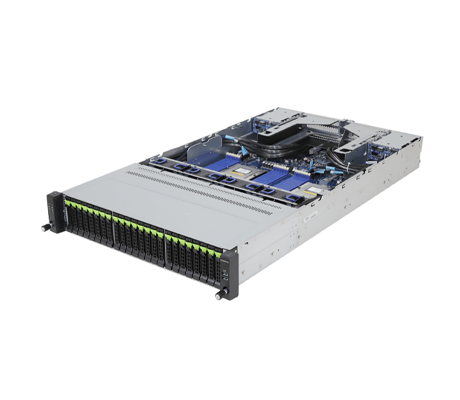

Gigabyte R283-Z96 Server front view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R283-Z96 Server - System Overview

The Gigabyte R283-Z96 Server performs standard networking duties such as use as a file server, hosting an Intranet, shared Internet access, and can be used as a virtual server. This is a highly scalable platform suitable for a number of diverse workloads.

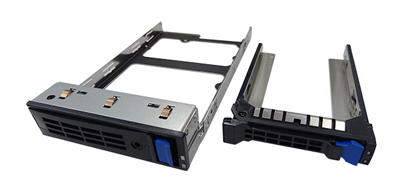

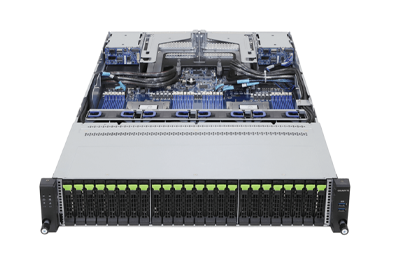

Gigabyte R283-Z96 server front Gigabyte R283-Z96 server drive cages

Gigabyte R283-Z96 Server - Specifications

Processor - Dual-Sockets

  • AMD EPYC 9005 series processor family
  • AMD EPYC 9004 series processor family
  • Dual processors, 4nm technology
  • Up to 192 cores, 384 threads per processor
  • cTDP up to 400W
  • 2 x LGA 6096, Socket SP5
  • Motherboard: MZ93-FS1
  • System on Chip

Memory

  • 24x DIMM slots
  • DDR5 memory supported only
  • 12-Channel memory per processor architecture
  • RDIMM modules up to 128GB supported
  • 3DS RDIMM modules up to 256GB supported
  • Memory speed: Up to 4800 MHz

Drive Bays

  • 24 x 2.5" Gen5 NVMe hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays on rear side
    • *SAS card is required for SAS devices support

Power Supplies

  • Dual 2000W (240V) 80 PLUS Platinum redundant power supply

Fans

  • 4 x 80x80x38mm (18,300rpm)

I/O

    Internal I/O

  • 1 x TPM Header

    • Front I/O

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LED
  • 1 x HDD activity LED
  • 1 x System status LED

    • Rear I/O

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID button with LED

    • Backplane I/O

  • Front Side Backplane P/N: 9CBP2081NR-00/ 9CBP20G0NR-00
  • Rear Side Backplane P/N: 9CBP2025NR-00
  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s on front side
  • Speed and bandwidth: SATA 6Gb/s

Expansion Slots

  • 1 x PCIe x16 slot (Gen5 x16), FHHL from CPU_0
  • 1 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU_0
  • Supported NCSI function

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4 from CPU_0
  • Supports 2280/22110 cards

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x4 from CPU_1
  • Supports 2280/22110 cards

    • 1 x M.2 slot:

  • M-Key
  • PCIe Gen3 x2 from CPU_1
  • Supports 2280/22110 cards
  • Occupied by CRS2810. 4 x SATA ports

Dimensions

    Height: 87.5mm (3.44")
    Width: 438mm (17.32")
    Depth: 815mm (34.52")

Gigabyte R283-Z96 Server - Documentation

Gigabyte R283-Z96 Server User Manual Gigabyte R283-Z96 Server Data Sheet Gigabyte R283-Z96 Server OS Support List Gigabyte Easy BIOS Refresh User Guide Gigabyte GSM Agent Installation and Features Guide Gigabyte Server Management Console User Guide Gigabyte GSM Server Installation and Configuration Guide
