Gigabyte R283-Z97 Rack Server

The Gigabyte R283-Z97 Rack Server is a 2U system designed for networking applications. It houses up to 2x AMD EPYC 9004 or 9005 Series Processors and 24x DDR5 DIMMs. It has a maximum memory configuration of 6TB. Storage solutions on the front of the system include 8x 3.5-inch NVMe/SATA/SAS4 drive bays with 4x 3.5-inch/2.5-inch SATA/SAS4 drive bays. 4x more 2.5-inch SATA/SAS4 hot-swappable drive bays are on the back of the chassis. 2x Gen5 dual slot GPU cards can be installed on this server, to extend application workload support.
Configure

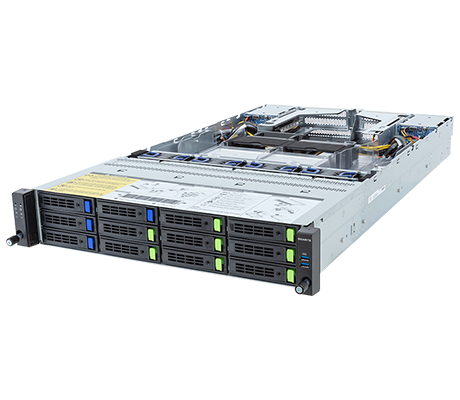

Gigabyte R283-Z97 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R283-Z97 Rack Server - System Overview

Additional Information

Gigabyte R283-Z97 front detail

Housed in a 2U chassis, the Gigabyte R283-Z97 is compatible with dual 4th or 5th Generation AMD EPYC Series processors with up to 192 cores each and a TDP of 240W. Each CPU socket is connected to 12x DDR5 DIMM slots for a total of 24x DIMM slots on the system board. Power is provided by dual redundant 2700W Titanium PSUs for rev. AAL1 or by 2400W PSUs for rev AAF1.

Gigabyte R283-Z97 detail top

System expansion is achieved 4x PCIe Gen5 x16 slots, two of which are reserved for GPU installation. The networking capabilities on the R283-Z97 include 2x 1GbE LAN ports as well as 1x 10/100/1000 management LAN port. Each CPU is connected to a single M.2 slot which is occupied by 6x SATA ports. To regulate the temperatures in the system, there are 4x 80mm fans in the chassis. Gigabyte offers a few management solutions including the pre-installed Gigabyte Management Console for managing a single server or small cluster and the Gigabyte Server Manager for multiple servers or large clusters.

Available Configurations

Explore available configurations for the Gigabyte R283-Z97 Rack Server. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Gigabyte R283-Z97 Rack Server - Specifications

Processor- 2 Sockets

  • AMD EPYC 9005 Series processors
  • AMD EPYC 9004 Series processors
  • Up to 192 cores, 384 threads per processor
  • TDP up to 240W at ambient 25°C

    • Socket:

  • 2 x LGA 6096

Motherboard

  • MZ93-FS1

Memory

    Memory Slots:

  • 24 x DIMM slots
  • 12-Channel memory architecture

    • Memory Type:

  • RDIMM
  • 3DS RDIMM

    • Memory Speed:

  • Up to 4800 MHz

    • DIMM Module Sizes:

  • RDIMM: Up to 96GB supported
  • 3DS RDIMM: Up to 256GB supported

Drive Bays

    Front:

  • 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
  • 4 x 3.5"/2.5" SATA/SAS4 hot-swappable bays

    • Rear:

  • 4 x 2.5" SATA/SAS4 hot-swappable bays, via CRS2810 from CPU_1
    • * Note: SAS card is required for SAS devices support

LAN

  • 2 x 1GbE LAN ports (1 x Intel I350-AM2)
  • 1 x Dedicated management port

    • Video

  • Integrated in Aspeed AST2500
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200 @ 60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal

  • 1 x TPM header
  • 2 x OCP 3.0 Gen5 x16 slots

    • Front:

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LEDs
  • 1 x HDD activity LED
  • 1 x System status LED

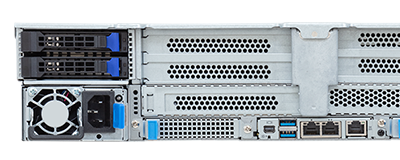

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 2 x RJ45
  • 1 x MLAN
  • 1 x ID LED

    • Backplane Board:

  • Front: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s
  • Rear: SATA 6Gb/s or SAS4 24Gb/s

    • TPM

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    PCIe Cable x 4:

  • 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0, for GPUs
  • 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1, for GPUs
  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

    • M.2:

  • 1 x M.2 (Per CPU)
  • PCIe Gen3 x2
  • Supports 2280/22110 cards

Chassis

    Enclosure

    Height: 87.5mm

    Width: 438mm

    Depth: 815mm

Power Supply

  • 1+1 2700W (240V) 80 PLUS Titanium redundant power supplies

System Management

  • Aspeed AST2600 management controller
  • GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
