Gigabyte R283-ZF0 Rack Server

Designed for high performance computing, the 2U Gigabyte R283-ZF0 Rack Server is designed for tasks such as AI inference and visual computing. The system board houses 2x LGA 6096 sockets that are compatible with AMD EPYC 9004 Series Processors, including those with 3D V-Cache technology. A total of 24x DIMM slots on the system board can provide up to 6TB of memory at capacity. The storage configuration on this system is 8x 3.5-inch or 2.5-inch Gen5 NVMe/SATA/SAS4 drive bays paired with 4x 3.5-inch or 2.5-inch SATA/SAS4 drive bays. 4x PCIe Gen5 x16 full-height, full-length expansion slots can be used to support up to 4x Gen5 GPUs.
Configure

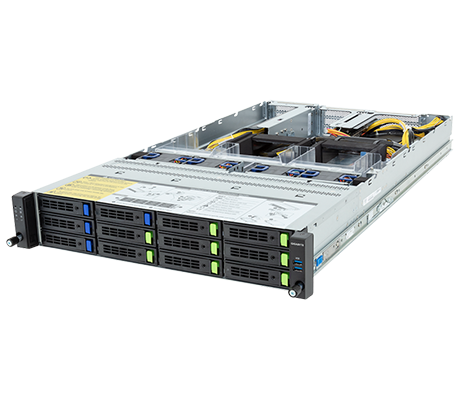

Gigabyte R283-ZF0 side view
Intel Partner Gold AMD Executive Elite System Builder
Configure

Gigabyte R283-ZF0 Rack Server - System Overview

Additional Information

Gigabyte R283-ZF0 front detail

In addition to the 4x PCIe Gen5 x16 slots for GPUs, there is a full-height, half-length slot and a OCP 3.0 mezzanine card slot for additional expansion options. Housed in a 2U chassis, the Gigabyte R283-ZF0 server can be populated with up to 2x AMD 4th Gen EPYC series processors with up to 128 physical cores and 256 virtual threads, per CPU. with 12x DDR5 DIMM slots per CPU, there are 24x DIMM slots total supporting memory speeds of up to 4800MT/s. To meet fast access storage needs or OS installation, there are 2x M.2 drive slots on the motherboard.

Gigabyte R283-ZF0 detail top

Powering this system are dual 2700W 80 PLUS Titanium power supplies in a redundant configuration. To keep temperatures regulated within the chassis, there are 4x 80mm fans and a single 40mm fan. A dedicated GbE management port on the back of the system can be used to manage the system remotely using Gigabytes proprietary management software or other third-party software suites that are IPMI 2.0 or Redfish compatible.

* A SAS drive support requires a discrete SAS controller.

Gigabyte R283-ZF0 Rack Server - Specifications

Processor - 2 Sockets

  • AMD EPYC 9004 series processors
  • Up to 128-core, 256 threads processor
  • cTDP up to 300W

    • Socket:

  • 2 x LGA 6096 / Socket SP5

Motherboard

  • MZF3-GP0

Memory

    Memory Slots

  • 24 x DIMM slots
  • 12-Channel memory architecture

    • Memory Type

  • RDIMM
  • 3DS RDIMM

    • Memory Speed

  • Up to 4800MHz

    • DIMM Module Sizes

  • RDIMM: Up to 96GB supported
  • 3DS RDIMM: Up to 256GB

Drive Bays

  • 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS4 hot-swappable bays
  • 4 x 3.5"/2.5" SATA/SAS4 hot-swappable bays
    • *Note: SAS card is required for SAS drive support

LAN

    Rear Side:

  • 1 x 10/100/1000 management LAN

    • Video

  • Integrated in Aspeed AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920 x 1200@60Hz 32bpp, DDR4 SDRAM

Input / Output

    Internal:

  • 1 x TPM header
  • 1 x OCP 3.0 slot

    • Front:

  • 2 x USB 3.2 Gen1
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x NMI button
  • 1 x Reset button
  • 2 x LAN activity LEDs (disabled)
  • 1 x Bay status LED
  • 1 x System status LED

    • Rear:

  • 2 x USB 3.2 Gen1
  • 1 x Mini-DP
  • 1 x MLAN
  • 1 x ID LED

    • Backplane:

  • Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS4 24Gb/s

    • TPM:

  • 1 x TPM header with SPI interface
  • Optional TPM2.0 kit: CTM010

Expansion Slots

    PCIe cable x 5::

  • 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_0, for GPUs
  • 2 x PCIe x16 (Gen5 x16) FHFL slots, from CPU_1, for GPUs
  • 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
  • 1 x OCP 3.0 slot, from CPU_0

    • M.2:

  • 2 x M.2
  • Supports 2280 cards

Chassis

    Height: 87.5mm

    Width: 438mm

    Depth: 815mm

Power Supply

  • 1+1 2700W (240V) 80 PLUS Titanium redundant power supplies

System Cooling

  • 1 x 40x40x28mm (34,000rpm)
  • 4 x 80x80x56mm (15,500rpm)

System Management

    Aspeed AST2600 management controller

    GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

Gigabyte R283-ZF0 Rack Server - Documentation

Gigabyte R283-ZF0 Rack Server User Manual Gigabyte Server Management Console User's Guide Gigabyte GSM Server Installation and Configuration Guide Gigabyte GSM Agent Installation and Features Guide
